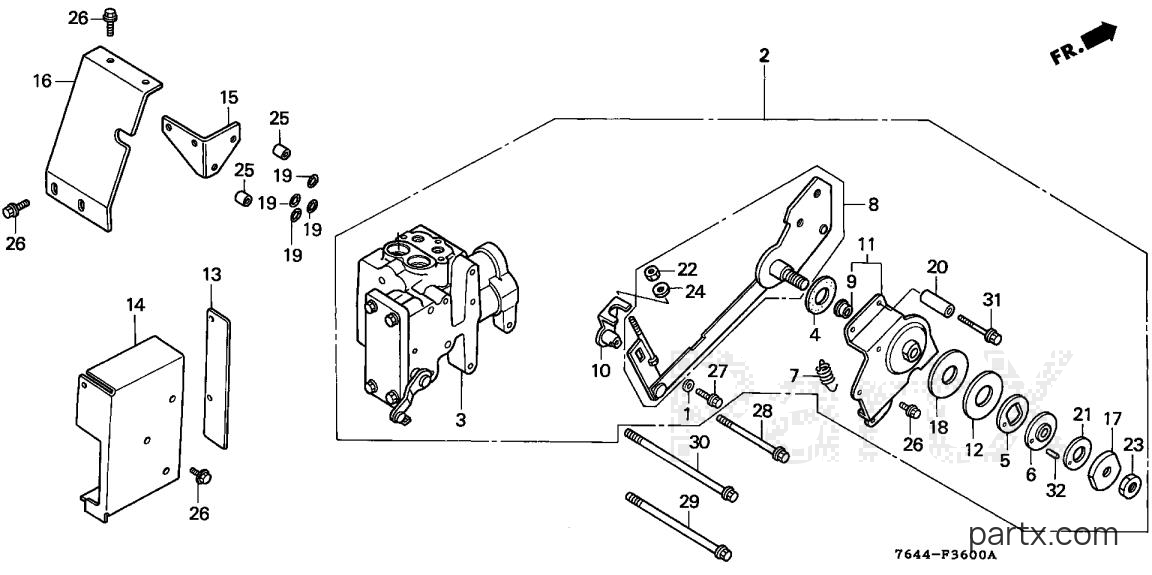

All Years Compact Tractor H - H6522 A4 POSITION CONTROL VALVE diagram
001
Required: 1
SPACER, HOSE CLAMP (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
VALVE ASSY., MECHANICAL POSITION CONTROL
N
Price unavailable
002
Required: 1
VALVE ASSY., MECHANICAL POSITION CONTROL
N
Price unavailable
002
Required: 1
VALVE ASSY., MECHANICAL POSITION CONTROL (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
VALVE ASSY., POSITION (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
WASHER, FRICTION (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
WASHER A, POSITION CONTROL ARM (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
WASHER B, POSITION CONTROL ARM (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
SPRING, POSITION CONTROL RETURN (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
LINK, POSITION CONTROL (NOT AVAILABLE)
N
Price unavailable
009
Honda
BUSH (14X10)57264-759-003
Required: 1
BUSH (14X10)
N
$6.29
You save $1.11
010
Required: 1
SUPPORT, POSITION CONTROL JOINT (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
BASE, POSITION CONTROL LINK (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
SPRING, CONED DISK (22MM) (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
PLATE A, POSITION CONTROL COVER (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
PLATE B, POSITION CONTROL COVER (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
BRACKET, LINK COVER (NOT AVAILABLE)
N
Price unavailable
016
Required: 1
COVER, LINK (NOT AVAILABLE)
N
Price unavailable
017
Required: 1
NUT (10MMX6) (NOT AVAILABLE)
N
Price unavailable
018
Honda
WASHER (22X45X0.8)90458-KE8-000
Required: 1
WASHER, THRUST (22X45X0.8) (NOT AVAILABLE)
N
$4.52
You save $0.80
019
Honda
O-RING (15.8X2.4)91301-YM1-000
Required: 4
O-RING (15.8X2.4)
N
$3.76
You save $0.66
020
Required: 1
COLLAR (6.1X13X28) (NOT AVAILABLE)
N
Price unavailable
021
Required: 1
WASHER, THRUST (16X30X1.5) (NOT AVAILABLE)
N
Price unavailable
022
Honda
NUT, HEX. (6MM)94002-06080-0S
Required: 1
NUT, HEX. (6MM)
N
$1.36
You save $0.24
023
Honda
NUT, HEX. (10MM)94002-10280-0S
Required: 1
NUT, HEX. (10MM)
N
$1.10
You save $0.20
024
Honda
WASHER, PLAIN (6MM)94103-06800
Required: 1
WASHER, PLAIN (6MM)
N
$0.82
You save $0.14
025
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
026
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 11
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
027
Honda
BOLT, FLANGE (6X20)95701-06020-08
Required: 1
BOLT, FLANGE (6X20)
N
$0.41
You save $0.07
028
Honda
BOLT, FLANGE (8X80)95701-08080-08
Required: 2
BOLT, FLANGE (8X80)
N
$2.99
You save $0.53
029
Honda
BOLT, FLANGE (8X120)95701-08120-08
Required: 1
BOLT, FLANGE (8X120)
N
$4.93
You save $0.87
030
Honda
BOLT, FLANGE (8X130)95701-08130-08
Required: 1
BOLT, FLANGE (8X130)
N
$3.28
You save $0.58
031
Honda
BOLT, FLANGE (6X40)95801-06040-08
Required: 1
BOLT, FLANGE (6X40)
N
$1.96
You save $0.35
032
Honda
ROLLER (2X8)96220-20080
Required: 1
ROLLER (2X8)
N
$3.30
You save $0.58
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
