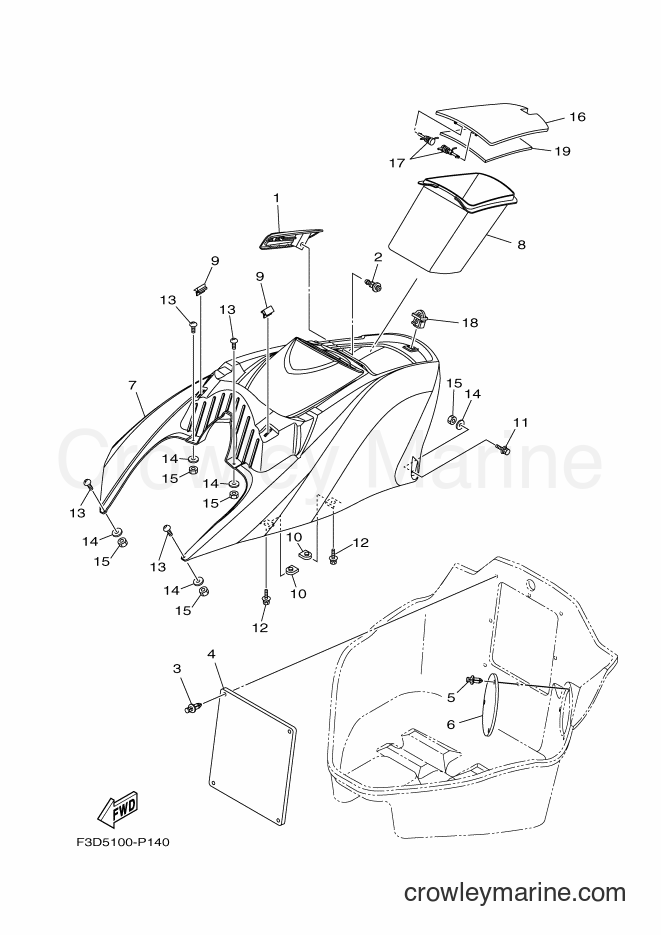

2017 WaveRunner VX700-S - VX700-S (F3D7) [010] ENGINE HATCH 1 diagram
$7.64
You save $1.35
$5.09
You save $0.90
3
Required: 4
RIVET
Price unavailable
4
Required: 1
COVER, INSPECTION 1
Price unavailable
5
Required: 3
RIVET
Price unavailable
6
Required: 1
COVER, INSPECTION 2
Price unavailable
7
Required: 1
COVER, ENGINE HATCH
Price unavailable
$106.24
You save $18.75

9
Yamaha Motors
PACKING 4F1K-U266C-10-00
Required: 2
PACKING 4
Supersedes: F1K-U266C-00-00
$4.24
You save $0.75
$10.62
You save $1.87

11
Yamaha Motors
90119-06803-0090119-06880-00
Required: 2
BOLT, WITH WASHER
$7.64
You save $1.35

12
Yamaha Motors
Bolt with Washer90119-06878-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06882-00
$7.64
You save $1.35
$2.59
You save $0.46

14
Yamaha Motors
Plain Washer92990-06200-00
Required: 6
WASHER, PLAIN
$0.85
You save $0.15

15
Yamaha Motors
Self-Locking Nut95720-06300-00
Required: 6
NUT, SELF-LOCKING
In stock
Only 3 remaining
$1.69
You save $0.30
$56.94
You save $10.05
$8.92
You save $1.57
$31.02
You save $5.47
19
Required: 1
PACKING CASE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors VX700-S (F3D7) [010] - ENGINE HATCH 1](https://cdn.crowleymarine.com/yamaha/Fk4haUwr.png)
