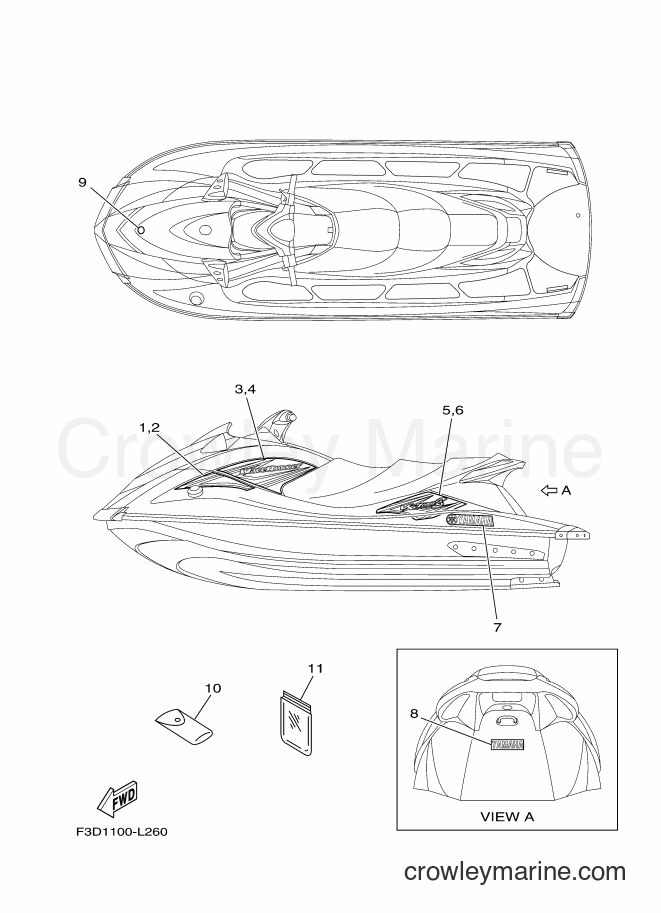

Yamaha Motors VX700-L (F3D1) [010] - GRAPHICS
Change View:
1
Required: 1
GRAPHIC 1 (LH)
Price unavailable
2
Required: 1
GRAPHIC 2 (RH)
Price unavailable
3
Required: 1
GRAPHIC 3 (LH)
Price unavailable
4
Required: 1
GRAPHIC 4 (RH)
Price unavailable
5
Required: 1
GRAPHIC 5 (LH)
Price unavailable
6
Required: 1
GRAPHIC 6 (RH)
Price unavailable
7
Required: 2
EMBLEM, YAMAHA
Price unavailable
8
Required: 1
MARK, YAMAHA A
Price unavailable
Tool Set
10
Yamaha Motors
Tool SetEU0-65986-10-00
Required: 1
TOOL SET
Supersedes: EU0-65986-00-00
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
VINYL BAG
11
Yamaha Motors
VINYL BAGEU0-65901-03-00
Required: 1
TOOL BAG
Supersedes: EU0-65901-01-00
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
