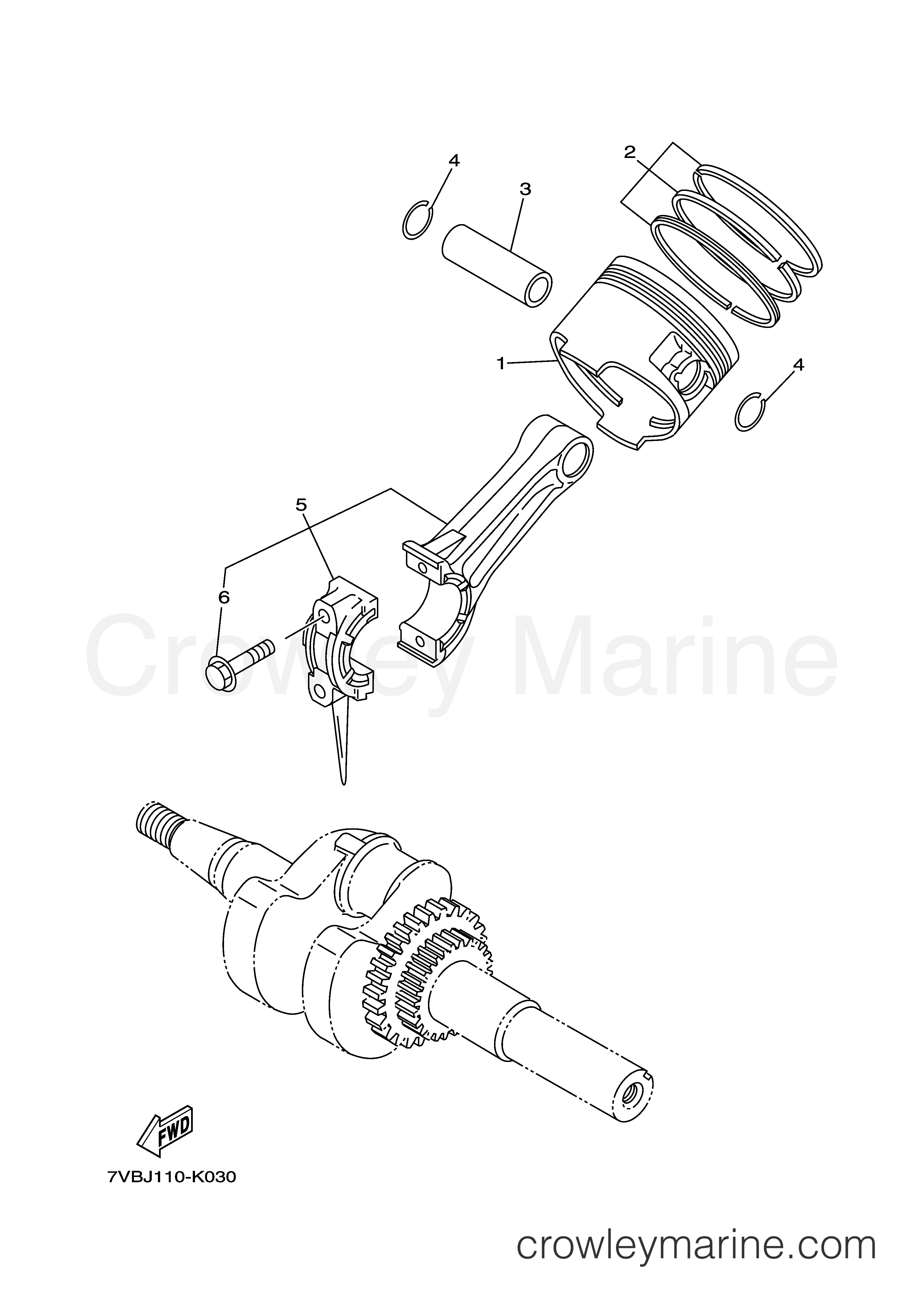

2012 UTV 250 - MZ250AAIA6 CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MZ250AAIA6 - CRANKSHAFT PISTON
Change View:
1
Required: 1
PISTON (STD)
Price unavailable
1
Required: 1
PISTON (0.50MM O/S)
Price unavailable
1
Required: 1
PISTON (0.25MM O/S)
Price unavailable
2
Required: 1
PISTON RING SET (STD)
Price unavailable
2
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
2
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
3
Required: 1
PIN, PISTON
Price unavailable
Circle Clip
4
Yamaha Motors
Circle Clip93450-20839-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
Connecting Rod Assembly
5
Yamaha Motors
Connecting Rod Assembly7VB-E1650-00-00
Required: 1
CONNECTING ROD ASSY
Cross Ship
Leaves in 2-5 days
$55.99
$47.59
You save $8.40
More details
Connecting Rod Bolt
6
Yamaha Motors
Connecting Rod Bolt7CT-E1654-00-00
Required: 2
.BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
