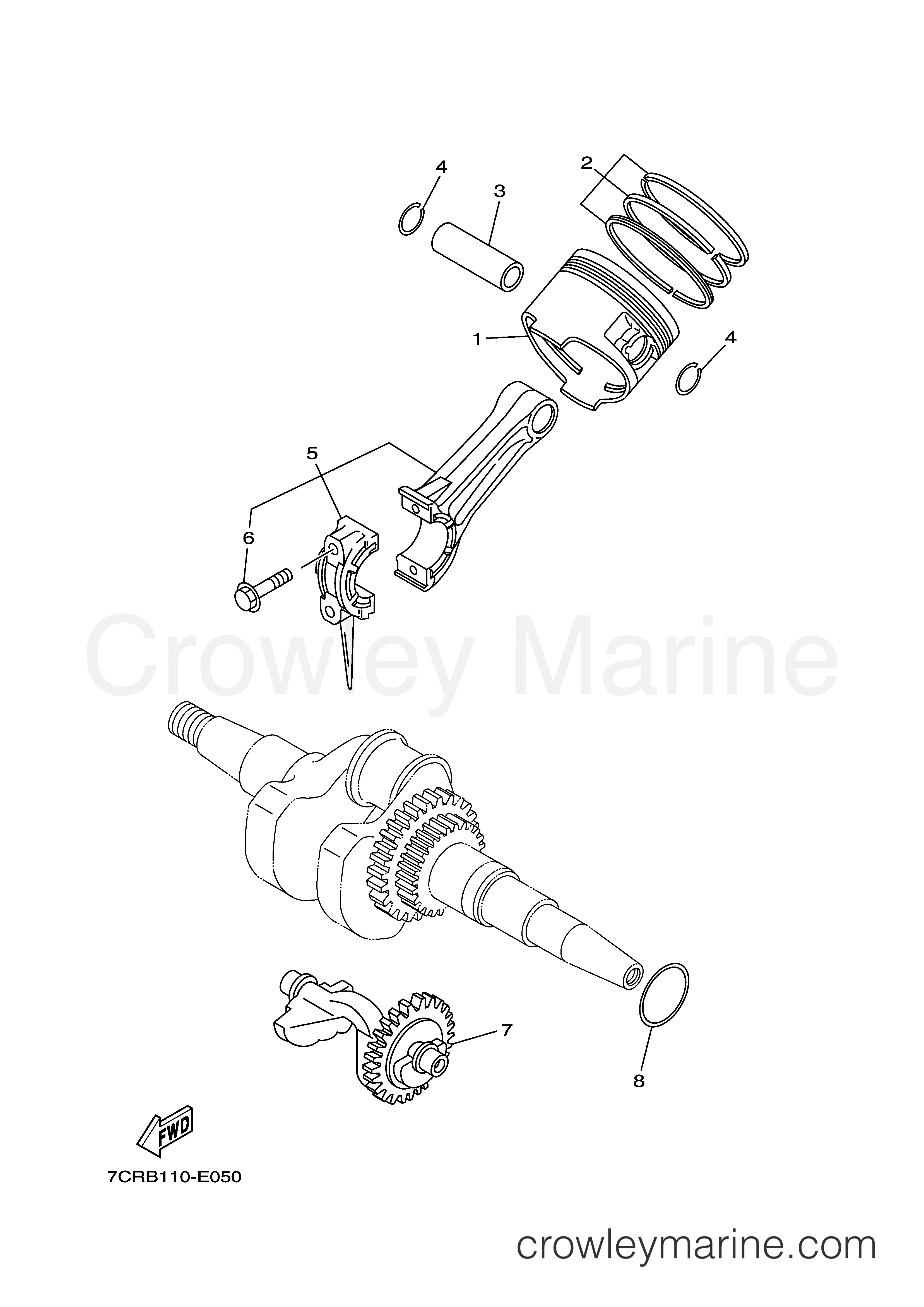

2005 UTV 360 - MZ360K2UPR CRANKSHAFT PISTON diagram
1
Yamaha Motors
Piston (0.25MM O/S)7CT-E1635-00-00
Required: 1
PISTON (0.25MM O/S)
Supersedes: 7RH-11635-00-00
$50.14
You save $8.85
1
Yamaha Motors
Piston (Standard)7CU-E1631-00-A0
Required: 1
PISTON (STD)
Supersedes: 7RH-11631-00-A0
In stock
Only 1 remaining
$51.84
You save $9.15
1
Yamaha Motors
Piston (0.50MM O/S)7CT-E1636-00-00
Required: 1
PISTON (0.50MM O/S)
Supersedes: 7RH-11636-00-00
$75.64
You save $13.35
2
Yamaha Motors
Piston Ring Set7RH-11604-00-00
Required: 1
PISTON RING SET (0.25MM O/S)
$42.49
You save $7.50
2
Yamaha Motors
Piston Ring Set (Standard)7RH-11603-00-00
Required: 1
PISTON RING SET (STD)
In stock
Only 1 remaining
$36.54
You save $6.45
2
Yamaha Motors
Piston Ring Set (0.50Mm O/S)7RH-11605-00-00
Required: 1
PISTON RING SET (0.50MM O/S)
$43.34
You save $7.65
$18.69
You save $3.30
$3.27
You save $0.58
5
Yamaha Motors
Connecting Rod Assembly7CT-E1650-00-00
Required: 1
CONNECTING ROD ASSY
Supersedes: JN6-11650-00-00
In stock
Only 1 remaining
$113.04
You save $19.95
6
Yamaha Motors
.BOLT, CONNECTING RODJN6-11654-00-00
Required: 2
.BOLT, CONNECTING ROD
$1.66
You save $0.29
7
Yamaha Motors
Weight7CT-E1454-00-00
Required: 1
WEIGHT 1
Supersedes: JN6-11454-10-00
In stock
Only 1 remaining
$144.49
You save $25.50
8
Yamaha Motors
Crank Shim7RK-11561-00-00
Required: 1
SHIM, CRANK 1 (0.1T)
$2.80
You save $0.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
