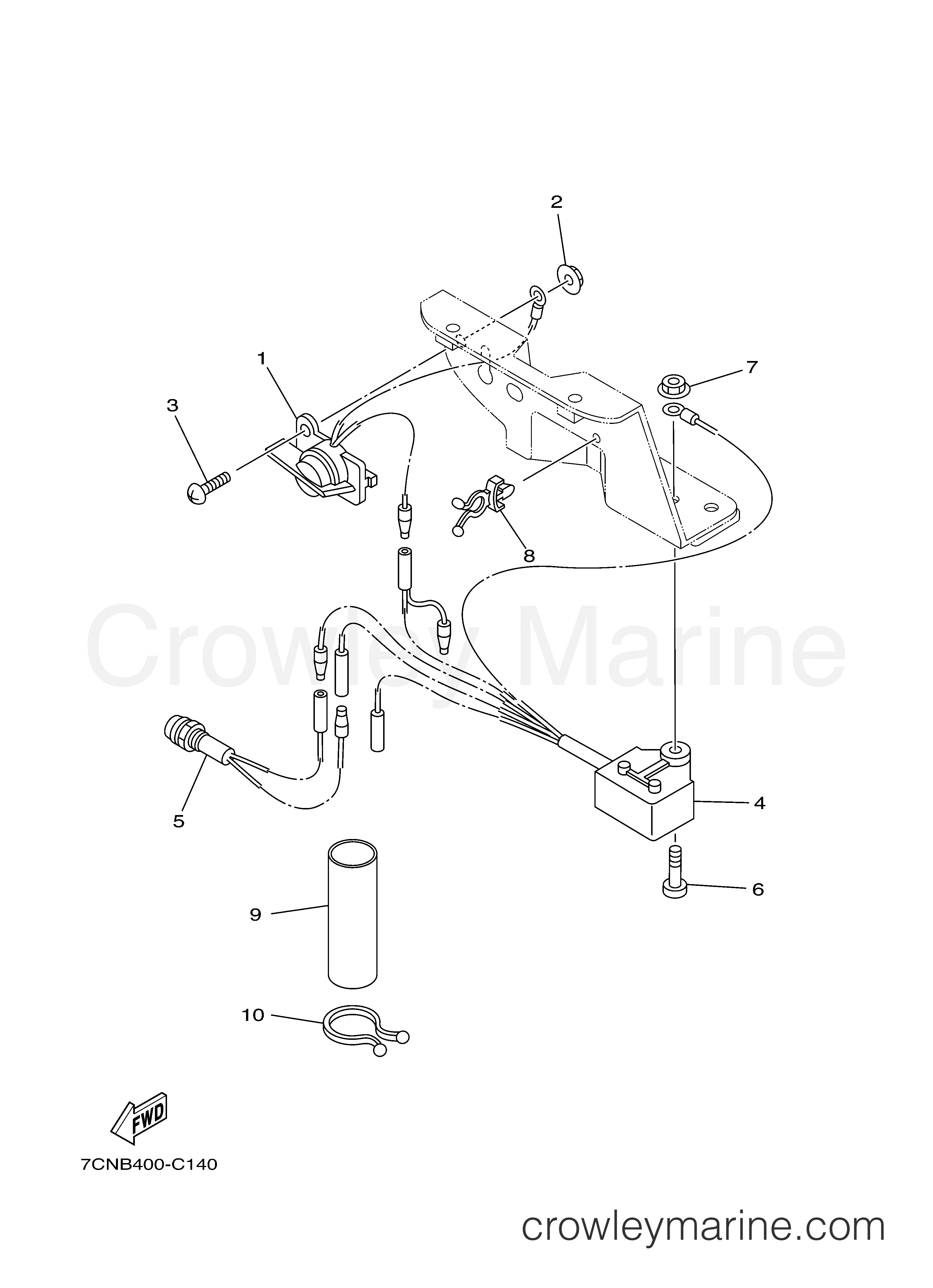

2004 UTV 175 - MZ175AAIA6 ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Engine Stop Switch Assembly7CN-H2550-00-00

Required: 1

ENGINE STOP SWITCH ASSY

In stock

Only 1 remaining

~~$17.99~~

$15.29

You save $2.70

More details

Yamaha Motors

Flange Nut95780-06500-00

Required: 1

NUT, FLANGE

Supersedes: 95704-06500-00

In stock

Only 2 remaining

~~$2.95~~

$2.51

You save $0.44

More details

Required: 1

SCREW, PAN HEAD

Price unavailable

Yamaha Motors

Oil Warning Unit7CN-H5690-01-00

Required: 1

OIL WARNING UNIT

Supersedes: 7CN-H5690-00-00

In stock

Only 1 remaining

~~$182.99~~

$155.54

You save $27.45

More details

Yamaha Motors

Oil Pilot Light Assembly7CA-H5770-01-00

Required: 1

OIL PILOT LIGHT ASSY

In stock

Only 1 remaining

~~$37.99~~

$32.29

You save $5.70

More details

Yamaha Motors

98580-06020-0092501-06020-00

Required: 1

SCREW, PAN HEAD

Supersedes: 98502-06020-00

~~$2.30~~

$1.96

You save $0.35

More details

Yamaha Motors

Flange Nut95780-06500-00

Required: 1

NUT, FLANGE

Supersedes: 95704-06500-00

In stock

Only 2 remaining

~~$2.95~~

$2.51

You save $0.44

CLAMP

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

Connecter Cover7CN-H2599-00-00

Required: 1

COVER, CONNECTER

~~$4.65~~

$3.95

You save $0.70

CLAMP

~~$2.20~~

$1.87

You save $0.33

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2004 UTV 175 - MZ175AAIA6 ELECTRICAL diagram
