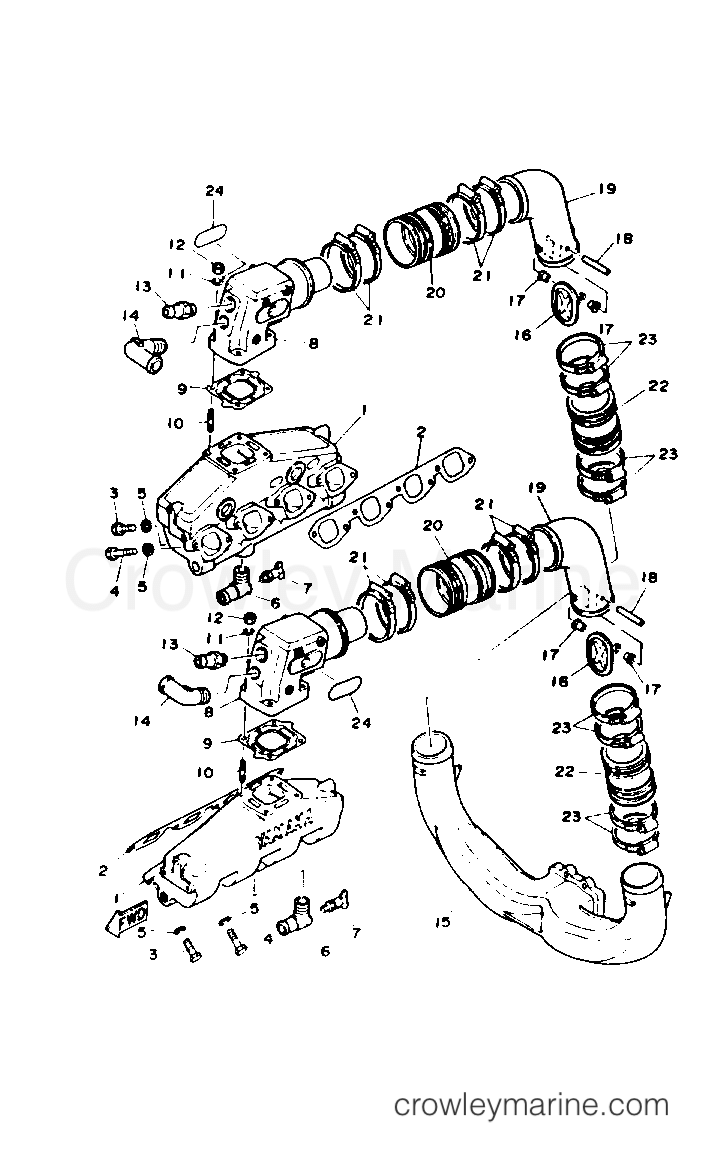

1992 Stern Drive V8 - V8_7.4_ENGINE_EST EXHAUST SYSTEM diagram

1
Yamaha Motors
MANIFOLD, EXHAUST (7.4L)YSC-22191-10-0C
Required: 2
MANIFOLD, EXHAUST (7.4L)
$580.54
You save $102.45

2
Yamaha Motors
GASKET, EXHAUST MANIFOLD (7.4L)YSC-22190-00-0C
Required: 2
GASKET, EXHAUST MANIFOLD (7.4L)
$27.19
You save $4.80

3
Yamaha Motors
Hexagon Bolt (3/8-16X1-1/2")YSC-90305-15-0C
Required: 8
BOLT, HEXAGON (3/8-16X1-1/2")
$3.74
You save $0.66

4
Yamaha Motors
Hexagon Bolt (3/8-16X1-1/4")YSC-90305-12-5C
Required: 8
BOLT, HEXAGON (3/8-16X1-1/4")
$3.02
You save $0.53

5
Yamaha Motors
LOCK WASHER (3/8")YSC-93300-00-0C
Required: 16
WASHER, LOCK (3/8")
$2.63
You save $0.47

6
Yamaha Motors
Elbow Assembly (Exhaust Manifold)YSC-22191-50-0C
Required: 2
ELBOW, EXHAUST MANIFOLD
$25.49
You save $4.50

7
Yamaha Motors
EXHAUST MANIFOLD DRAIN COCKYSC-10201-50-0C
Required: 2
DRAIN COCK, EXHAUST MANIFOLD
$12.32
You save $2.17

8
Yamaha Motors
Elbow Assembly (Exhaust Mixing)YSC-22191-20-0C
Required: 2
ELBOW, EXHAUST MIXING
$326.39
You save $57.60

9
Yamaha Motors
Exhaust Mixing Elbow (Ysc-10192-00-0C) Gasket6T9-14643-00-00
Required: 2
GASKET, EXHAUST MIXING ELBOW (YSC-10192-00-0C)
In stock
Only 2 remaining
$57.79
You save $10.20

10
Yamaha Motors
STUD (3/8-1/6X1.80"")YSC-22192-70-0C
Required: 8
STUD (3/8-1/6X1.80")
$1.83
You save $0.32

11
Yamaha Motors
LOCK WASHER (3/8")YSC-93300-00-0C
Required: 8
WASHER, LOCK (3/8")
$2.63
You save $0.47
$2.46
You save $0.44

13
Yamaha Motors
Elbow Assembly (Exhaust Mixing)YSC-10191-60-0C
Required: 2
ELBOW, EXHAUST MIXING
$25.49
You save $4.50

14
Yamaha Motors
Exhaust Mixing AdaptorYSC-10191-70-0C
Required: 2
ADAPTER, EXHAUST MIXING
$16.14
You save $2.85

15
Yamaha Motors
Exhaust Collector PipeYSC-22191-40-0C
Required: 1
PIPE, EXHAUST COLLECTER
$684.24
You save $120.75

16
Yamaha Motors
Water Shut Valve6T9-14673-00-00
Required: 2
VALVE, WATER SHUT
$26.34
You save $4.65

17
Yamaha Motors
Water Shutter Grommet6T0-14664-00-00
Required: 4
GROMMET, WATER SHUTTER
In stock
Only 5 remaining
$0.98
You save $0.17
$13.59
You save $2.40

19
Yamaha Motors
Elbow Assembly (Exhaust)YSC-22191-30-0C
Required: 2
ELBOW, EXHAUST INTERMEDIATE
$147.04
You save $25.95

20
Yamaha Motors
Obsolete Yamaha PartYSC-10192-20-AC
Required: 2
HOSE, EXHAUST CONNECTING (4")
Supersedes: YSC-10192-20-0C
$30.59
You save $5.40

21
Yamaha Motors
Hose CLAMP #72YSC-10201-70-0C
Required: 8
CLAMP, HOSE (#72)
$5.94
You save $1.05

22
Yamaha Motors
HOSE, EXHAUST (3.5"")YSC-22192-30-0C
Required: 2
HOSE, EXHAUST (3.5")
$22.09
You save $3.90
$7.22
You save $1.27

24
Yamaha Motors
Emblem (Side 1)6T9-42688-00-00
Required: 2
EMBLEM, SIDE 1
$14.02
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
