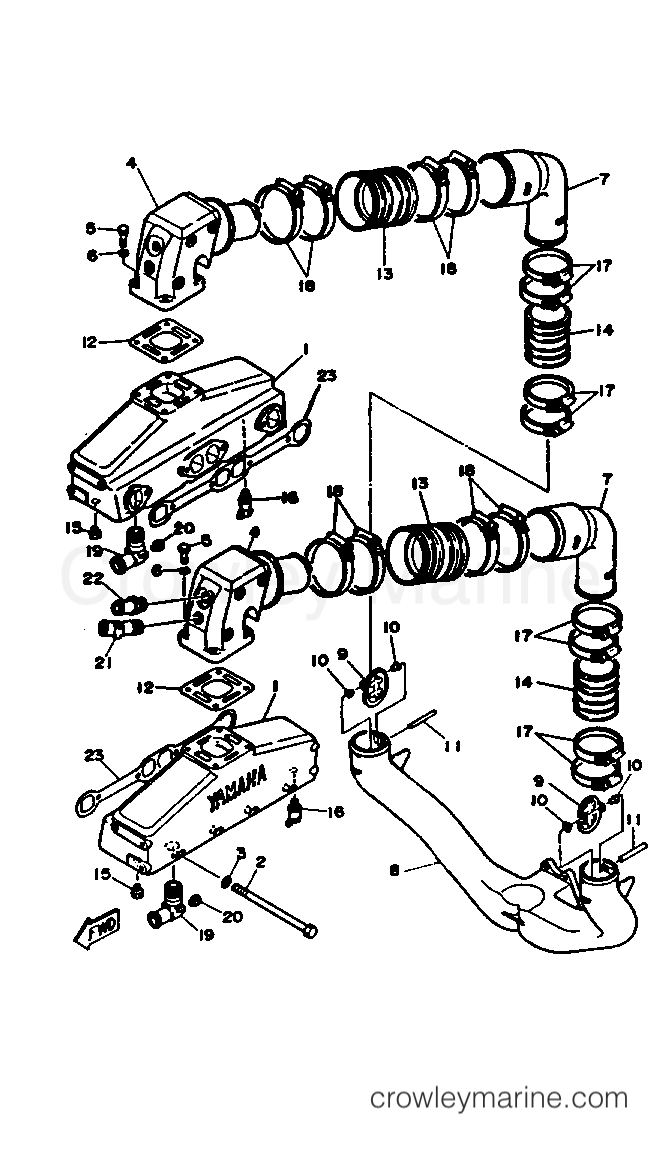

1990 Stern Drive V8 - V8_5.0_ENGINE_EST EXHAUST SYSTEM diagram

1
Yamaha Motors
Exhaust ManifoldYSC-10191-10-0C
Required: 2
MANIFOLD, EXHAUST
$1942.24
You save $342.75

2
Yamaha Motors
Hexagon Bolt (3/8-16X5-1/2")YSC-90305-55-0C
Required: 8
BOLT, HEXAGON (3/8-16X5-1/2")
$3.70
You save $0.65

3
Yamaha Motors
LOCK WASHER (3/8")YSC-93300-00-0C
Required: 8
WASHER, LOCK (3/8")
$2.63
You save $0.47

4
Yamaha Motors
Elbow Assembly (Exhaust Mixing)YSC-10191-20-0C
Required: 2
ELBOW, EXHAUST MIXING
$404.59
You save $71.40

5
Yamaha Motors
Hexagon Bolt (3/8-16X1-1/4")YSC-90305-12-5C
Required: 8
BOLT, HEXAGON (3/8-16X1-1/4")
$3.02
You save $0.53

6
Yamaha Motors
LOCK WASHER (3/8")YSC-93300-00-0C
Required: 8
WASHER, LOCK (3/8")
$2.63
You save $0.47

7
Yamaha Motors
Elbow Assembly (Exhaust)YSC-10191-30-0C
Required: 2
ELBOW, EXHAUST INTERMEDIATE
$135.14
You save $23.85

8
Yamaha Motors
Exhaust PipeYSC-10191-41-0C
Required: 1
PIPE, EXHAUST
$667.24
You save $117.75

9
Yamaha Motors
Water Shutter6T0-14673-00-00
Required: 2
SHUTTER, WATER
In stock
Only 2 remaining
$26.18
You save $4.62
-50%

10
Yamaha Motors
Water Shutter Grommet6T0-14664-00-00
Required: 4
GROMMET, WATER SHUTTER
In stock
Only 5 remaining
$0.58
You save $0.58

11
Yamaha Motors
Water Shutter Shaft6T0-14745-00-00
Required: 2
SHAFT, WATER SHUTTER
In stock
Only 2 remaining
$5.35
You save $0.95

12
Yamaha Motors
Gasket6T9-14643-00-0C
Required: 2
GASKET, EXHAUST MIXING ELBOW (YSC-10192-00-0C)
No longer availableSearch Nationwide Inventory
Price unavailable

13
Yamaha Motors
Obsolete Yamaha PartYSC-10192-20-AC
Required: 2
HOSE, EXHAUST CONNECTING (4")
Supersedes: YSC-10192-20-0C
$30.59
You save $5.40

14
Yamaha Motors
Obsolete Yamaha PartYSC-10192-30-AC
Required: 2
HOSE, EXHAUST CONNECTING (3")
Supersedes: YSC-10192-30-0C
$16.99
You save $3.00

15
Yamaha Motors
Hexagon Plug (1/4-18" NPT Brass)YSC-10200-00-0C
Required: 2
PLUG, HEXAGON (1/4-18" NPT BRASS)
$3.36
You save $0.59

16
Yamaha Motors
EXHAUST MANIFOLD DRAIN COCKYSC-10201-50-0C
Required: 2
DRAIN COCK, EXHAUST MANIFOLD
$12.32
You save $2.17

17
Yamaha Motors
Hose CLAMP #52YSC-10201-60-0C
Required: 8
CLAMP, HOSE (#52)
$5.94
You save $1.05

18
Yamaha Motors
Hose CLAMP #72YSC-10201-70-0C
Required: 8
CLAMP, HOSE (#72)
$5.94
You save $1.05

19
Yamaha Motors
Elbow Assembly (Exhaust Water Inlet)YSC-10191-50-AC
Required: 2
ELBOW, EXHAUST WATER INLET
$32.29
You save $5.70

20
Yamaha Motors
Hexagon Plug (1/4-18" NPT Brass)YSC-10200-00-0C
Required: 2
PLUG, HEXAGON (1/4-18" NPT BRASS)
$3.36
You save $0.59

21
Yamaha Motors
Elbow Assembly (Exhaust Mixing)YSC-10191-60-0C
Required: 2
ELBOW, EXHAUST MIXING
$25.49
You save $4.50

22
Yamaha Motors
Exhaust Mixing AdaptorYSC-10191-70-0C
Required: 2
ADAPTER, EXHAUST MIXING
$16.14
You save $2.85

23
Yamaha Motors
Exhaust Manifold GasketYSC-10190-00-0C
Required: 2
GASKET, EXHAUST MANIFOLD MOUNTING
$8.49
You save $1.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
