All diagrams for this model

2019 Snowmobile VK540F - VK540F (8KX6) [020] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

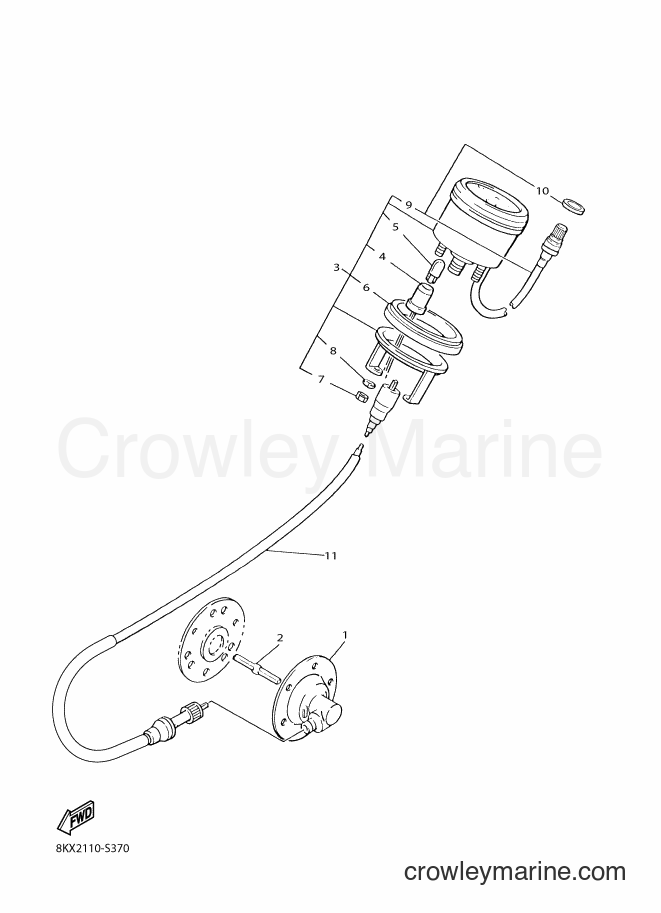

Yamaha Motors VK540F (8KX6) [020] - METER
Change View:
Meter Gear Housing - COMPLETE
1
Yamaha Motors
Meter Gear Housing - COMPLETE8JD-47700-00-00
Required: 1
METER GEAR HOUSING COMP.
Cross Ship
Leaves in 2-5 days
$118.99
$101.14
You save $17.85
More details
3
Required: 1
SPEEDOMETER ASSY (KM/H)
Price unavailable
Socket Cord Assembly
4
Yamaha Motors
Socket Cord Assembly5E2-83509-20-00
Required: 1
. SOCKET, METER
Supersedes: 8V7-83536-40-00
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
4G1-84744-00-XX
5
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
. BULB (12V-3.4W T10)
Supersedes: 4R0-83517-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
DAMPER 2
6
Yamaha Motors
DAMPER 28G6-83523-00-00
Required: 1
. DAMPER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
TRIP METER CABLE ASSEMBLY
9
Yamaha Motors
TRIP METER CABLE ASSEMBLY8K1-83603-01-00
Required: 1
. TRIP METER CABLE ASSY
Cross Ship
Leaves in 2-5 days
$75.99
$64.59
You save $11.40
More details
Nut
10
Yamaha Motors
Nut8K1-8366W-00-00
Required: 1
. . NUT
Cross Ship
Leaves in 2-5 days
$23.99
$20.39
You save $3.60
More details
Tachometer Cable Assembly
11
Yamaha Motors
Tachometer Cable Assembly8H4-83560-10-00
Required: 1
TACHOMETER CABLE ASSY
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
