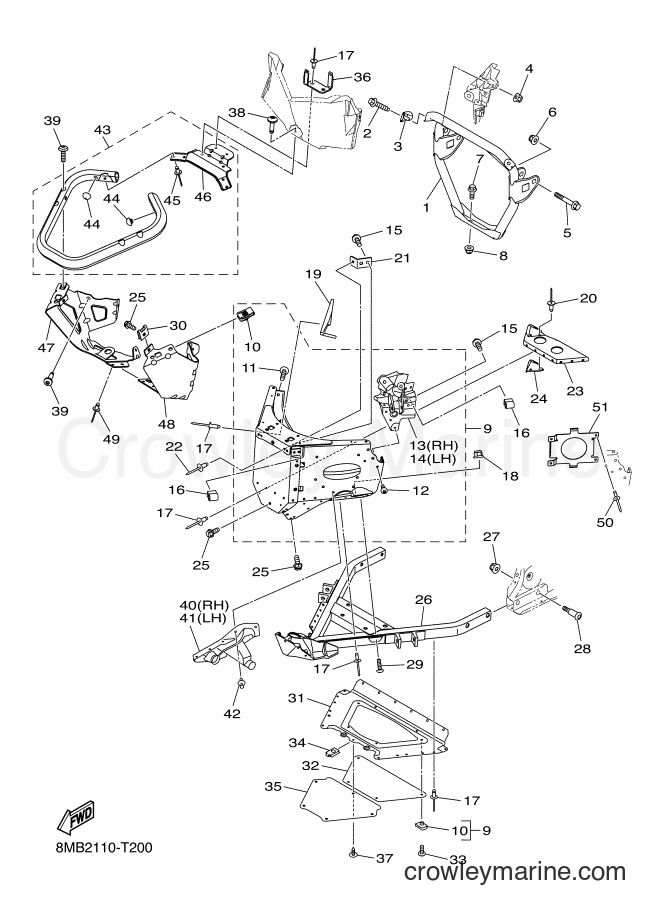

2018 Snowmobile SRS10LD - SRS10LD (8MB2) [010] FRAME 1 diagram

1
Yamaha Motors
ENGINE BRACKET8JP-F194E-20-00
Required: 1
BRACKET, ENGINE
Supersedes: 8JP-F194E-10-00
$226.94
You save $40.05

2
Yamaha Motors
BOLT, FLG. M8X1.258JP-RA188-00-00
Required: 2
BOLT, FLG. M8X1.25X30
$1.27
You save $0.23
$2.38
You save $0.42

4
Yamaha Motors
FLANGED HEX NUT NYLOCK8JM-RA301-00-00
Required: 2
NUT, SELF-LOCKING M8-1.25
$0.98
You save $0.17

5
Yamaha Motors
BOLT, FLG. M12X1.28JP-RA1A5-10-00
Required: 2
BOLT, FLG. M12X1.25X75
$3.32
You save $0.58

6
Yamaha Motors
NUT, FLG. LOCKING8JP-RA362-00-00
Required: 2
NUT, FLG. LOCKING M12X1.25
$1.61
You save $0.28

7
Yamaha Motors
BOLT, FLG. M10X1.28JP-RA195-00-00
Required: 2
BOLT, FLG. M10X1.25X25
$2.68
You save $0.47

8
Yamaha Motors
NUT, FLG. LOCKING8JP-RA360-00-00
Required: 2
NUT, FLG. LOCKING
$1.19
You save $0.21
$357.84
You save $63.15

10
Yamaha Motors
CLIP NUT M68JP-RA354-00-00
Required: 17
. NUT, CLIP M6
$1.10
You save $0.20

11
Yamaha Motors
M6X TAPPING SCREW8JP-RA281-00-00
Required: 1
. SCREW, TAPPING M6X1X20
$0.89
You save $0.16

12
Yamaha Motors
SCREW - M6X1X168JP-RA271-00-00
Required: 10
. SCREW, M6X1X16
$0.89
You save $0.16

13
Yamaha Motors
ABSORBER HOLDER 28JP-F377J-10-00
Required: 1
. HOLDER, ABSORBER 2
$130.89
You save $23.10

14
Yamaha Motors
Absorber Holder8JP-F376J-10-00
Required: 1
. HOLDER, ABSORBER
$125.79
You save $22.20

15
Yamaha Motors
BOLT, FLG. M6X1.0X8JP-RA180-00-00
Required: 8
BOLT, FLG. M6X1.0X16
$1.61
You save $0.28

16
Yamaha Motors
UPPER BRACKET8JP-F2219-00-00
Required: 4
BRACKET, UPPER
$18.69
You save $3.30
$0.55
You save $0.10

18
Yamaha Motors
NUT,FLG. M6-1.08JM-RA322-00-00
Required: 2
NUT, FLANGE M6-1.0
$0.98
You save $0.17

19
Yamaha Motors
Stopper Bracket8JP-F131G-00-00
Required: 1
BRACKET, STOPPER STEEERING
$33.14
You save $5.85
$0.64
You save $0.11
$2.21
You save $0.39
$2.42
You save $0.43

23
Yamaha Motors
REINF.,FRAME FR. 38JP-F1922-00-00
Required: 1
REINF.,FRAME FR. 3
$38.24
You save $6.75

24
Yamaha Motors
Steering Bracket8JP-F1947-00-00
Required: 1
BRACKET, STEERING 1
$40.79
You save $7.20

25
Yamaha Motors
1/4 TAPPING SCREW8JP-RA279-00-00
Required: 3
SCREW, TAPPING 1/4-20X5/8
$0.55
You save $0.10
26
Yamaha Motors
Frame Under8KC-F196A-10-00
Required: 1
FRAME UNDER 1
$320.44
You save $56.55

27
Yamaha Motors
FLANGED HEX NUT NYLOCK8JM-RA301-00-00
Required: 4
NUT, SELF-LOCKING M8-1.25
$0.98
You save $0.17

28
Yamaha Motors
SCREW, M8X1.25X44.8JP-RA275-00-00
Required: 4
SCREW, M8X1.25X44.16
$2.42
You save $0.43

29
Yamaha Motors
SCREW, M6X1.0X208JP-RA258-00-00
Required: 2
SCREW, M6X1.0X20
$0.89
You save $0.16
$1.57
You save $0.28
31
Yamaha Motors
UNDER FRAME8KC-F196E-00-00
Required: 1
FRAME, UNDER 2
$42.49
You save $7.50
$16.99
You save $3.00

33
Yamaha Motors
M6X1.0X16 Screw8JP-RA255-00-00
Required: 4
SCREW, M6X1.0X16
$0.94
You save $0.17
$1.27
You save $0.23
$14.87
You save $2.62
$28.89
You save $5.10
$1.91
You save $0.34

38
Yamaha Motors
SCREW - M6X1X168KC-RA271-00-00
Required: 2
SCREW, M6X1X16
$3.02
You save $0.53
$2.04
You save $0.36
$39.94
You save $7.05
$39.94
You save $7.05
$0.89
You save $0.16

43
Yamaha Motors
Front Bumper Component8KC-K7510-00-00
Required: 1
FRONT BUMPER COMP.
$124.09
You save $21.90
$3.95
You save $0.70

45
Yamaha Motors
Rivet, 3/168JP-RA528-00-00
Required: 4
. RIVET, 3/16
$2.42
You save $0.43

46
Yamaha Motors
Front Guard Bracket8KC-F194Y-00-00
Required: 1
. BRACKET, FRONT GUARD 3
$24.64
You save $4.35

47
Yamaha Motors
FRONT BUMPER BRACKET8KC-F1959-00-00
Required: 1
BRACKET, FRONT BUMPER
$61.19
You save $10.80

48
Yamaha Motors
Front Bracket8KC-F1949-00-00
Required: 1
BRACKET, FRONT
$69.69
You save $12.30
$2.42
You save $0.43
$0.55
You save $0.10
$32.29
You save $5.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
