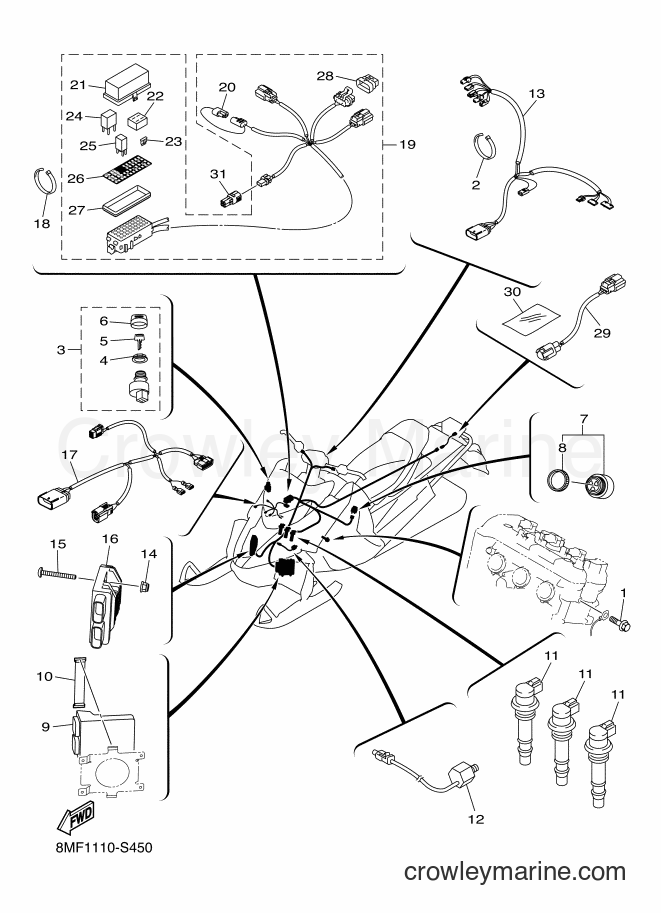

2018 Snowmobile SRS10LD - SRS10LD (8MB2) [010] ELECTRICAL 1 diagram

1
Yamaha Motors
Flange Bolt8KC-RA1B5-00-00
Required: 1
BOLT, FLANGE 1
$2.00
You save $0.35

2
Yamaha Motors
Clamp - 4 inch8JP-RAB03-00-00
Required: 3
CLAMP, 1 (4-INCH)
$0.38
You save $0.07

2
Yamaha Motors
Cable Tie 8.5/7.5/78JM-RAB01-00-00
Required: 2
CLAMP, 2 (8 INCH)
$0.38
You save $0.07
$50.99
You save $9.00

4
Yamaha Motors
Main Switch Nut8JP-H2569-00-00
Required: 1
. NUT, MAIN SWITCH
$2.00
You save $0.35

5
Yamaha Motors
KEY (Z SERIES, RIG8JP-H2511-10-00
Required: 1
. KEY (Z SERIES, RIGHT-SIDE CUT)
$8.49
You save $1.50

5
Yamaha Motors
KEY (Y SERIES)8JP-H2511-00-00
Required: 1
. KEY (Y SERIESE, LEFT-SIDE CUT)
$8.92
You save $1.57
$18.69
You save $3.30
$90.09
You save $15.90
8
Yamaha Motors
Retaining Ring8JP-H4395-00-00
Required: 1
. RING, RETAINING
$13.17
You save $2.32

9
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY8LR-H591A-10-00
Required: 1
ENGINE CONTROL UNIT ASSY
$667.24
You save $117.75
$8.49
You save $1.50

11
Yamaha Motors
Ignition Coil Assembly8ES-82310-00-00
Required: 3
IGNITION COIL ASSY
$147.04
You save $25.95
$150.44
You save $26.55

13
Yamaha Motors
SUB-LEAD WIRE8JP-H2318-00-00
Required: 1
WIRE, SUB-LEAD
$143.64
You save $25.35

14
Yamaha Motors
NUT,FLG. M6-1.08JM-RA322-00-00
Required: 2
NUT, FLANGE M6-1.0
$0.98
You save $0.17

15
Yamaha Motors
SCREW, M6X1.0X258JP-RA264-00-00
Required: 2
SCREW, M6X1.0X25
$0.42
You save $0.08

16
Yamaha Motors
Rectifier & Regulator Assembly8JP-H1960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 8JP-H1960-10-00
$185.29
You save $32.70
$79.89
You save $14.10

18
Yamaha Motors
Clamp - 4 inch8JP-RAB03-00-00
Required: 3
CLAMP, 1 (4-INCH)
$0.38
You save $0.07

18
Yamaha Motors
Clamp, Qty 2, 11.5 Inches8JP-RAB04-00-00
Required: 2
CLAMP, 2 (11.5 INCH)
$0.34
You save $0.06

18
Yamaha Motors
Cable Tie 8.5/7.5/78JM-RAB01-00-00
Required: 10
CLAMP, 2 (8 INCH)
$0.38
You save $0.07

19
Yamaha Motors
Wire Harness Assembly8MF-H2590-00-00
Required: 1
WIRE HARNESS ASSY
$543.14
You save $95.85

20
Yamaha Motors
Cable Anchor 18JP-G8352-00-00
Required: 1
. ANCHOR, CABLE 1
$7.22
You save $1.27

21
Yamaha Motors
Fuse Box Cover8JP-H2172-00-00
Required: 1
. COVER, FUSE BOX
$8.92
You save $1.57

22
Yamaha Motors
Fuse Holder8JP-H2152-00-00
Required: 1
. HOLDER, FUSE
$1.78
You save $0.32
$3.32
You save $0.58
$3.53
You save $0.62
$3.82
You save $0.68
$1.74
You save $0.31

24
Yamaha Motors
RELAY 18MS-H2185-00-00
Required: 2
. RELAY (5PIN) 30AMP
Supersedes: 8JP-H2185-00-00
$42.49
You save $7.50

25
Yamaha Motors
RELAY 28MS-H2189-00-00
Required: 4
. RELAY (4PIN) 20AMP
Supersedes: 8JP-H2189-00-00
$40.79
You save $7.20
$26.34
You save $4.65

27
Yamaha Motors
Hole Cover Gasket8JP-H1365-00-00
Required: 1
. GASKET, HOLE COVER
$3.19
You save $0.56

28
Yamaha Motors
Connecter Cover8JP-H1662-10-00
Required: 1
. COVER, CONNECTER
$18.69
You save $3.30

29
Yamaha Motors
WIRE HARNESS EXTENSION8JR-H2586-00-00
Required: 1
EXTENSION, WIRE HARNESS
$57.79
You save $10.20
$185.29
You save $32.70

31
Yamaha Motors
Connecter Cover8JP-H1662-20-00
Required: 1
COVER, CONNECTER
$14.02
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
