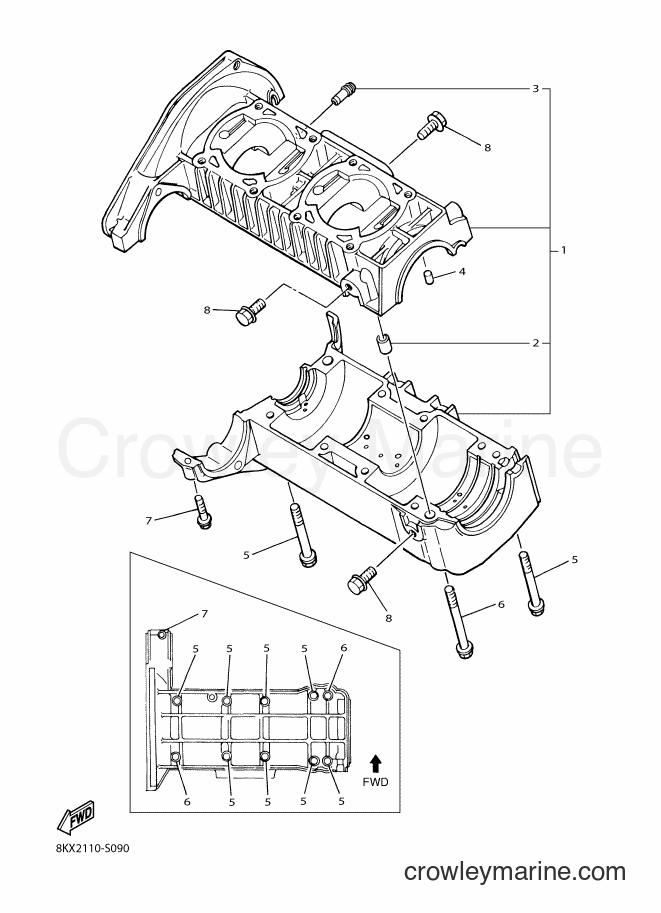

2017 Snowmobile VK540F - VK540F (8KX1) [020] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VK540F (8KX1) [020] - CRANKCASE
Change View:
Crankcase Assembly
1
Yamaha Motors
Crankcase Assembly8KX-15109-09-00
Required: 1
CRANKCASE ASSY
Cross Ship
Leaves in 2-5 days
$1281.99
$1089.69
You save $192.30
More details
Dowel Pin
4
Yamaha Motors
Dowel Pin93604-07141-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Flange Bolt
5
Yamaha Motors
Flange Bolt95817-08075-00
Required: 8
BOLT, FLANGE
Supersedes: 95827-08075-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt (8BN)
6
Yamaha Motors
Flange Bolt (8BN)95817-08085-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08085-00
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95822-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
95814-08016-00
8
Yamaha Motors
95814-08016-0095821-08016-00
Required: 6
BOLT, FLANGE
Supersedes: 95822-08016-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
