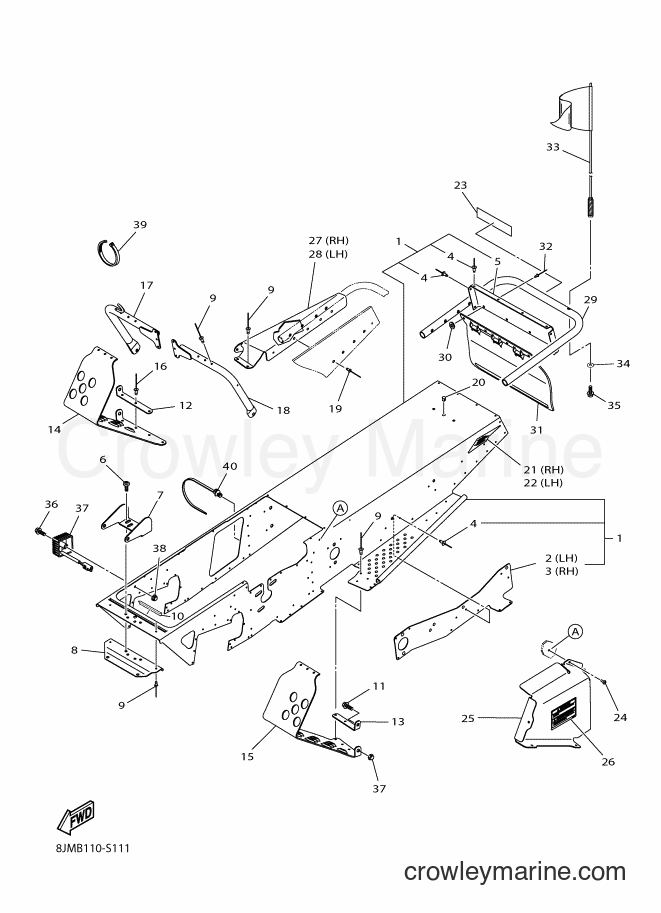

2017 Snowmobile SRX120 - SRX120 (8JMB) [010] FRAME 2 diagram
$322.99
You save $57.00

2
Yamaha Motors
Tunnel Reinforcement Plate8JM-F1943-00-00
Required: 1
. BRACKET, MAIN TRACK 1
$56.94
You save $10.05

3
Yamaha Motors
TUNNEL PLATE -REINFORCEMENT8JM-F1953-00-00
Required: 1
. BRACKET, MAIN TRACK 2
$56.94
You save $10.05

4
Yamaha Motors
Solid Aluminum Rivet8JM-RA504-00-00
Required: 26
. RIVET, ROUND 1
In stock
5+ in stock
$0.81
You save $0.14

5
Yamaha Motors
Frame Reinforcement8JM-F1923-10-00
Required: 1
. REINEFORCEMENT, FRAME REAR 1
$4.67
You save $0.82

6
Yamaha Motors
Self Tap Screw - HWH8JM-RA202-00-00
Required: 4
SCREW, TAPPING 1/4-20X0.5
$1.49
You save $0.26
$18.69
You save $3.30

8
Yamaha Motors
REINFORCEMENT PLATE8JM-F191D-00-00
Required: 1
FRAME, FRONT END
$22.09
You save $3.90

9
Yamaha Motors
Rivet8JP-RA514-00-00
Required: 1
RIVET, BLIND 1
Supersedes: 8JM-RA500-00-00
$0.64
You save $0.11
$22.09
You save $3.90

11
Yamaha Motors
HFH CAP SCREW 1/4-208JM-RA106-00-00
Required: 2
BOLT, FLANGE 1/4-20X0.75
$2.63
You save $0.47

12
Yamaha Motors
Footrest Support Bracket8JM-F1931-00-00
Required: 1
REINFORCEMENT, FRAME FRONT 2
$15.29
You save $2.70

13
Yamaha Motors
Footrest Support Bracket8JM-F1921-00-00
Required: 1
REINEFORCEMENT, FRAME REAR 1
$15.29
You save $2.70
$65.44
You save $11.55
$55.24
You save $9.75
$0.55
You save $0.10

17
Yamaha Motors
PTD FOOTREST SUPPORT8JM-F192E-00-00
Required: 1
REINFORCEMENT, FRAME SIDE
$47.59
You save $8.40

18
Yamaha Motors
Foot Rest Support8JM-F1929-00-00
Required: 1
REINFORCEMENT, FRAME SIDE
$45.04
You save $7.95
$0.64
You save $0.11
$2.04
You save $0.36

21
Yamaha Motors
Reflector Decal RH8JM-H511F-00-00
Required: 1
BASE, REFLECTOR 3
$16.14
You save $2.85

22
Yamaha Motors
LH REFELECTOR DECAL8JM-H511E-00-00
Required: 1
BASE,REFLECTOR 2
$16.14
You save $2.85
$7.64
You save $1.35

24
Yamaha Motors
SELF TAP SCREW - HWH108JM-RA203-00-00
Required: 4
SCREW, TAPPING 10-16X1/2
$0.30
You save $0.05

25
Yamaha Motors
DRIVE SPROCKET COVER8JM-E3327-00-00
Required: 1
COVER, PUMP GEAR
$40.79
You save $7.20

26
Yamaha Motors
Warning Guard Decal8JM-K7762-00-00
Required: 1
LABEL, WARNING 2
$2.04
You save $0.36
$94.34
You save $16.65
$94.34
You save $16.65
$56.94
You save $10.05

30
Yamaha Motors
Flat Washer .194x.508JM-RA411-00-00
Required: 4
WASHER, PLAIN 0.194
$0.26
You save $0.05
$48.44
You save $8.55

32
Yamaha Motors
Blind Rivet8JM-RA508-10-00
Required: 4
RIVET, BLIND 7
$1.49
You save $0.26
$37.39
You save $6.60

34
Yamaha Motors
Flat Washer 5/16x.688JM-RA403-00-00
Required: 1
WASHER, PLAIN 5/16
$0.98
You save $0.17

35
Yamaha Motors
HFH CAP SCREW (5/16)8JM-RA104-00-00
Required: 1
BOLT, FLANGE 5/16-18X1.25
$2.04
You save $0.36

36
Yamaha Motors
Circlip8JM-RA138-00-00
Required: 1
BOLT, FLANGE 1/4-20X1.5
$2.04
You save $0.36

37
Yamaha Motors
FW VOLTAGE REGULATOR8JM-H1910-00-00
Required: 1
VOLTAGE REGULATOR ASSY
$101.14
You save $17.85

38
Yamaha Motors
NUT, FLG. LOCKING8JP-RA357-00-00
Required: 3
NUT, FLG. LOCKING 1/4-20
$0.55
You save $0.10

39
Yamaha Motors
Cable Tie 8.5/7.5/78JM-RAB01-00-00
Required: 1
CLAMP, 2 (8 INCH)
$0.38
You save $0.07
$1.44
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
