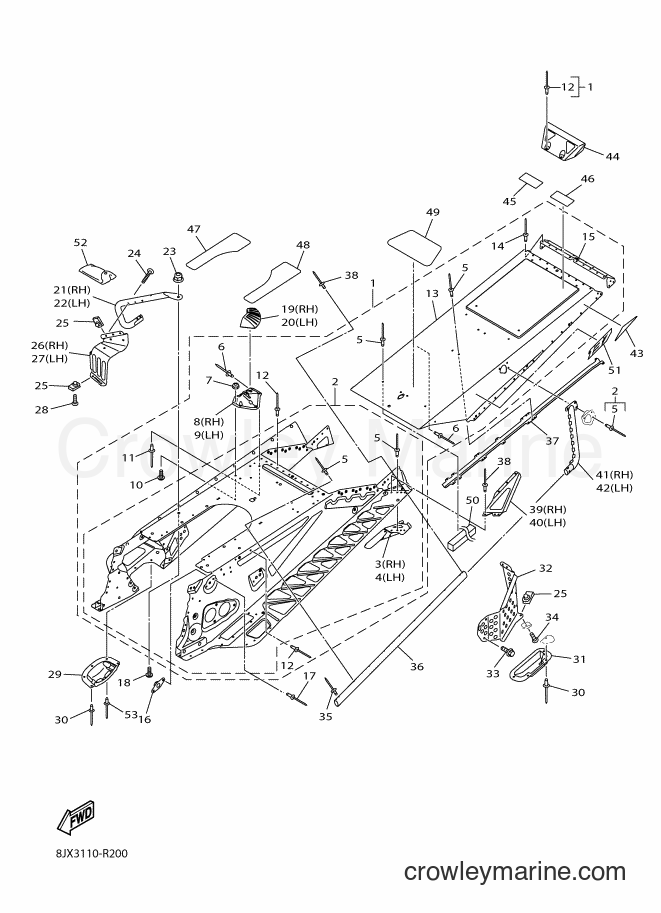

2017 Snowmobile SRV10LD - SRV10LD (8JX4) [010] FRAME 2 diagram

1
Yamaha Motors
REAR FRAME COMP.8JY-F1950-00-00
Required: 1
REAR FRAME COMP.
$666.39
You save $117.60

2
Yamaha Motors
PANEL, FRAME8JY-F1911-00-00
Required: 1
. PANEL, FRAME
$465.79
You save $82.20

3
Yamaha Motors
RR TRACK SUSPENSION BRACKET8JY-F1954-00-00
Required: 1
. . BRACKET,RR.TRACK SUSPENTION 2
$31.44
You save $5.55

4
Yamaha Motors
BRACKET,RR.TRACK S8JY-F1944-00-00
Required: 1
. . BRACKET,RR.TRACK SUSPENTION 1
$32.29
You save $5.70

5
Yamaha Motors
RIVET, 118JP-RA520-00-00
Required: 1
. . RIVET, 11
$0.64
You save $0.11
$2.42
You save $0.43

7
Yamaha Motors
NUT, HEX. LOCKING8JP-RA370-00-00
Required: 8
. NUT, HEX. LOCKING
$0.60
You save $0.10

8
Yamaha Motors
MEMBER BRACKET8JW-F115M-00-00
Required: 1
. BRKT., MEMBER 2
$36.54
You save $6.45

9
Yamaha Motors
Member Bracket8JW-F115L-00-00
Required: 1
. BRACKET, MEMBER 1
$36.54
You save $6.45
$0.85
You save $0.15

11
Yamaha Motors
Rivet, 3/168JP-RA528-00-00
Required: 2
. RIVET, 3/16
$2.42
You save $0.43
$0.51
You save $0.09

13
Yamaha Motors
SUB FRAME PANEL8JR-F1912-00-00
Required: 1
. PANEL, SUB FRAME 1
$202.29
You save $35.70
$0.38
You save $0.07

15
Yamaha Motors
Frame Reinforcement8JW-F1923-00-00
Required: 1
. REINEFORCEMENT, FRAME REAR 1
$45.04
You save $7.95
$34.84
You save $6.15
$1.66
You save $0.29

18
Yamaha Motors
Screw, M8 x 1.25 x 208JP-RA272-00-00
Required: 2
SCREW, M8X1.25X20
$0.60
You save $0.10

19
Yamaha Motors
Fuel Tank Support8JP-F2556-00-00
Required: 1
SUPT., FUEL TANK 2
$24.64
You save $4.35

20
Yamaha Motors
Fuel Tank Support8JP-F2555-00-00
Required: 1
SUPT., FUEL TANK 1
$23.79
You save $4.20

21
Yamaha Motors
Frame Reinforcement8JP-F192E-00-00
Required: 1
REINFORCEMENT, FRAME
$73.09
You save $12.90

22
Yamaha Motors
Frame Reinforcement8JP-F1929-00-00
Required: 1
REINFORCEMENT, FRAME SIDE
$61.19
You save $10.80

23
Yamaha Motors
FLANGED HEX NUT NYLOCK8JM-RA301-00-00
Required: 2
NUT, SELF-LOCKING M8-1.25
$0.98
You save $0.17

24
Yamaha Motors
Screw, M5X0.8X358JP-RA247-00-00
Required: 4
SCREW, M5X0.8X35
$1.15
You save $0.20
$3.06
You save $0.54

26
Yamaha Motors
Reinforcement Sub8JW-F1996-00-00
Required: 1
REINFORCEMENT SUB FRAME FR 2
$35.69
You save $6.30

27
Yamaha Motors
Reinforcement Sub8JW-F1995-00-00
Required: 1
REINFORCEMENT SUB FRAME FR 1
$34.84
You save $6.15

28
Yamaha Motors
SCREW, M5X1.0X168JP-RA251-00-00
Required: 4
SCREW, M5X1.0X16
In stock
Only 1 remaining
$0.47
You save $0.08

29
Yamaha Motors
Chain Protector8JP-F2147-00-00
Required: 1
PROTECTOR, CHAIN
$7.22
You save $1.27
$1.10
You save $0.20

31
Yamaha Motors
Disc Brake Protector8JP-F5717-00-00
Required: 1
PROTECTOR, DISK BRAKE
$15.72
You save $2.77

32
Yamaha Motors
Disc Brake Protector8JW-F5718-60-00
Required: 1
PROTECTOR, DISK BRAKE
Supersedes: 8JW-F5718-00-00
$62.04
You save $10.95

33
Yamaha Motors
BOLT, FLG. M6X1.0X8JP-RA179-00-00
Required: 2
BOLT, FLG. M6X1.0X12
$1.91
You save $0.34

34
Yamaha Motors
SCREW, M5X1.0X168JP-RA251-00-00
Required: 1
SCREW, M5X1.0X16
In stock
Only 1 remaining
$0.47
You save $0.08
$2.46
You save $0.44

36
Yamaha Motors
FOOTREST REINFORCEMENT8JW-F1926-00-00
Required: 2
REINFORCEMENT, FOOTREST 1
$62.04
You save $10.95

37
Yamaha Motors
WIRE HARNESS PROTECTOR8JR-H2589-00-00
Required: 1
PROTECTER, WIRE HARNESS
$31.44
You save $5.55
$2.42
You save $0.43
$33.14
You save $5.85
$34.84
You save $6.15
$41.64
You save $7.35
$34.84
You save $6.15

43
Yamaha Motors
LABEL 18JP-F151A-10-00
Required: 2
LABEL 1
Supersedes: 8JP-F151A-00-00
$8.49
You save $1.50

44
Yamaha Motors
TAIL LIGHT BRACKET8JW-F117E-10-00
Required: 1
BRACKET, TAILLIGHT
$45.04
You save $7.95

45
Yamaha Motors
Warning Label8JP-K7762-70-00
Required: 1
LABEL, WARNING 2 (ENGLISH)
$3.19
You save $0.56

46
Yamaha Motors
Warning Label8JP-K7762-S0-00
Required: 1
LABEL, WARNING 2 (FRENCH)
$2.85
You save $0.50

47
Yamaha Motors
Frame Protector8JP-F197C-00-00
Required: 1
PROTECTOR, FRAME 3
$10.62
You save $1.87

48
Yamaha Motors
FRAME PROTECTOR8JP-F197B-00-00
Required: 1
PROTECTOR, FRAME
$9.77
You save $1.72

49
Yamaha Motors
FUEL TANK PROTECTOR8JP-F4141-00-00
Required: 1
PROTECTOR, FUEL TANK
$14.87
You save $2.62

50
Yamaha Motors
Frame Protector8JR-F1978-00-00
Required: 2
PROTECTOR, FRAME
$61.19
You save $10.80

51
Yamaha Motors
FRAME DECAL - 178JX-RAP0J-10-00
Required: 2
DECAL, FRAME 17
$23.79
You save $4.20
$77.34
You save $13.65
$1.96
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
