All diagrams for this model

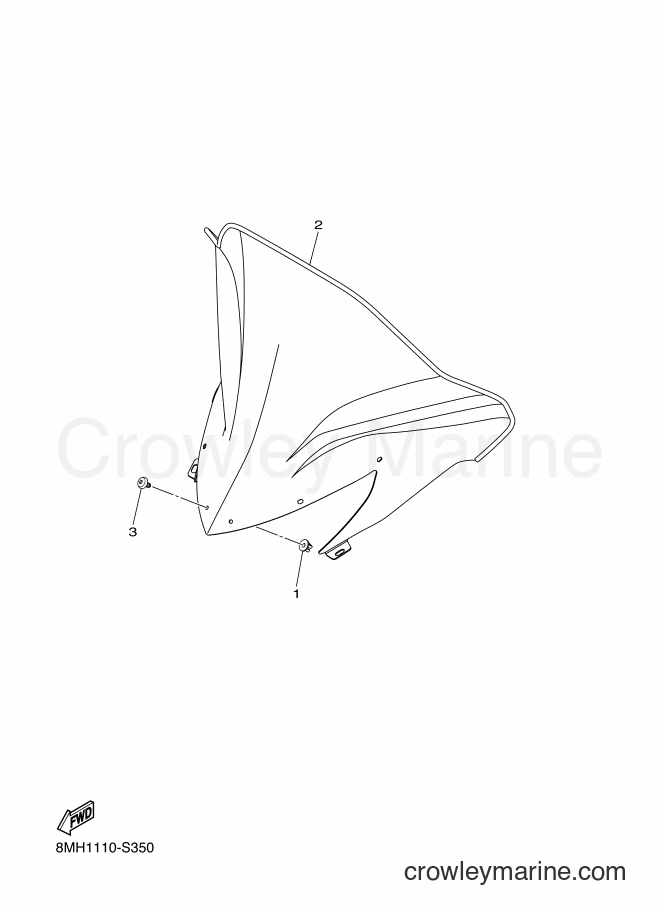

2017 Snowmobile SRS10LD - SRS10LD (8MB1) [010] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SRS10LD (8MB1) [010] - WINDSHIELD
Change View:
Insert Nut
1
Yamaha Motors
Insert Nut8JP-RA373-00-00
Required: 6
NUT, INSERT
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Windshield Comp
2
Yamaha Motors
Windshield Comp8MH-K7210-00-00
Required: 1
WINDSHIELD COMP.
Cross Ship
Leaves in 2-5 days
$233.99
$198.89
You save $35.10
More details
M6X TAPPING SCREW
3
Yamaha Motors
M6X TAPPING SCREW8JP-RA280-10-00
Required: 6
SCREW, TAPPING M6X12
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
