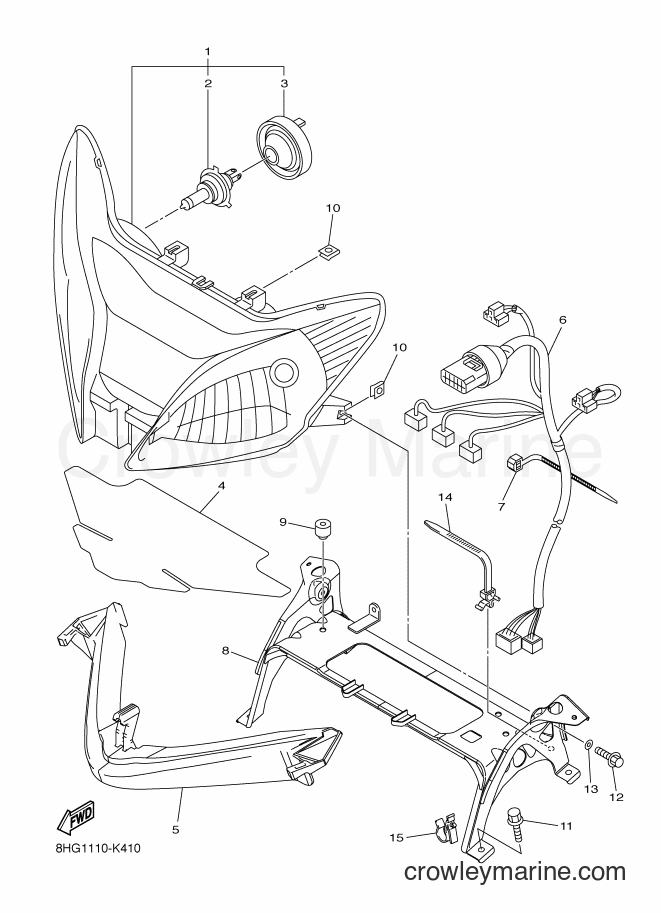

2017 Snowmobile RX10ST2 - RX10ST2 (8KL3) [020] HEADLIGHT diagram

1
Yamaha Motors
Headlight Unit Assembly8FP-84310-00-00
Required: 1
HEADLIGHT UNIT ASSY
$446.24
You save $78.75

2
Yamaha Motors
Headlight Bulb8FP-84314-00-00
Required: 2
. BULB, HEADLIGHT (12V-60/55W)
$38.24
You save $6.75

3
Yamaha Motors
5GJ-84397-00-008EK-84397-00-00
Required: 2
. COVER, SOCKET
$13.59
You save $2.40
$7.22
You save $1.27

5
Yamaha Motors
Headlight Damper8FP-84366-00-00
Required: 1
DAMPER, HEADLIGHT 1
$91.79
You save $16.20

6
Yamaha Motors
HEADLIGHT CORD8HG-84359-10-00
Required: 1
CORD, HEADLIGHT
$84.14
You save $14.85
$8.07
You save $1.42

8
Yamaha Motors
HEADLIGHT STAY 18HG-84118-00-00
Required: 1
STAY, HEADLIGHT 1
$258.39
You save $45.60

9
Yamaha Motors
MAIN STAND STOPPER1UJ-27114-00-00
Required: 2
STOPPER, MAIN STAND
$6.37
You save $1.12
$9.77
You save $1.72
11
Yamaha Motors
Flange Bolt95817-06016-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-06016-00
$1.66
You save $0.29

12
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT, HEXAGON
Supersedes: 97002-06016-00
$1.57
You save $0.28

13
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$2.93
You save $0.52

14
Yamaha Motors
Clamp90464-10112-00
Required: 1
CLAMP
Supersedes: 90464-12036-00
$8.07
You save $1.42
$1.78
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
