All diagrams for this model

2015 Snowmobile SRV10MS - SRV10MS (8KS1) [010] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

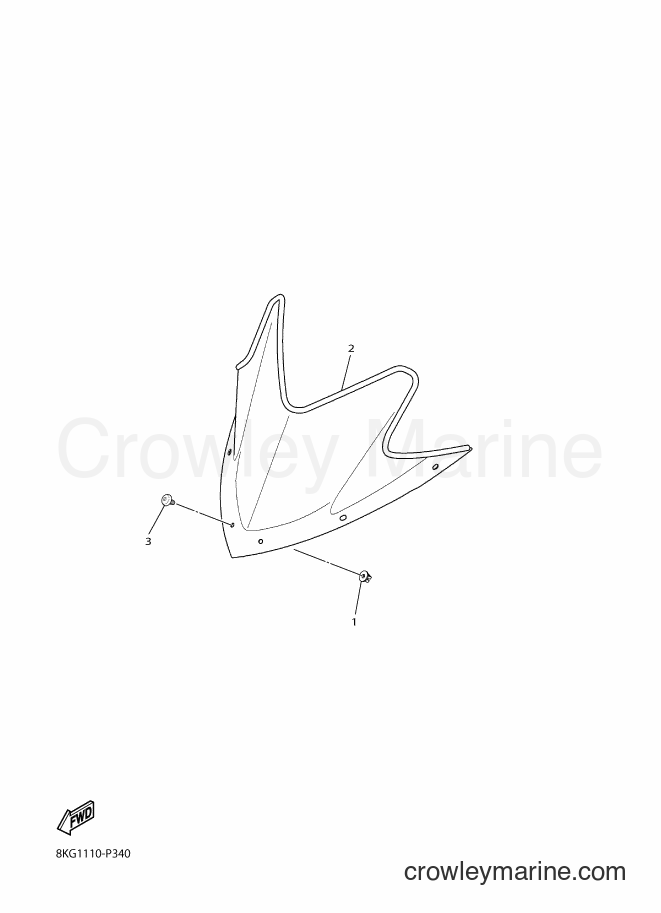

Yamaha Motors SRV10MS (8KS1) [010] - WINDSHIELD
Change View:
Insert Nut
1
Yamaha Motors
Insert Nut8JP-RA373-00-00
Required: 6
NUT, INSERT
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Windshield Comp
2
Yamaha Motors
Windshield Comp8KN-K7210-00-00
Required: 1
WINDSHIELD COMP.
Supersedes: 8KT-K7210-00-00
Cross Ship
Leaves in 2-5 days
$222.99
$189.54
You save $33.45
More details
M6X TAPPING SCREW
3
Yamaha Motors
M6X TAPPING SCREW8JP-RA280-00-00
Required: 6
SCREW, TAPPING M6X12
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
