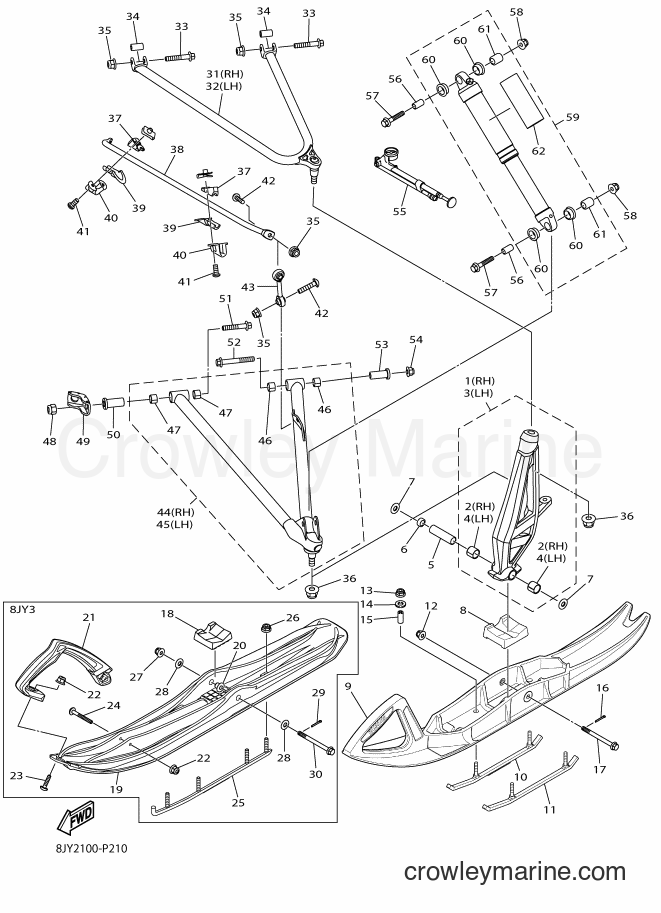

2015 Snowmobile SRV10LS - SRV10LS (8JY3) [010] SKI diagram

1
Yamaha Motors
STEERING KNUCKLE8JP-F3521-30-00
Required: 1
KNUCKLE, STEERING 2
$231.19
You save $40.80

2
Yamaha Motors
BUSH, 12DU128JP-RA806-00-00
Required: 2
. BUSH, 12DU12
$11.04
You save $1.95

3
Yamaha Motors
STEERING KNUCKLE8JP-F3511-30-00
Required: 1
KNUCKLE, STEERING 1
$251.59
You save $44.40

4
Yamaha Motors
BUSH, 12DU128JP-RA806-00-00
Required: 2
. BUSH, 12DU12
$11.04
You save $1.95
$30.59
You save $5.40
$3.32
You save $0.58
$23.79
You save $4.20
$130.89
You save $23.10
$4.67
You save $0.82

21
Yamaha Motors
HEAD REINFORCEMENT8JP-F3712-20-00
Required: 1
REINFORCEMENT, HEAD
$18.69
You save $3.30

22
Yamaha Motors
NUT,FLG. M6-1.08JM-RA322-00-00
Required: 4
NUT, FLANGE M6-1.0
$0.98
You save $0.17

23
Yamaha Motors
SCREW, M6X1.0X258JP-RA263-00-00
Required: 2
SCREW, M6X1.0X25
$2.29
You save $0.41

24
Yamaha Motors
Screw, M6X1.0X508JP-RA267-00-00
Required: 2
SCREW, M6X1.0X50
$2.38
You save $0.42
$87.54
You save $15.45

26
Yamaha Motors
NUT, FLG. LOCKING8JP-RA358-00-00
Required: 8
NUT, FLG. LOCKING 3/8-16
$0.98
You save $0.17

27
Yamaha Motors
NUT, FLG. LOCKING8JP-RA359-00-00
Required: 2
NUT, FLG. LOCKING M10X1.25
$2.85
You save $0.50

28
Yamaha Motors
WASHER, 10.98X28.08JP-RA443-00-00
Required: 4
WASHER, 10.98X28.00X1.6
$1.66
You save $0.29
$0.51
You save $0.09

30
Yamaha Motors
BOLT, FLG. M10-1.28JP-RA193-00-00
Required: 2
BOLT, FLG. M10-1.25X137
$10.19
You save $1.80

31
Yamaha Motors
ARM, FRONT UPPER8JP-F355A-20-00
Required: 1
ARM, FRONT UPPER RH
$134.29
You save $23.70

32
Yamaha Motors
ARM, FRONT UPPER8JP-F354A-20-00
Required: 1
ARM, FRONT UPPER LH
$177.64
You save $31.35

33
Yamaha Motors
BOLT, FLG. M8X1.258JP-RA190-00-00
Required: 4
BOLT, FLG. M8X1.25X45
$1.49
You save $0.26
$2.59
You save $0.46

35
Yamaha Motors
FLANGED HEX NUT NYLOCK8JM-RA301-00-00
Required: 8
NUT, SELF-LOCKING M8-1.25
$0.98
You save $0.17

36
Yamaha Motors
NUT, FLG. LOCKING8JP-RA362-00-00
Required: 4
NUT, FLG. LOCKING M12X1.25
$1.61
You save $0.28
$7.22
You save $1.27

38
Yamaha Motors
FRONT STABILZER BAR8JP-F386E-00-00
Required: 1
BAR, STABILIZER FRONT
$125.79
You save $22.20

39
Yamaha Motors
STABILIZER BUSH8JP-F386G-00-00
Required: 2
BUSH, STABILIZER FRONT
$7.64
You save $1.35

40
Yamaha Motors
Stabilizer Holder8JP-F386C-00-00
Required: 2
HOLDER, STABILIZER FRONT
$7.22
You save $1.27
$1.49
You save $0.26

42
Yamaha Motors
Screw, M8X1.25X358JP-RA273-00-00
Required: 4
SCREW, M8X1.25X35
$2.63
You save $0.47

43
Yamaha Motors
Stabilizer Link8JP-F386F-00-00
Required: 2
LINK, STABILIZER FRONT
$39.94
You save $7.05

44
Yamaha Motors
ARM,FR. LWR. RH.8JP-F358A-20-00
Required: 1
ARM,FR. LWR. RH.
$266.89
You save $47.10

45
Yamaha Motors
ARM,FR. LWR. LH.8JP-F357A-20-00
Required: 1
ARM,FR. LWR. LH.
$243.94
You save $43.05

46
Yamaha Motors
Bush 10DU108JP-RA807-00-00
Required: 2
. BUSH, 10DU10
$8.07
You save $1.42

47
Yamaha Motors
BUSH, 1815DU8JP-RA811-00-00
Required: 2
. BUSH, 1815DU
$4.67
You save $0.82

48
Yamaha Motors
NUT, FLG. LOCKING8JP-RA361-00-00
Required: 2
NUT, FLG. LOCKING M12X1.25
$1.96
You save $0.35
$12.32
You save $2.17
$16.57
You save $2.92

51
Yamaha Motors
BOLT, FLG. M12X1.28JP-RA1A7-00-00
Required: 2
BOLT, FLG. M12X1.25X76
$4.08
You save $0.72

52
Yamaha Motors
BOLT, FLG. M10X1.28JP-RA1A4-00-00
Required: 2
BOLT, FLG. M10X1.25X75
$2.42
You save $0.43
$4.67
You save $0.82

54
Yamaha Motors
NUT, FLG. LOCKING8JP-RA360-00-00
Required: 2
NUT, FLG. LOCKING M10X1.25
$1.19
You save $0.21
$78.19
You save $13.80
$5.52
You save $0.97

57
Yamaha Motors
BOLT, FLG. M10X1.28JP-RA1A3-00-00
Required: 4
BOLT, FLG. M10X1.25X50
$3.49
You save $0.62

58
Yamaha Motors
NUT, FLG. LOCKING8JP-RA360-00-00
Required: 4
NUT, FLG. LOCKING M10X1.25
$1.19
You save $0.21
$593.29
You save $104.70
$19.54
You save $3.45

61
Yamaha Motors
Collar8JP-RA732-00-00
Required: 2
. COLLAR, 15
$39.94
You save $7.05
$18.69
You save $3.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
