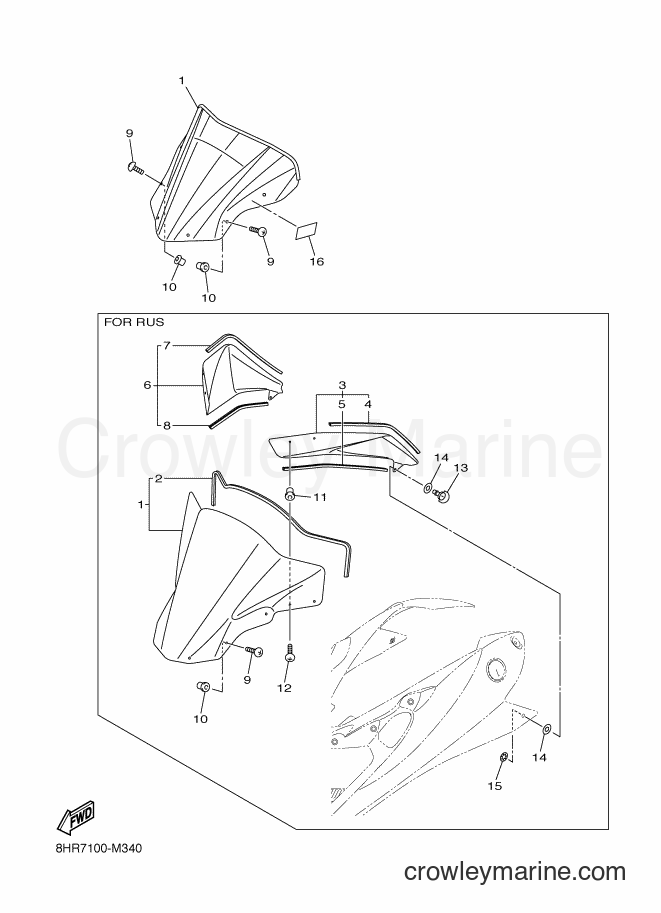

2013 Snowmobile RFX10RMS - RFX10RMS (8HR8) [010] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RFX10RMS (8HR8) [010] - WINDSHIELD
Change View:
Windshield Comp
1
Yamaha Motors
Windshield Comp8HR-K7210-00-00
Required: 1
WINDSHIELD COMP.
Cross Ship
Leaves in 2-5 days
$29.05
$24.69
You save $4.36
More details
1
Required: 1
WINDSHIELD COMP.
Price unavailable
1
Required: 1
WINDSHIELD COMP.
Price unavailable
2
Required: 1
. TRIM, UPPER
Price unavailable
3
Required: 1
FAIRING 2
Price unavailable
4
Required: 1
. TRIM 1
Price unavailable
5
Required: 1
. TRIM 2
Price unavailable
6
Required: 1
FAIRING 3
Price unavailable
7
Required: 1
. TRIM 1
Price unavailable
8
Required: 1
. TRIM 2
Price unavailable
PLASTIC SCREW
9
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 6
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
SPECIAL SHAPE NUT
10
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 6
NUT
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
SPECIAL SHAPE NUT
11
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
ROUND HEAD SCREW
12
Yamaha Motors
ROUND HEAD SCREW90150-05023-00
Required: 4
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$3.30
$2.80
You save $0.50
More details
HEAD AND WASHER SET
13
Yamaha Motors
HEAD AND WASHER SET99999-04116-00
Required: 2
HEAD
Supersedes: 8GL-28386-00-00
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
Plate Washer
14
Yamaha Motors
Plate Washer90202-07186-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Special Washer
15
Yamaha Motors
Special Washer5TJ-21757-00-00
Required: 2
WASHER, SPECIAL 1
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
LABEL, NOTICE WINDSHIELD 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
