All diagrams for this model

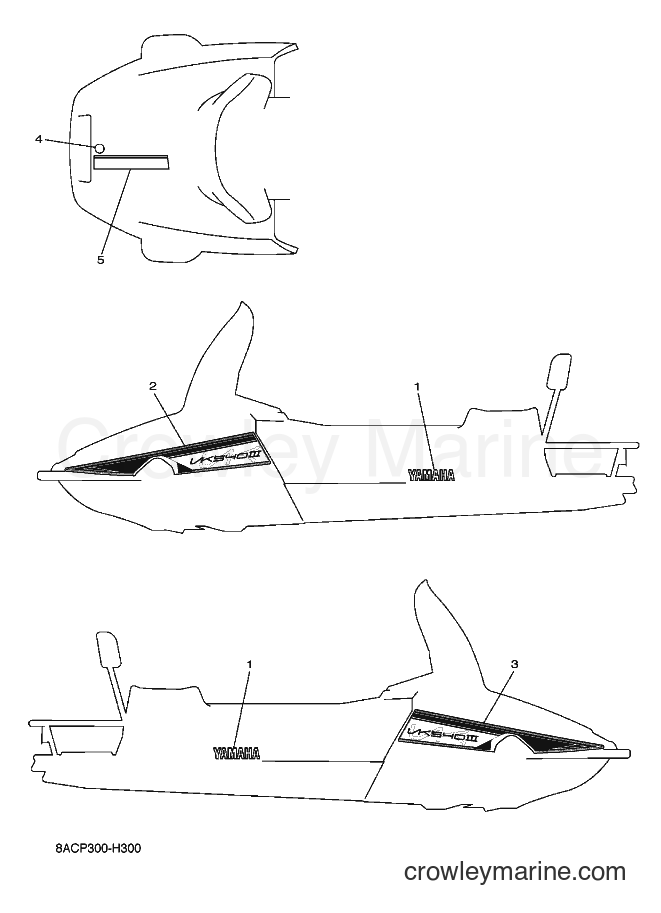

2012 Snowmobile VK540E - VK540E (8ACW) [010] EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VK540E (8ACW) [010] - EMBLEM
Change View:
YAMAHA EMBLEM
1
Yamaha Motors
YAMAHA EMBLEM99246-00200-00
Required: 2
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
2
Required: 1
GRAPHIC 1
Price unavailable
3
Required: 1
GRAPHIC 2
Price unavailable
TUNINK FORK EMBLEM
4
Yamaha Motors
TUNINK FORK EMBLEM8AC-2414B-01-00
Required: 1
EMBLEM
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
5
Required: 1
GRAPHIC 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
