2012 Snowmobile VK10D - VK10D (8GSD) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

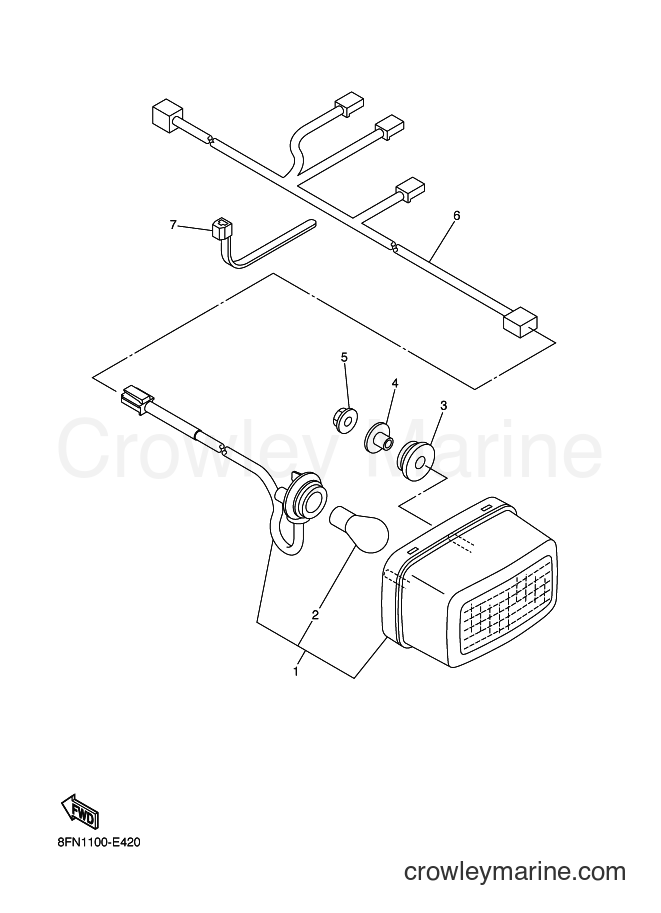

Yamaha Motors VK10D (8GSD) [010] - TAILLIGHT

Change View:

Yamaha Motors

TAIL LIGHT UNIT ASSEMBLY8FN-84710-01-00

Required: 1

TAILLIGHT UNIT ASSY

Supersedes: 8FN-84710-00-00

~~$103.99~~

$88.39

You save $15.60

-50%

. BULB (12V-21/5W)

Supersedes: 1A2-84714-41-00

In stock

Only 3 remaining

~~$15.49~~

$7.74

You save $7.74

More details

Yamaha Motors

GROMMET, WATER TUBE (UPPER)90480-18007-00

Required: 2

GROMMET

~~$9.49~~

$8.07

You save $1.42

COLLAR

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Flange Nut95702-06500-00

Required: 2

NUT, FLANGE

In stock

Only 1 remaining

~~$2.60~~

$2.21

You save $0.39

More details

Yamaha Motors

TAIL LIGHT CORD8FN-84717-00-00

Required: 1

CORD, TAILLIGHT

~~$59.99~~

$50.99

You save $9.00

CLAMP

~~$4.50~~

$3.82

You save $0.68

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
