2011 Snowmobile RS10VTGT - RS10VTGT (8HF6) [020] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

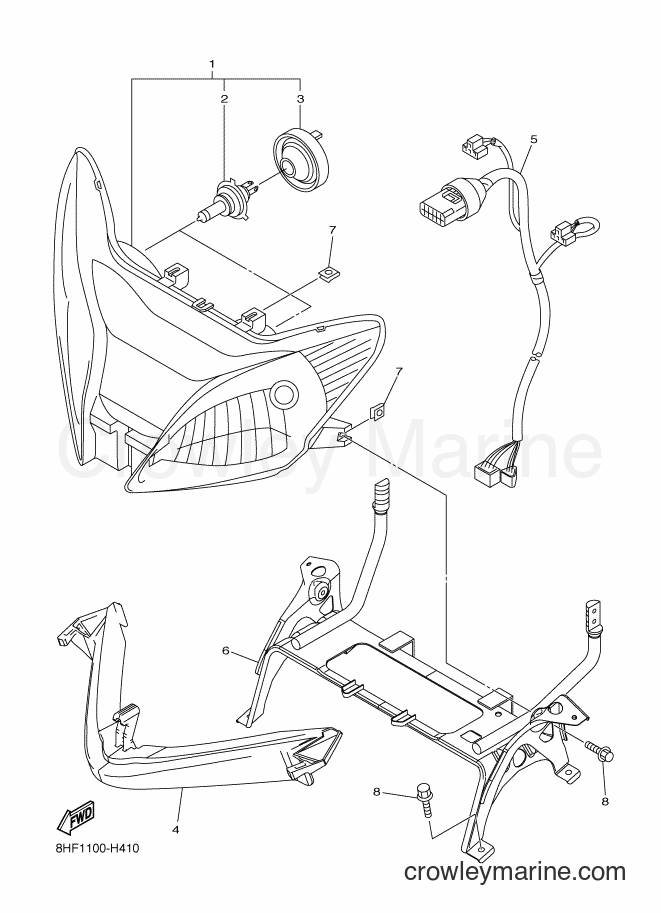

Yamaha Motors RS10VTGT (8HF6) [020] - HEADLIGHT
Change View:
Headlight Unit Assembly
1
Yamaha Motors
Headlight Unit Assembly8FP-84310-00-00
Required: 1
HEADLIGHT UNIT ASSY
Cross Ship
Leaves in 2-5 days
$524.99
$446.24
You save $78.75
More details
Headlight Bulb
2
Yamaha Motors
Headlight Bulb8FP-84314-00-00
Required: 2
. BULB, HEADLIGHT (12V-60/55W)
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
5GJ-84397-00-00
3
Yamaha Motors
5GJ-84397-00-008EK-84397-00-00
Required: 2
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
Headlight Damper
4
Yamaha Motors
Headlight Damper8FP-84366-00-00
Required: 1
DAMPER, HEADLIGHT 1
Cross Ship
Leaves in 2-5 days
$107.99
$91.79
You save $16.20
More details
HEADLIGHT CORD
5
Yamaha Motors
HEADLIGHT CORD8HF-84359-00-00
Required: 1
CORD, HEADLIGHT
Cross Ship
Leaves in 2-5 days
$95.99
$81.59
You save $14.40
More details
HEADLIGHT STAY 1
6
Yamaha Motors
HEADLIGHT STAY 18HF-84118-02-00
Required: 1
STAY, HEADLIGHT 1
Cross Ship
Leaves in 2-5 days
$537.99
$457.29
You save $80.70
More details
Spring Nut
7
Yamaha Motors
Spring Nut90183-06100-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt95817-06016-00
Required: 6
BOLT, FLANGE
Supersedes: 95802-06016-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.56
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
