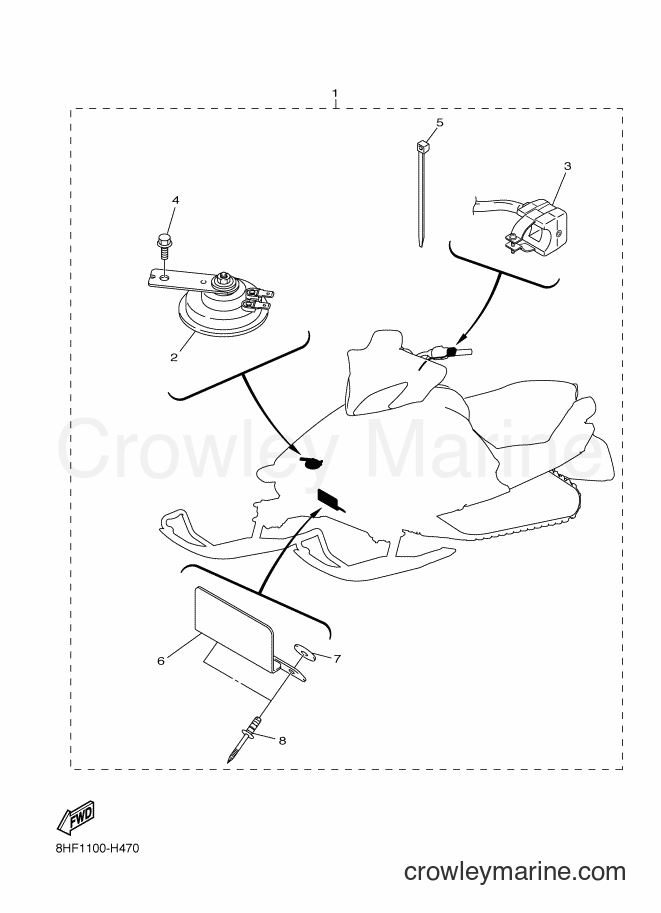

2011 Snowmobile RS10SUV - RS10SUV (8HP5) [020] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RS10SUV (8HP5) [020] - ELECTRICAL 4
Change View:
1
Required: 1
HORN KIT
Price unavailable
Horn
2
Yamaha Motors
Horn3MX-83371-11-00
Required: 1
. HORN
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
3
Required: 1
. SWITCH, HANDLE 1
Price unavailable
Flange Bolt
4
Yamaha Motors
Flange Bolt95822-06016-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.10
$0.08
You save $0.01
More details
Band
5
Yamaha Motors
Band1UA-82591-00-00
Required: 1
. CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
6
Required: 1
. BRACKET, REFLECTOR
Price unavailable
Plate Washer
7
Yamaha Motors
Plate Washer90201-061A5-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-05036-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Blind Rivet
8
Yamaha Motors
Blind Rivet90267-47186-00
Required: 2
. RIVET, BLIND (4.7X16.4 BLACK)
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
