2009 Snowmobile RX10STGT - RX10STGT (8GV7) [020] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

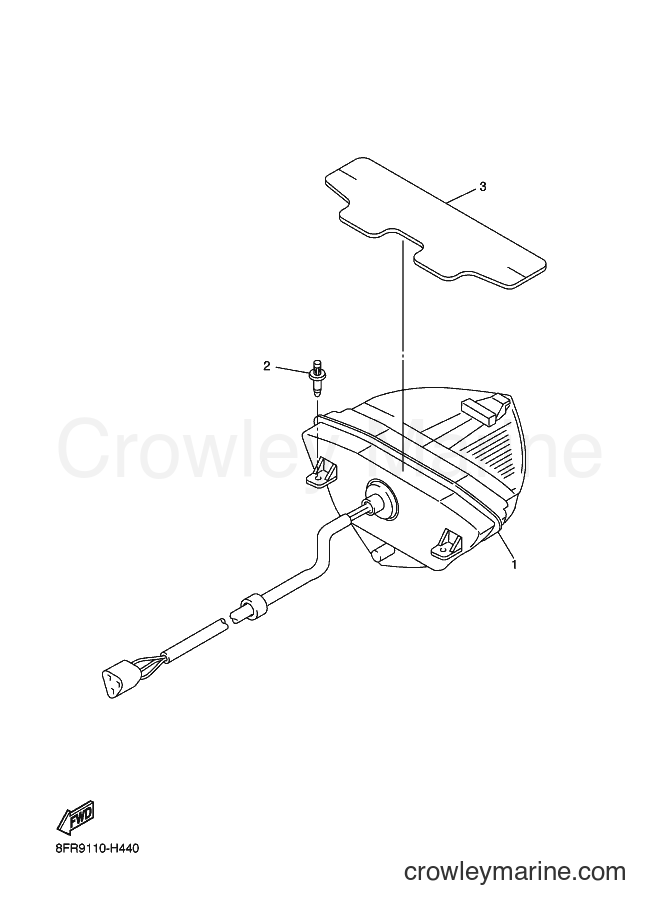

Yamaha Motors RX10STGT (8GV7) [020] - TAILLIGHT
Change View:
TAIL LIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY5VY-84710-10-00
Required: 1
TAILLIGHT UNIT ASSY
Cross Ship
Leaves in 2-5 days
$272.99
$232.04
You save $40.95
More details
RIVET
2
Yamaha Motors
RIVET90269-06012-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Insulator (Control)
3
Yamaha Motors
Insulator (Control)8FP-7712E-01-00
Required: 1
INSULATOR
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
