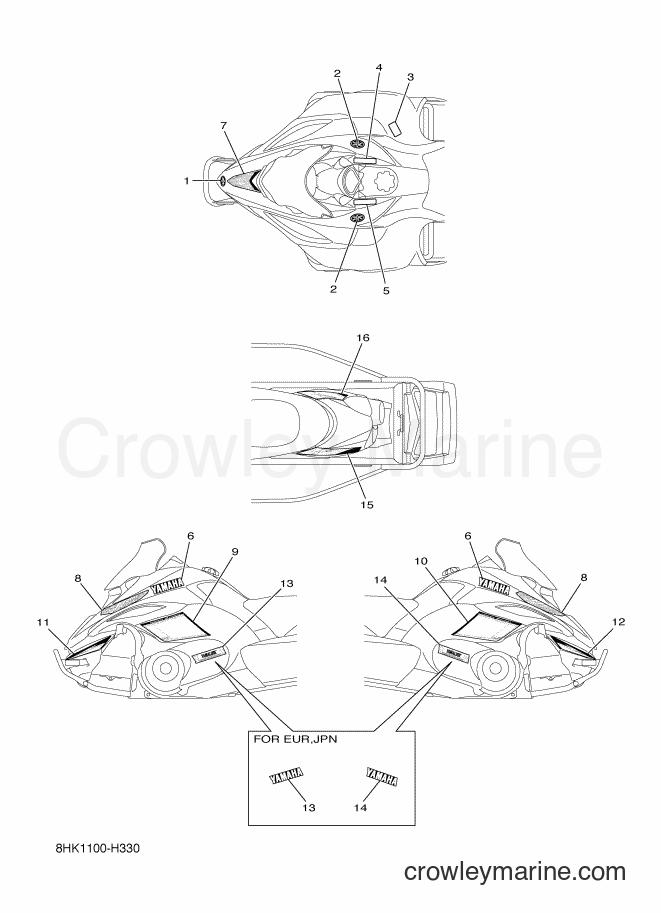

2009 Snowmobile RFX10RSS - RFX10RSS (8HK2) [010] EMBLEM diagram

1
Yamaha Motors
Tuning Fork Mark8GC-2836B-02-00
Required: 1
TUNING FORK MARK
Supersedes: 8GC-2836B-01-00
$37.39
You save $6.60
$54.39
You save $9.60

3
Yamaha Motors
Warning Label8GL-77763-E1-00
Required: 1
LABEL, WARNING 3
$3.27
You save $0.58
3
Required: 1
LABEL, WARNING 3
Price unavailable

4
Yamaha Motors
LABEL, NOTICE WIND8ET-2815K-01-00
Required: 1
LABEL, NOTICE WINDSHIELD 1
Supersedes: 8ET-2815K-00-00
$7.22
You save $1.27

5
Yamaha Motors
LABEL, NOTICE WINDSHIELD 18ET-2815K-11-00
Required: 1
LABEL, NOTICE WINDSHIELD 1
Supersedes: 8ET-2815K-10-00
$5.52
You save $0.97

6
Yamaha Motors
YAMAHA EMBLEM8HK-2153A-00-00
Required: 2
EMBLEM, YAMAHA
$16.14
You save $2.85
$24.64
You save $4.35
$10.19
You save $1.80
$33.14
You save $5.85
$42.49
You save $7.50
$18.69
You save $3.30
$18.69
You save $3.30
$21.24
You save $3.75

13
Yamaha Motors
YAMAHA EMBLEM8GL-2153A-20-00
Required: 1
EMBLEM, YAMAHA
$14.87
You save $2.62

14
Yamaha Motors
YAMAHA EMBLEM8GL-2153A-20-00
Required: 1
EMBLEM, YAMAHA
$14.87
You save $2.62
$21.24
You save $3.75
$22.09
You save $3.90
$16.06
You save $2.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
