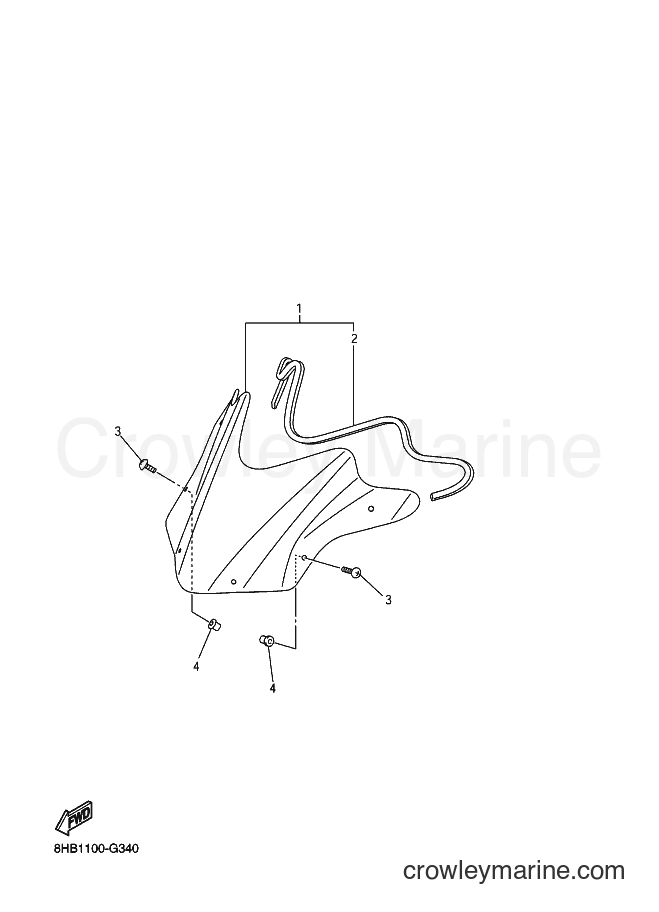

2008 Snowmobile RFX10RSA - RFX10RSA (8HB4) [010] WINDSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RFX10RSA (8HB4) [010] - WINDSHIELD
Change View:
1
Required: 1
WINDSCREEN COMP.
Price unavailable
FX NYTRO MED WNDSHLD
1
Yamaha Motors
FX NYTRO MED WNDSHLDSMA-8GL96-20-BK
Required: 1
WINDSCREEN COMP.
Supersedes: 8HB-K72A0-00-00
Cross Ship
Leaves in 2-5 days
$81.95
$69.66
You save $12.29
More details
2
Required: 1
. TRIM, UPPER
Price unavailable
2
Required: 1
. TRIM, UPPER
Price unavailable
PLASTIC SCREW
3
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 6
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
SPECIAL SHAPE NUT
4
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 6
NUT
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
