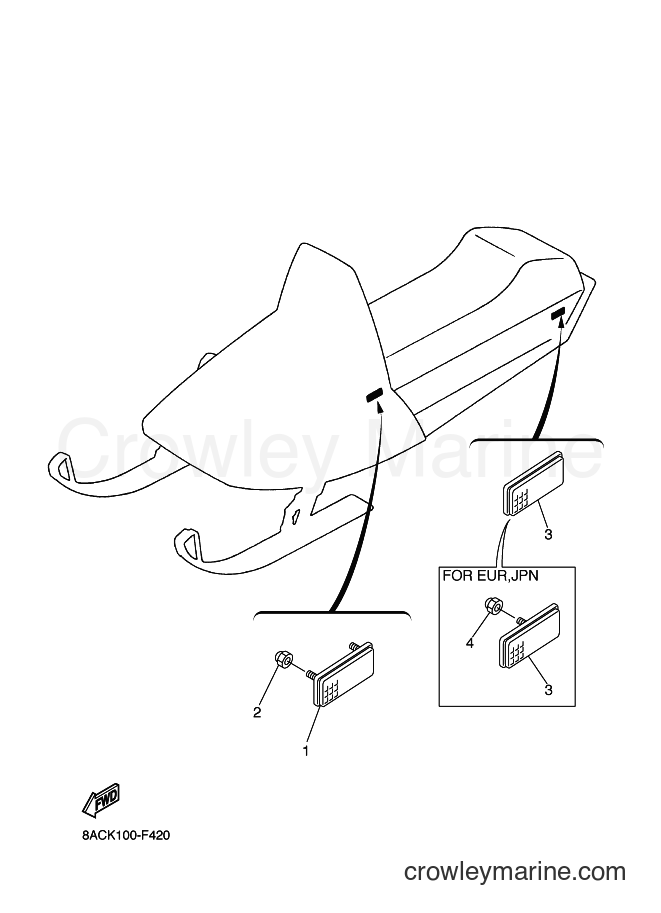

2007 Snowmobile VK540EIII - VK540EIII (8ACK) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VK540EIII (8ACK) [010] - ELECTRICAL 2
Change View:
FRONT,REFLECT. ASY
1
Yamaha Motors
FRONT,REFLECT. ASY86R-85110-00-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
U Flange Nut
2
Yamaha Motors
U Flange Nut95607-05200-00
Required: 4
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
REAR REFLECTOR ASSEMBLY
3
Yamaha Motors
REAR REFLECTOR ASSEMBLY81G-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
FRONT REFLECTOR ASSEMBLY
3
Yamaha Motors
FRONT REFLECTOR ASSEMBLY11H-85110-01-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$26.34
You save $4.65
More details
Flange Nut
4
Yamaha Motors
Flange Nut95702-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
