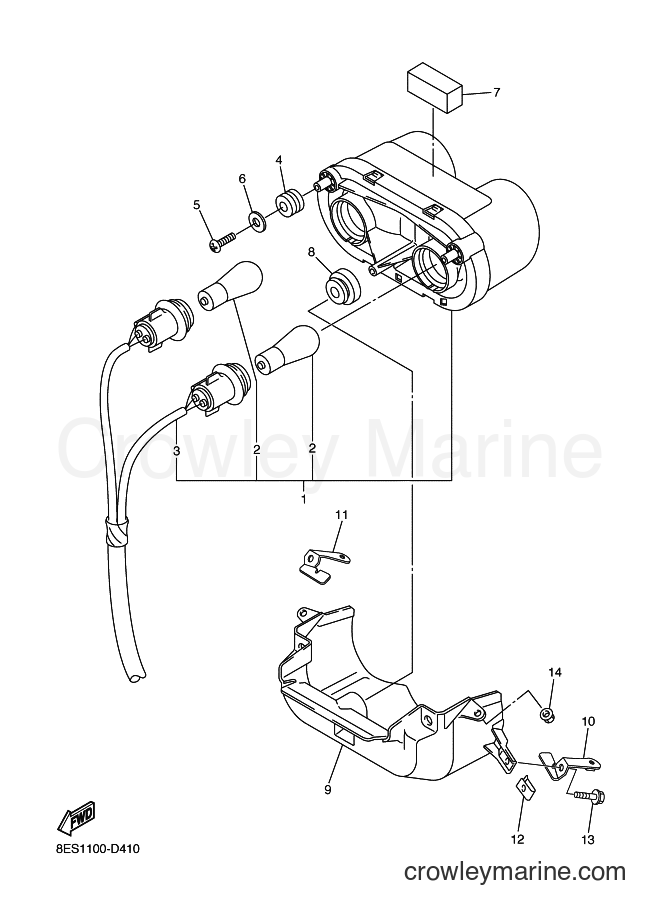

2006 Snowmobile RS10S - RS10S (8GF1) [020] TAILLIGHT diagram
![Yamaha Motors RS10S (8GF1) [020] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/Zs7RaiyX.png)
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY5JJ-84710-12-00
Required: 1
TAILLIGHT UNIT ASSY
Supersedes: 5JJ-84710-11-00
$133.44
You save $23.55
2
Yamaha Motors
Bulb1A2-84714-50-00
Required: 2
. BULB (12V-21/5W)
Supersedes: 1A2-84714-41-00
In stock
Only 3 remaining
$13.17
You save $2.32
3
Yamaha Motors
CORD ASSEMBLY5JJ-84755-00-00
Required: 1
. CORD ASSY
Supersedes: 5JJ-84735-00-00
$25.49
You save $4.50
$7.22
You save $1.27
In stock
Only 4 remaining
$1.57
You save $0.28
6
Yamaha Motors
Plate Washer90201-05725-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57
$2.25
You save $0.40
$8.07
You save $1.42
9
Yamaha Motors
TAIL LIGHT BRACKET8FA-2117E-00-00
Required: 1
BRACKET, TAILLIGHT
$25.49
You save $4.50
10
Yamaha Motors
Front Bracket8ES-77531-00-00
Required: 1
BRACKET, FRONT
$6.37
You save $1.12
11
Yamaha Motors
FRONT BRACKET (RH)8ES-77532-00-00
Required: 1
BRACKET, FRONT (R.H)
$6.37
You save $1.12
12
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 2
NUT, SPRING
Supersedes: 90183-06053-00
In stock
Only 2 remaining
$6.37
You save $1.12
13
Yamaha Motors
Flange Bolt95817-06014-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
14
Yamaha Motors
95604-06200-0095607-06200-00
Required: 2
NUT, SELF U-FLANGE
$11.47
You save $2.02
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
