2005 Snowmobile SXV700 - SXV700 (8FB7) [010] BUMPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

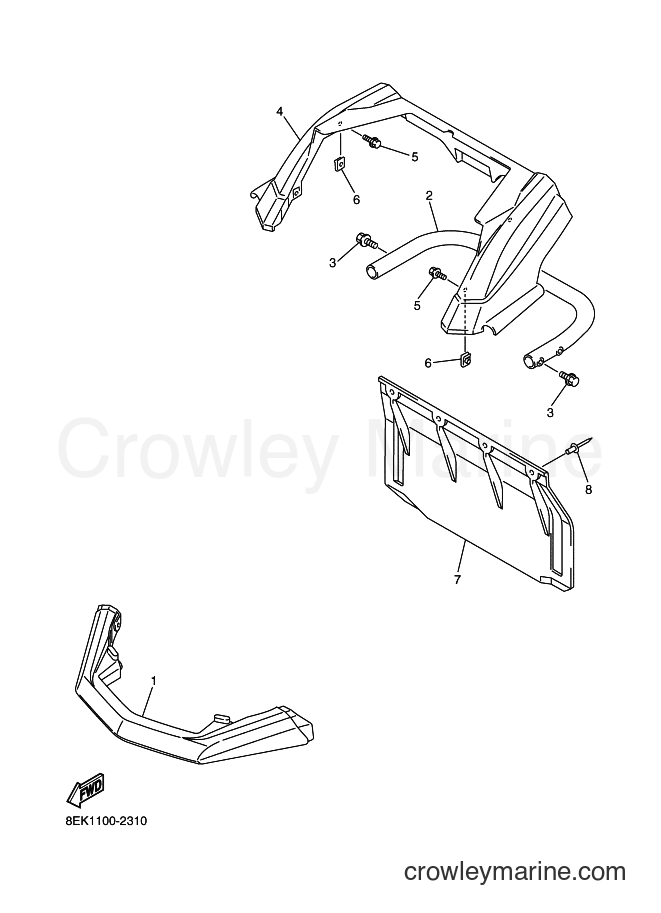

Yamaha Motors SXV700 (8FB7) [010] - BUMPER

Change View:

Yamaha Motors

Front Bumper8EK-77511-00-00

Required: 1

BUMPER, FRONT 1

~~$240.78~~

$204.66

You save $36.12

More details

Yamaha Motors

Rear Bumper8EK-77541-01-00

Required: 1

BUMPER, REAR 1

Supersedes: 8EK-77541-00-00

~~$77.99~~

$66.29

You save $11.70

More details

Yamaha Motors

Flange Bolt95827-08016-00

Required: 4

BOLT, FLANGE

~~$1.60~~

$1.36

You save $0.24

More details

Yamaha Motors

Rear Bumper8EK-77542-00-00

Required: 1

BUMPER, REAR 2

~~$218.27~~

$185.53

You save $32.74

More details

Yamaha Motors

Flange Bolt95807-06016-00

Required: 4

BOLT, FLANGE

~~$0.99~~

$0.84

You save $0.15

More details

Yamaha Motors

Spring Nut (4ES)90183-06069-00

Required: 4

NUT, SPRING

Supersedes: 90183-06053-00

In stock

Only 2 remaining

~~$7.49~~

$6.37

You save $1.12

More details

Required: 1

FLAP

Price unavailable

Yamaha Motors

BLIND RIVET90267-47187-00

Required: 4

RIVET, BLIND

~~$2.50~~

$2.13

You save $0.38

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
