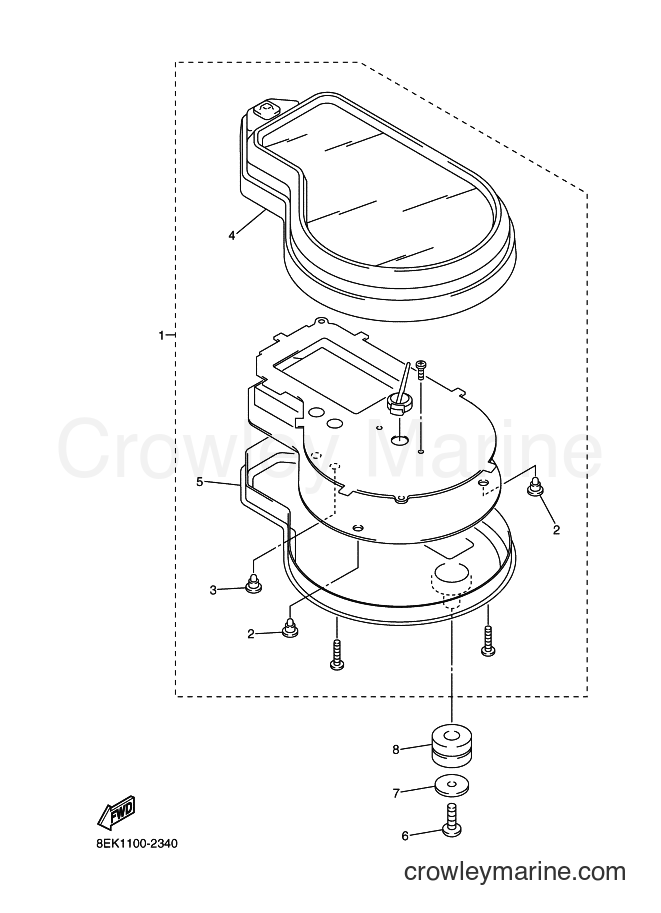

2003 Snowmobile SXV70ER - SXV70ER (8FB3) [020] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SXV70ER (8FB3) [020] - METER
Change View:
SPEEDOMETER ASSEMBLY (KM/H)
1
Yamaha Motors
SPEEDOMETER ASSEMBLY (KM/H)8EK-83500-11-00
Required: 1
SPEEDOMETER ASSY
Supersedes: 8EK-83500-00-00
Cross Ship
Leaves in 2-5 days
$790.99
$672.34
You save $118.65
More details
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
METER BULB
2
Yamaha Motors
METER BULB5JA-83517-00-00
Required: 6
. BULB (T3 14V-50MA)
Supersedes: 4WM-83517-00-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
BULB (T3.4 12V-80MA)
3
Yamaha Motors
BULB (T3.4 12V-80MA)4WM-83517-10-00
Required: 2
. BULB (T3.4 14V-80MA)
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
UPPER METER CASE
4
Yamaha Motors
UPPER METER CASE8EK-8353E-01-00
Required: 1
. CASE, METER UPPER
Supersedes: 8EK-8353E-00-00
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
SPEEDOMETER LOWER CASE
5
Yamaha Motors
SPEEDOMETER LOWER CASE8EK-83572-01-00
Required: 1
. CASE, SPEEDOMETER LOWER
Supersedes: 8EK-83572-00-00
Cross Ship
Leaves in 2-5 days
$59.99
$50.99
You save $9.00
More details
Plate Washer
7
Yamaha Motors
Plate Washer90201-061A5-00
Required: 3
WASHER, PLATE
Supersedes: 90201-05036-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
DAMPER 2
8
Yamaha Motors
DAMPER 24XV-83513-00-00
Required: 3
DAMPER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
