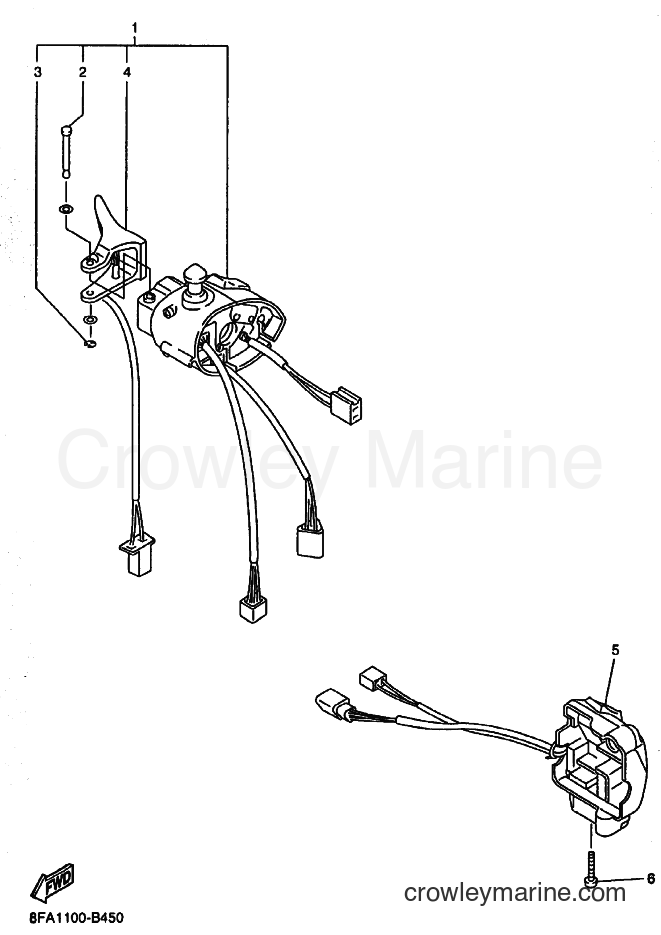

2003 Snowmobile RX10 - RX10 (8FA2) [020] HANDLE SWITCH. LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors RX10 (8FA2) [020] - HANDLE SWITCH. LEVER

Change View:

Yamaha Motors

Lever Holder Assembly8FA-82720-03-00

Required: 1

LEVER HOLDER ASSY (RIGHT)

Supersedes: 8FA-82720-00-00

~~$280.99~~

$238.84

You save $42.15

. SHAFT

~~$15.49~~

$13.17

You save $2.32

. CIRCLIP

Supersedes: 99001-04600-00

In stock

Only 3 remaining

~~$1.99~~

$1.69

You save $0.30

More details

Yamaha Motors

THUMB WARMER ASSEMBLY8FA-82970-01-00

Required: 1

. THUMB WARMER ASSY

Supersedes: 8FA-82970-00-00

~~$102.99~~

$87.54

You save $15.45

More details

Yamaha Motors

HANDLE SWITCH 38FA-83973-01-00

Required: 1

SWITCH, HANDLE 3

Supersedes: 8FA-83973-00-00

~~$197.99~~

$168.29

You save $29.70

More details

Yamaha Motors

Pan Head Screw98507-05016-00

Required: 2

SCREW, PAN HEAD

In stock

Only 4 remaining

~~$1.80~~

$1.53

You save $0.27

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
