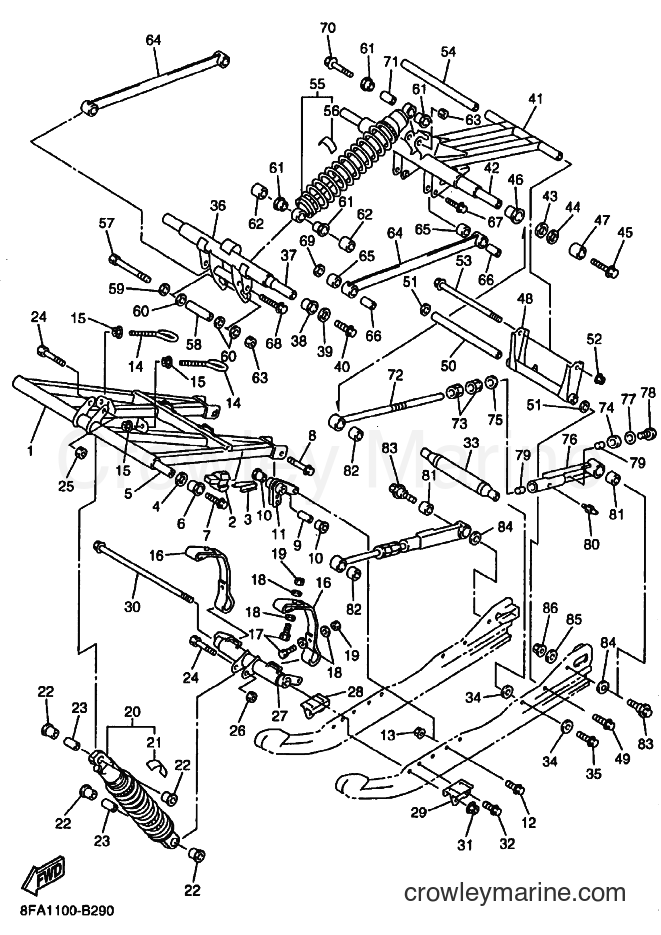

2003 Snowmobile RX10M - RX10M (8EP1) [020] TRACK SUSPENSION 2 diagram
$396.09
You save $69.90
$29.74
You save $5.25
$28.89
You save $5.10

4
Yamaha Motors
Plate Washer90201-210U0-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72
$78.19
You save $13.80
$14.87
You save $2.62

7
Yamaha Motors
BOLT90109-10771-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-103A1-00
$5.52
You save $0.97

8
Yamaha Motors
Flange Bolt90105-10029-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10769-00
$3.23
You save $0.57
$22.09
You save $3.90
$8.92
You save $1.57
$28.89
You save $5.10
In stock
Only 1 remaining
$8.07
You save $1.42
In stock
5+ in stock
$3.53
You save $0.62
$15.29
You save $2.70
$1.66
You save $0.29
$63.74
You save $11.25

17
Yamaha Motors
Bolt97017-06025-00
Required: 4
BOLT
Supersedes: 97007-06025-00
$3.87
You save $0.68

18
Yamaha Motors
Plate Washer90201-06747-00
Required: 8
WASHER, PLATE
$8.07
You save $1.42
$3.19
You save $0.56
20
Required: 1
SHOCK ABSORBER 2
Price unavailable

20
Yamaha Motors
SHOCK ABSORBER 28FA-47481-01-00
Required: 1
SHOCK ABSORBER 2
Supersedes: 8FA-47481-00-00
$612.84
You save $108.15
20
Required: 1
SHOCK ABSORBER 2
Price unavailable

21
Yamaha Motors
Warning Label4AA-22259-50-00
Required: 1
. LABEL, WARNING
$6.37
You save $1.12

21
Yamaha Motors
Warning Label4AA-22259-40-00
Required: 1
. LABEL, WARNING
$6.37
You save $1.12

21
Yamaha Motors
Label (Warning)4AA-22259-60-00
Required: 1
. LABEL, WARNING
Supersedes: 4AA-22259-70-00
$6.37
You save $1.12
In stock
Only 4 remaining
$8.07
You save $1.42
$9.77
You save $1.72
$7.22
You save $1.27

25
Yamaha Motors
Self-Locking Nut90185-10120-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-10110-00
$5.52
You save $0.97

26
Yamaha Motors
NUT95617-10100-00
Required: 1
NUT, U
Supersedes: 95607-10100-00
$8.07
You save $1.42
$203.99
You save $36.00
$19.54
You save $3.45
$22.94
You save $4.05
$10.62
You save $1.87
In stock
5+ in stock
$3.53
You save $0.62
32
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-08450-00
In stock
Only 1 remaining
$8.92
You save $1.57
$38.24
You save $6.75

34
Yamaha Motors
Plain Washer90201-106F2-00
Required: 4
WASHER, PLATE
Supersedes: 90201-100L3-00
$9.77
You save $1.72

35
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10433-00
$8.07
You save $1.42
$123.24
You save $21.75
$92.64
You save $16.35
$10.62
You save $1.87

39
Yamaha Motors
Plain Washer90201-207J5-00
Required: 2
WASHER, PLATE
$2.38
You save $0.42

40
Yamaha Motors
BOLT90109-10771-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-103A1-00
$5.52
You save $0.97
$201.44
You save $35.55

42
Yamaha Motors
Shaft 28FU-47475-00-00
Required: 1
SHAFT 2
Supersedes: 8FA-47475-00-00
$100.29
You save $17.70

43
Yamaha Motors
Plate Washer90201-251G8-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42

44
Yamaha Motors
Plate Washer90201-250T6-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42

45
Yamaha Motors
BOLT90109-10771-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-103A1-00
$5.52
You save $0.97
$14.87
You save $2.62
$3.32
You save $0.58
$47.59
You save $8.40

49
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10433-00
$8.07
You save $1.42
$43.34
You save $7.65

51
Yamaha Motors
Plate Washer90201-10136-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72

52
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
$5.09
You save $0.90
$9.77
You save $1.72

55
Yamaha Motors
Shock Absorber8FA-47480-00-00
Required: 1
SHOCK ABSORBER
$556.74
You save $98.25
55
Required: 1
SHOCK ABSORBER
Price unavailable
55
Required: 1
SHOCK ABSORBER
Price unavailable

56
Yamaha Motors
Warning Label4AA-22259-40-00
Required: 1
. LABEL, WARNING
$6.37
You save $1.12

56
Yamaha Motors
Warning Label4AA-22259-50-00
Required: 1
. LABEL, WARNING
$6.37
You save $1.12

56
Yamaha Motors
Label (Warning)4AA-22259-60-00
Required: 1
. LABEL, WARNING
$6.37
You save $1.12

57
Yamaha Motors
ADJUSTING BOLT8AC-4631K-00-00
Required: 1
BOLT, ADJUSTING
$33.99
You save $6.00
$19.54
You save $3.45

59
Yamaha Motors
Plain Washer90201-10039-00
Required: 1
WASHER, PLATE
Supersedes: 90201-103U4-00
$7.22
You save $1.27

60
Yamaha Motors
Plain Washer90201-100U1-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
In stock
Only 4 remaining
$8.07
You save $1.42
$33.99
You save $6.00

63
Yamaha Motors
NUT95617-10100-00
Required: 2
NUT, U
Supersedes: 95607-10100-00
$8.07
You save $1.42
$72.24
You save $12.75
$8.92
You save $1.57
$3.49
You save $0.62

67
Yamaha Motors
Flange Bolt95817-10035-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10739-00
$8.07
You save $1.42

68
Yamaha Motors
Flange Bolt95814-10040-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10436-00
$4.67
You save $0.82

69
Yamaha Motors
Plain Washer90201-100U1-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
$7.22
You save $1.27
$9.77
You save $1.72

72
Yamaha Motors
Control Rod8FA-4745A-01-00
Required: 2
ROD, CONTROL 1
Supersedes: 8FA-4745A-00-00
$101.99
You save $18.00

73
Yamaha Motors
CONTROL ROD8EK-4745C-00-00
Required: 4
ROD, CONTROL 3
$16.99
You save $3.00

74
Yamaha Motors
Plain Washer90202-16232-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42

75
Yamaha Motors
Plate Washer90202-16229-00
Required: 2
WASHER, PLATE
$2.17
You save $0.38

76
Yamaha Motors
CONTROL ROD8CR-4745B-00-00
Required: 2
ROD, CONTROL 2
$55.24
You save $9.75

77
Yamaha Motors
Plain Washer90201-106F2-00
Required: 2
WASHER, PLATE
$9.77
You save $1.72

78
Yamaha Motors
Bolt (59V)97017-10025-00
Required: 2
BOLT
Supersedes: 97027-10025-00
$8.07
You save $1.42

79
Yamaha Motors
BIMETAL FROM BUSH90384-16251-00
Required: 4
BUSH, BIMETAL FORMED
$7.22
You save $1.27

80
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 2
NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.01
You save $1.24
$24.64
You save $4.35
$28.04
You save $4.95

83
Yamaha Motors
REAR PIVOT SCREW8DF-47367-09-00
Required: 2
SCREW, REAR PIVOT
Supersedes: 8DF-47367-00-00
$20.39
You save $3.60

84
Yamaha Motors
Plate Washer90201-100S2-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42

85
Yamaha Motors
Plate Washer90201-101U2-00
Required: 2
WASHER, PLATE
$7.22
You save $1.27
In stock
5+ in stock
$3.53
You save $0.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
