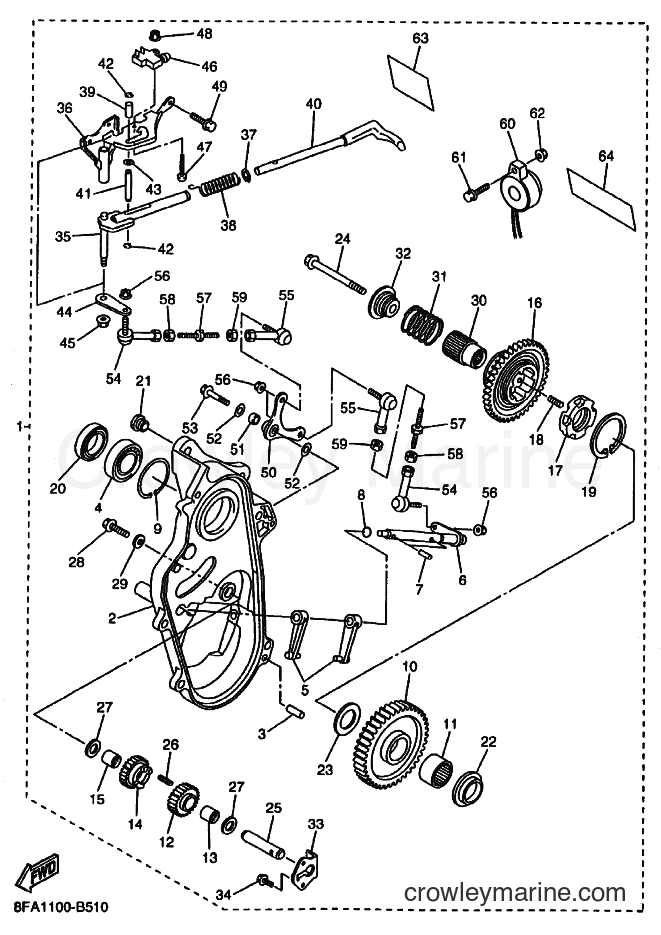

2003 Snowmobile RX10M - RX10M (8EP2) [010] ALTERNATE FOR DRIVE diagram

1
Yamaha Motors
8EP-W4759-20-008EP-W4759-10-00
Required: 1
REVERSE GEAR KIT
Supersedes: 8EP-W4759-00-00
$874.61
You save $154.34

1
Yamaha Motors
REVERSE GEAR KIT8FA-W4759-00-00
Required: 1
REVERSE GEAR KIT
$600.06
You save $105.89

2
Yamaha Motors
Housing Cap8ER-47543-01-00
Required: 1
. CAP, HOUSING
Supersedes: 8ER-47543-00-00
$213.34
You save $37.65

3
Yamaha Motors
Dowel Pin93606-20044-00
Required: 2
. PIN, DOWEL
$3.27
You save $0.58

4
Yamaha Motors
BEARING93306-20532-00
Required: 1
. BEARING
Supersedes: 93306-20511-00
$62.04
You save $10.95

5
Yamaha Motors
Shift Fork8ER-18511-00-00
Required: 2
. FORK, SHIFT 1
Supersedes: 8CW-18511-00-00
$71.39
You save $12.60

6
Yamaha Motors
Shaft8ER-18197-10-00
Required: 1
. SHAFT
Supersedes: 8ER-18197-00-00
$26.34
You save $4.65

7
Yamaha Motors
Spring Pin91609-50022-00
Required: 2
. PIN, SPRING
$8.07
You save $1.42
$8.07
You save $1.42
In stock
Only 1 remaining
$11.47
You save $2.02

10
Yamaha Motors
Chain Drive Sprocket8FB-47587-90-00
Required: 1
. SPROCKET, CHAIN DRIVEN (39T)
$164.89
You save $29.10

10
Yamaha Motors
Driven Socket 38T8FB-47587-80-00
Required: 1
. SPROCKET, CHAIN DRIVEN (38T)
$163.19
You save $28.80
$45.04
You save $7.95

12
Yamaha Motors
DRIVE SPROCKET8FB-17692-00-00
Required: 1
. SPROCKET, DRIVE (18T)
$81.59
You save $14.40
$42.49
You save $7.50

14
Yamaha Motors
Reverse Gear Subassembly8CW-W1714-00-00
Required: 1
. GEAR, REVERSE PINION 1 (18T)
Supersedes: 8CW-17143-00-00
$232.89
You save $41.10
$42.49
You save $7.50

16
Yamaha Motors
GEAR, REV. WHEEL 18CW-17243-00-00
Required: 1
. GEAR, REVERSE WHEEL 1 (50T)
$281.34
You save $49.65

17
Yamaha Motors
TRANS SHIFT DOG8CW-17492-00-00
Required: 1
. DOG, TRANSMISSION SHIFT
$187.84
You save $33.15

18
Yamaha Motors
Compression Spring90501-066J5-00
Required: 5
. SPRING, COMPRESSION
$2.21
You save $0.39
$19.54
You save $3.45
$31.44
You save $5.55
$7.22
You save $1.27
$28.04
You save $4.95

23
Yamaha Motors
Plate Washer90201-320S3-00
Required: 1
. WASHER, PLATE
$8.07
You save $1.42

24
Yamaha Motors
Flange Bolt95817-10070-00
Required: 1
. BOLT, FLANGE
Supersedes: 90105-10068-00
$5.52
You save $0.97
$58.64
You save $10.35

26
Yamaha Motors
Compression Spring90501-06022-00
Required: 1
. SPRING, COMPRESSION
$8.07
You save $1.42

27
Yamaha Motors
Plate Washer90201-16245-00
Required: 2
. WASHER, PLATE
$9.77
You save $1.72
28
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
. BOLT, FLANGE
Supersedes: 90105-060A6-00
$1.66
You save $0.29

29
Yamaha Motors
Seal Washer90210-06006-00
Required: 1
. WASHER, SEAL
$8.92
You save $1.57
$140.24
You save $24.75

31
Yamaha Motors
COMPRESSION SPRING90501-260A0-00
Required: 1
. SPRING, COMPRESSION
$7.22
You save $1.27

32
Yamaha Motors
COLLAR8CW-47564-01-00
Required: 1
. COLLAR
Supersedes: 8CW-47564-00-00
$31.44
You save $5.55
$11.47
You save $2.02
34
Yamaha Motors
Flange Bolt95817-06016-00
Required: 2
. BOLT, FLANGE
Supersedes: 90105-060A6-00
$1.66
You save $0.29

35
Yamaha Motors
SHIFT ARM99999-03546-00
Required: 1
. ARM, SHIFT
Supersedes: 8ER-18112-00-00
$83.29
You save $14.70

36
Yamaha Motors
STOPPER PLATE GUIDE8ER-18161-00-00
Required: 1
. GUIDE, PLATE STOPPER
$52.69
You save $9.30
$8.07
You save $1.42

38
Yamaha Motors
Compression Spring90501-130A0-00
Required: 1
. SPRING, COMPRESSION
$2.46
You save $0.44
$29.74
You save $5.25

40
Yamaha Motors
LEVER KNOB8ER-18174-00-00
Required: 1
. KNOB, SHIFT LEVER
$71.39
You save $12.60
$13.17
You save $2.32
$7.22
You save $1.27

43
Yamaha Motors
Plate Washer90201-067F9-00
Required: 1
. WASHER, PLATE
$3.78
You save $0.67

44
Yamaha Motors
SHIFT ARM PLATE8ER-1811A-00-00
Required: 1
. PLATE, SHIFT ARM
$5.09
You save $0.90

45
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 1
. NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
$117.29
You save $20.70
$0.42
You save $0.08

48
Yamaha Motors
U-Nut (6E8)95617-04100-00
Required: 1
. NUT, U
Supersedes: 95607-04100-00
$8.92
You save $1.57
49
Yamaha Motors
Flange Bolt95817-08020-00
Required: 3
. BOLT, FLANGE
Supersedes: 95827-08020-00
In stock
Only 1 remaining
$8.92
You save $1.57
$16.99
You save $3.00

51
Yamaha Motors
COLLAR90387-06197-00
Required: 1
. COLLAR
Supersedes: 90387-0608T-00
$8.07
You save $1.42

52
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
. WASHER, PLATE
$1.66
You save $0.29
53
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
. BOLT, FLANGE
$3.95
You save $0.70

54
Yamaha Motors
UNIVERSAL JOINTJ45-23845-00-00
Required: 2
. JOINT, UNIVERSAL 2
$43.34
You save $7.65
$39.09
You save $6.90

56
Yamaha Motors
95604-06200-0095607-06200-00
Required: 4
. NUT, SELF U-FLANGE
$11.47
You save $2.02
$14.02
You save $2.47

58
Yamaha Motors
Hexagon Nut95314-06600-00
Required: 2
. NUT
Supersedes: 95304-06600-00
$2.13
You save $0.38
$1.23
You save $0.22
$126.64
You save $22.35

61
Yamaha Motors
Bolt (3JK)97027-05020-00
Required: 1
. BOLT
Supersedes: 97007-05020-00
$3.02
You save $0.53

62
Yamaha Motors
Flange Nut95707-05500-00
Required: 1
. NUT, FLANGE
$8.07
You save $1.42

63
Yamaha Motors
Warning Label8ER-77763-E0-00
Required: 1
. LABEL, WARNING 3
$3.32
You save $0.58

64
Yamaha Motors
Warning Label8FB-77761-E0-00
Required: 1
. LABEL, WARNING 1
$10.62
You save $1.87
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
