All diagrams for this model

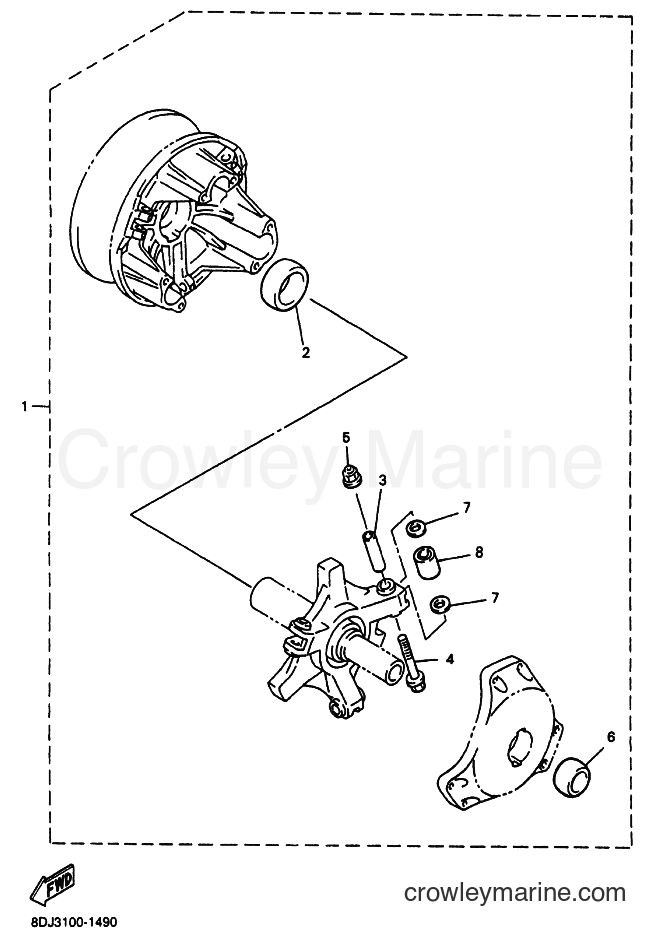

2002 Snowmobile VX700LT - VX700LT (8ED3) [040] ALTERNATE (DRIVE) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX700LT (8ED3) [040] - ALTERNATE (DRIVE)
Change View:
CLUTCH TUNE-UP KIT
1
Yamaha Motors
CLUTCH TUNE-UP KIT8CS-00000-51-00
Required: 1
CLUTCH TUNE-UP KIT
Cross Ship
Leaves in 2-5 days
$223.99
$190.39
You save $33.60
More details
BIMETAL FROM BUSH
2
Yamaha Motors
BIMETAL FROM BUSH90384-41242-00
Required: 1
. BUSH, BIMETAL FORMED
Cross Ship
Leaves in 2-5 days
$65.99
$56.09
You save $9.90
More details
COLLAR
3
Yamaha Motors
COLLAR90387-0514U-00
Required: 3
. COLLAR
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
Washer Based Bolt
4
Yamaha Motors
Washer Based Bolt90105-05644-00
Required: 3
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
U Flange Nut
5
Yamaha Motors
U Flange Nut95607-05200-00
Required: 3
. NUT, S/L FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
SOLID BUSH
6
Yamaha Motors
SOLID BUSH90380-28237-00
Required: 1
. BUSH, SOLID
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
Plate Washer
7
Yamaha Motors
Plate Washer90202-09227-00
Required: 6
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Roller Comp.
8
Yamaha Motors
Roller Comp.8CR-17624-00-00
Required: 3
. ROLLER, COMP
Cross Ship
Leaves in 2-5 days
$68.99
$58.64
You save $10.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
