All diagrams for this model

2001 Snowmobile VT700 - VT700 (8DM4) [020] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

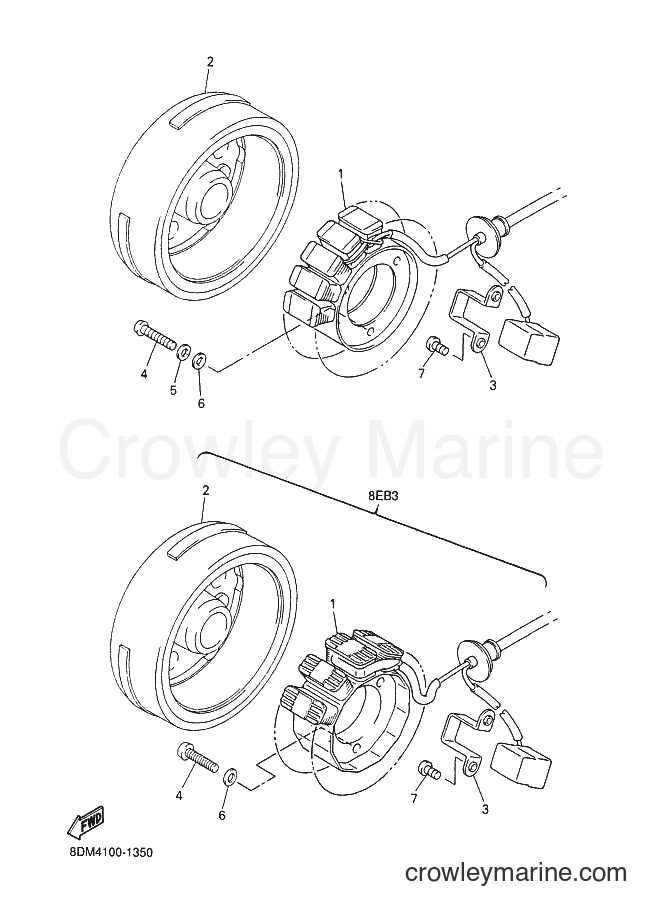

Yamaha Motors VT700 (8DM4) [020] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly8DM-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$319.99
$271.99
You save $48.00
More details
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly8CH-85510-02-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$429.99
$365.49
You save $64.50
More details
ROTOR ASSEMBLY
2
Yamaha Motors
ROTOR ASSEMBLY8CH-85550-01-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$429.99
$365.49
You save $64.50
More details
Rotor Assembly
2
Yamaha Motors
Rotor Assembly8DM-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$443.99
$377.39
You save $66.60
More details
Clamp
3
Yamaha Motors
Clamp90465-10385-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Pan Head Screw
7
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
