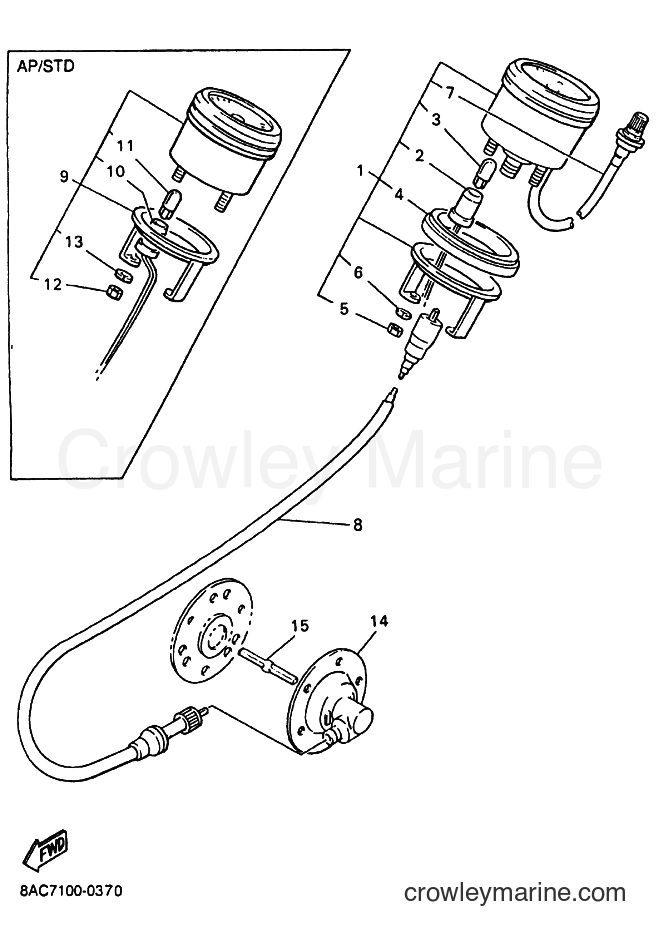

2001 Snowmobile VK540E-3 - VK540E-3 (8AC8) [040] METER diagram
![Yamaha Motors VK540E-3 (8AC8) [040] - METER](https://cdn.crowleymarine.com/yamaha/zQDd1EPm.png)
1
Required: 1
SPEEDOMETER ASSY (KM/H)
Price unavailable
2
Yamaha Motors
Socket Cord Assembly5E2-83509-20-00
Required: 1
. SOCKET, METER
Supersedes: 8V7-83536-40-00
$27.19
You save $4.80
3
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
. BULB (12V-3.4W T10)
Supersedes: 4R0-83517-00-00
$5.09
You save $0.90
$8.92
You save $1.57
5
Yamaha Motors
Nut95380-05600-00
Required: 2
. NUT, HEXAGON
Supersedes: 95302-05600-00
In stock
Only 5 remaining
$8.07
You save $1.42
6
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
. WASHER, SPRING
In stock
Only 2 remaining
$1.31
You save $0.23
7
Yamaha Motors
TRIP METER CABLE ASSEMBLY8K1-83603-01-00
Required: 1
. TRIP METER CABLE ASSY
Supersedes: 8K1-83603-00-00
$64.59
You save $11.40
8
Yamaha Motors
TACHOMETER CABLE8H4-83560-00-00
Required: 1
METER CABLE ASSY
$60.34
You save $10.65
9
Yamaha Motors
TACHOMETER SET KIT85L-83540-00-00
Required: 1
TACHOMETER ASSY
$285.59
You save $50.40
10
Yamaha Motors
Socket Cord Assembly85L-83509-00-00
Required: 1
. SOCKET CORD ASSY
$22.94
You save $4.05
11
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
. BULB (12V-3.4W T10)
Supersedes: 4R0-83517-00-00
$5.09
You save $0.90
In stock
Only 5 remaining
$8.07
You save $1.42
13
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
. WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
14
Yamaha Motors
Meter Gear Housing83R-47700-00-00
Required: 1
METER GEAR HOUSING COMP.
$141.94
You save $25.05
In stock
Only 2 remaining
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
