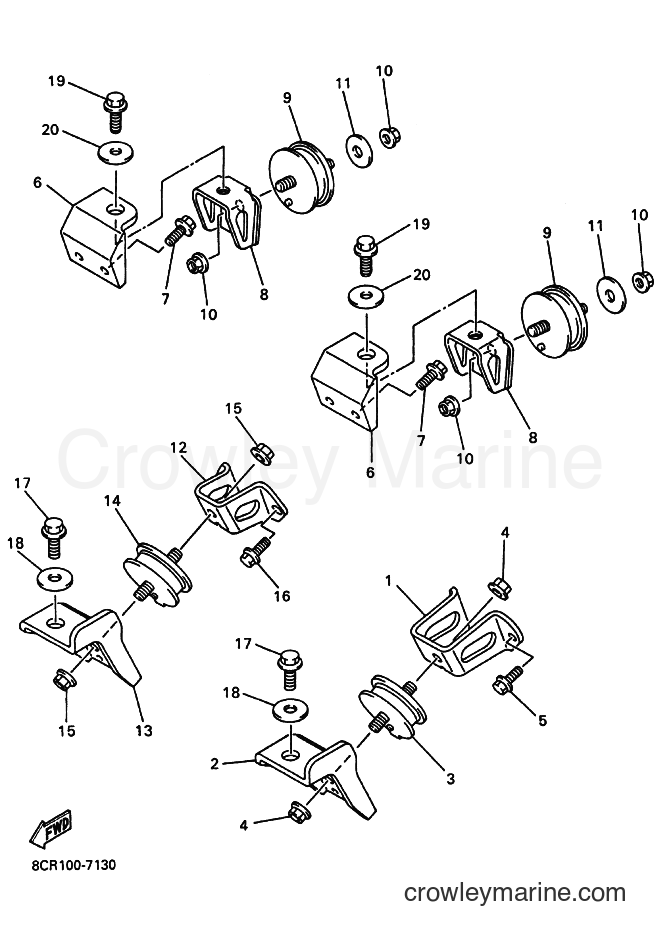

2000 Snowmobile SX500R - SX500R (8CT2) [020] ENGINE BRACKET diagram
![Yamaha Motors SX500R (8CT2) [020] - ENGINE BRACKET](https://cdn.crowleymarine.com/yamaha/mI9PR5IO.png)
1
Yamaha Motors
Front Upper Bracket8CR-21415-00-00
Required: 1
BRACKET, FRONT UPPER 1
$18.69
You save $3.30
2
Yamaha Motors
Front Lower Bracket 18CR-21417-00-00
Required: 1
BRACKET, FRONT LOWER 1
$28.89
You save $5.10
$33.99
You save $6.00
In stock
Only 3 remaining
$1.83
You save $0.32
5
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-083A2-00
In stock
Only 1 remaining
$8.92
You save $1.57
6
Yamaha Motors
REAR UPPER BRACKET 18CR-21425-00-00
Required: 2
BRACKET, REAR UPPER 1
$36.54
You save $6.45
7
Yamaha Motors
Flange Bolt95817-08020-00
Required: 4
BOLT, FLANGE
Supersedes: 90105-083A2-00
In stock
Only 1 remaining
$8.92
You save $1.57
8
Yamaha Motors
RR LOWER BRACKET8CR-21427-01-00
Required: 2
BRACKET, REAR LOWER 1
$16.14
You save $2.85
$33.99
You save $6.00
In stock
Only 3 remaining
$1.83
You save $0.32
11
Yamaha Motors
Plate Washer90201-10321-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
12
Yamaha Motors
FRONT UPPER BRACKET 28CR-21416-00-00
Required: 1
BRACKET, FRONT UPPER 2
$34.11
You save $6.02
13
Yamaha Motors
Front Lower Bracket 18CR-21417-00-00
Required: 1
BRACKET, FRONT LOWER 1
$28.89
You save $5.10
$33.99
You save $6.00
In stock
Only 3 remaining
$1.83
You save $0.32
16
Yamaha Motors
Flange Bolt95817-08020-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-083A2-00
In stock
Only 1 remaining
$8.92
You save $1.57
17
Yamaha Motors
Flange Bolt95817-12030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-12030-00
$7.64
You save $1.35
18
Yamaha Motors
Plain Washer90201-120U9-00
Required: 2
WASHER, PLATE
$3.57
You save $0.63
In stock
Only 1 remaining
$8.07
You save $1.42
20
Yamaha Motors
Plate Washer90201-10321-00
Required: 2
WASHER, PLATE
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
