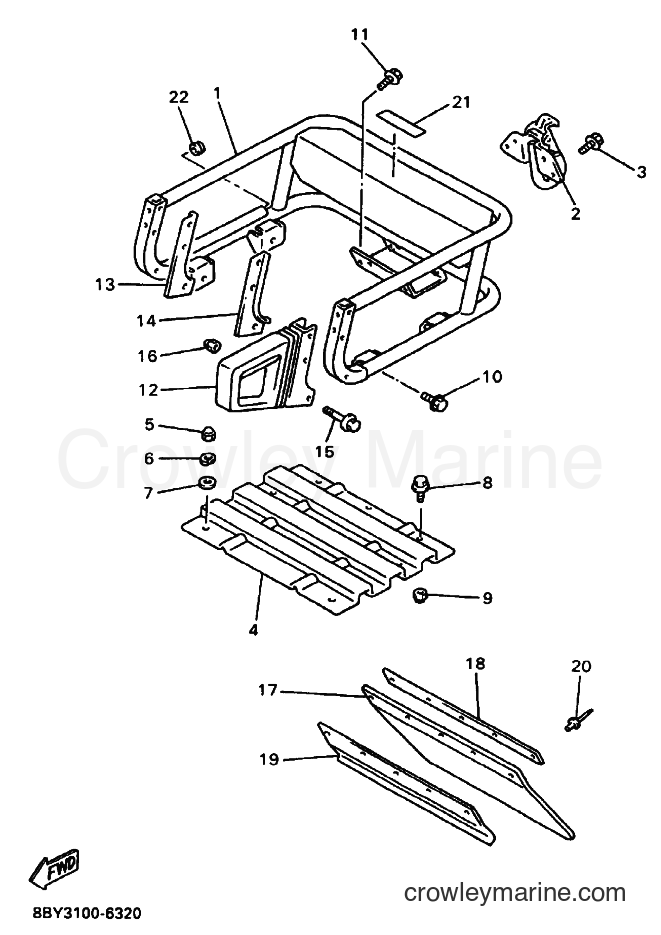

2000 Snowmobile ET410TR - ET410TR (8BY7) [030] BUMPER diagram

1
Yamaha Motors
Rear Bumper89X-77541-00-00
Required: 1
BUMPER, REAR 1
$499.79
You save $88.20

2
Yamaha Motors
BRACKET PIN HITCH84R-77592-00-00
Required: 1
BRACKET, HITCH 2
In stock
Only 1 remaining
$32.29
You save $5.70
3
Yamaha Motors
Flange Bolt95817-08020-00
Required: 4
BOLT, FLANGE
Supersedes: 95827-08020-00
In stock
Only 1 remaining
$8.92
You save $1.57
$48.44
You save $8.55
$7.22
You save $1.27

6
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
$8.07
You save $1.42

7
Yamaha Motors
WASHER92907-08600-00
Required: 4
WASHER, PLATE
$2.76
You save $0.49
$1.36
You save $0.24

9
Yamaha Motors
LOCK NUT95717-08300-00
Required: 3
NUT, NYLON
Supersedes: 95707-08300-00
$2.59
You save $0.46

10
Yamaha Motors
Flange Bolt95817-08014-00
Required: 4
BOLT, FLANGE
Supersedes: 95827-08014-00
$2.13
You save $0.38
$1.36
You save $0.24

12
Yamaha Motors
Assist Grip8X0-77571-00-00
Required: 2
GRIP, ASSIST 1
$152.14
You save $26.85
$1.53
You save $0.27
$1.70
You save $0.30
15
Yamaha Motors
Flange Bolt95817-08040-00
Required: 6
BOLT, FLANGE
Supersedes: 95807-08040-00
In stock
Only 2 remaining
$6.37
You save $1.12
$7.22
You save $1.27
$38.24
You save $6.75
$7.22
You save $1.27
$21.24
You save $3.75
$4.17
You save $0.74
$5.52
You save $0.97
$8.07
You save $1.42
$22.94
You save $4.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
