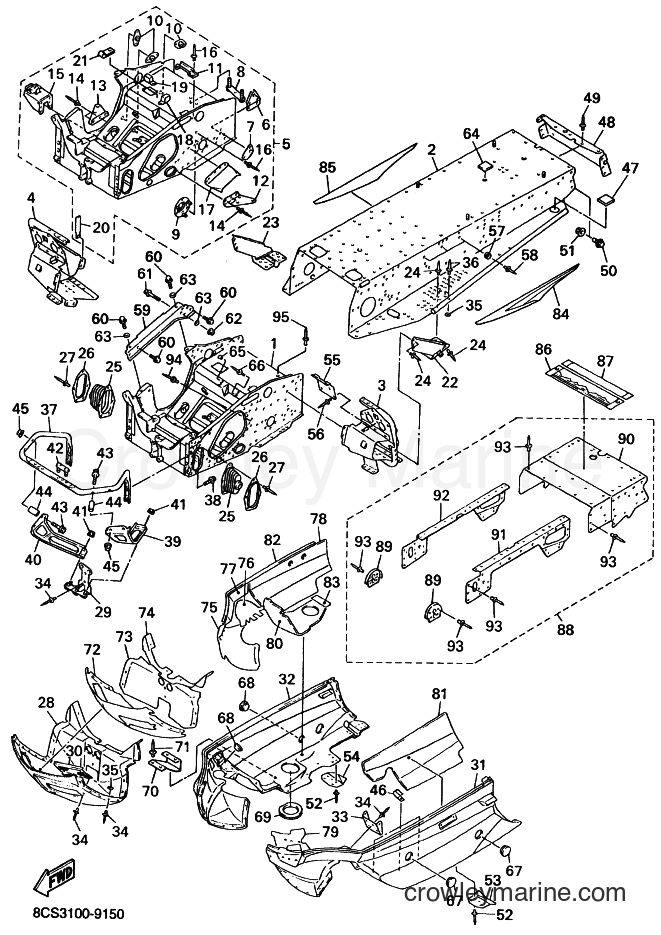

1999 Snowmobile VX600LT - VX600LT (8CS3) [010] FRAME diagram

1
Yamaha Motors
Front Frame Comp8CR-21940-07-00
Required: 1
FRONT FRAME COMP.
$2418.24
You save $426.75

2
Yamaha Motors
REAR FRAME COMP.8CR-21950-07-00
Required: 1
REAR FRAME COMP.
$1262.24
You save $222.75

3
Yamaha Motors
FOOTREST COMP. 18CR-21960-08-00
Required: 1
FOOTREST COMP. 1
$124.94
You save $22.05

4
Yamaha Motors
FOOTREST COMP. 28CR-21970-08-00
Required: 1
FOOTREST COMP. 2
$125.79
You save $22.20

5
Yamaha Motors
FRAME CONNECTION8CR-W2195-03-00
Required: 1
FRAME CONNECTION KIT
Supersedes: 8CR-W2195-02-00
$242.24
You save $42.75

6
Yamaha Motors
MAIN TRACK BRACKET8CR-21943-01-00
Required: 2
.BRACKET, MAIN TRACK 1
Supersedes: 8CR-21943-00-00
$3.57
You save $0.63

7
Yamaha Motors
MAIN TRACK SUSPENSION BRACKET8CR-21953-00-00
Required: 2
.BRACKET, MAIN TRACK 2
$1.78
You save $0.32
$6.79
You save $1.20

9
Yamaha Motors
Reinforce Housing Sub Assembly8CR-21920-00-00
Required: 1
.HOUSING, REINF SUB-ASSY (L.H)
$13.59
You save $2.40

10
Yamaha Motors
Chain Housing Bracket8CR-21939-01-00
Required: 3
.BRACKET, CHAIN HOUSING
Supersedes: 8CR-21939-00-00
$5.52
You save $0.97

11
Yamaha Motors
CLAMP. FUEL PIPE8CR-21977-00-00
Required: 2
.CLAMP, FUEL PIPE
$3.32
You save $0.58

12
Yamaha Motors
SUBFRAME PANEL 68CR-21917-00-00
Required: 1
.PANEL, SUB FRAME 6
$21.24
You save $3.75

13
Yamaha Motors
SUBFRAME PANEL8CR-21918-00-00
Required: 1
.PANEL, SUB-FRAME 7
$21.24
You save $3.75

14
Yamaha Motors
Blind Rivet90267-48016-00
Required: 4
.RIVET, BLIND
Supersedes: 90267-48176-00
$9.77
You save $1.72
$56.94
You save $10.05

16
Yamaha Motors
Blind Rivet90267-47186-00
Required: 1
.RIVET, BLIND
$2.72
You save $0.48
$16.57
You save $2.92

18
Yamaha Motors
Clamp90461-08113-00
Required: 2
.CLAMP
Supersedes: 90461-05003-00
$10.62
You save $1.87
$8.49
You save $1.50

20
Yamaha Motors
Clamp90462-10236-00
Required: 1
.CLAMP
Supersedes: 90462-05059-00
$9.77
You save $1.72
$8.92
You save $1.57

22
Yamaha Motors
Pivot Pipe8DF-21941-00-00
Required: 1
PIPE, PIVOT 1
$47.59
You save $8.40
$51.84
You save $9.15
$4.67
You save $0.82
$23.79
You save $4.20

26
Yamaha Motors
STEERING BRACKET PLATE8CR-2195E-00-00
Required: 2
PLATE, STRG BRACKET 1
$28.04
You save $4.95

27
Yamaha Motors
Blind Rivet90267-47197-00
Required: 10
RIVET, BLIND
Supersedes: 90267-48165-00
$2.21
You save $0.39

28
Yamaha Motors
Sub Frame Panel8CR-21912-01-00
Required: 1
PANEL, SUB FRAME 1
$159.79
You save $28.20

29
Yamaha Motors
Backup Plate8CR-23788-11-00
Required: 1
PLATE, BACK UP
$38.24
You save $6.75
$88.39
You save $15.60

31
Yamaha Motors
Frame Under8CR-2196A-03-00
Required: 1
FRAME UNDER 1
Supersedes: 8CR-2196A-01-00
$169.99
You save $30.00

32
Yamaha Motors
UNDER FRAME8CR-2196E-03-00
Required: 1
FRAME, UNDER 2
Supersedes: 8CR-2196E-01-00
$179.34
You save $31.65

33
Yamaha Motors
GUARD FIT BRACKET8CR-21972-00-00
Required: 1
BRACKET, GUARD FITTING
$5.94
You save $1.05

34
Yamaha Motors
Blind Rivet90267-48018-00
Required: 39
RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57
$9.77
You save $1.72
$2.13
You save $0.38

37
Yamaha Motors
FRONT BUMPER8CR-77512-00-00
Required: 1
BUMPER, FRONT 2
$82.44
You save $14.55
38
Yamaha Motors
Flange Bolt95817-08020-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-08020-00
In stock
Only 1 remaining
$8.92
You save $1.57

39
Yamaha Motors
Front Bracket8CR-21949-10-00
Required: 1
BRACKET, FRONT
$21.24
You save $3.75

40
Yamaha Motors
FRONT BUMPER BRACKET8CR-21959-10-00
Required: 1
BRACKET, FRONT BUMPER
$28.89
You save $5.10

41
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
$5.09
You save $0.90
43
Yamaha Motors
Flange Bolt95817-08040-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-08040-00
In stock
Only 2 remaining
$6.37
You save $1.12
$12.32
You save $2.17
$1.66
You save $0.29

46
Yamaha Motors
Clamp90465-06376-00
Required: 3
CLAMP
Supersedes: 90465-08146-00
$8.92
You save $1.57
$3.10
You save $0.55

48
Yamaha Motors
REINFORCEMENT8CR-21923-02-00
Required: 1
REINEFORCEMENT, FRAME REAR 1
$38.24
You save $6.75
$2.72
You save $0.48
$8.07
You save $1.42
$1.66
You save $0.29

52
Yamaha Motors
Blind Rivet90267-48018-00
Required: 8
RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57

53
Yamaha Motors
Frame Protector8CR-21978-00-00
Required: 1
PROTECTOR, FRAME
$22.94
You save $4.05

54
Yamaha Motors
FRAME PROTECTOR8CR-2197B-00-00
Required: 1
PROTECTOR, FRAME
$22.94
You save $4.05
$8.49
You save $1.50

56
Yamaha Motors
Blind Rivet90267-47186-00
Required: 3
RIVET, BLIND
Supersedes: 90267-48169-00
$2.72
You save $0.48
$8.07
You save $1.42

58
Yamaha Motors
Blind Rivet (81K)90267-40135-00
Required: 6
RIVET, BLIND
Supersedes: 90267-40069-00
$5.09
You save $0.90

59
Yamaha Motors
Frame Reinforcement8CR-21921-01-00
Required: 1
REINEFORCEMENT, FRAME REAR 1
$45.89
You save $8.10

60
Yamaha Motors
Flange Bolt95817-10020-00
Required: 6
BOLT, WASHER BASED
Supersedes: 90105-10617-00
In stock
Only 2 remaining
$8.07
You save $1.42

61
Yamaha Motors
BOLT95817-10065-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-10065-00
$5.52
You save $0.97
In stock
Only 3 remaining
$1.83
You save $0.32

63
Yamaha Motors
WASHER92907-10200-00
Required: 3
WASHER, PLAIN
$4.67
You save $0.82
$3.10
You save $0.55
$3.23
You save $0.57
$2.21
You save $0.39
$14.87
You save $2.62
$8.07
You save $1.42

69
Yamaha Motors
Spacer8DF-21998-10-00
Required: 1
SPACER
Supersedes: 8DF-21998-00-00
$26.34
You save $4.65

70
Yamaha Motors
Frame Protector8CS-2197C-00-00
Required: 1
PROTECTOR, FRAME 3
$12.74
You save $2.25

71
Yamaha Motors
Blind Rivet90267-48018-00
Required: 4
RIVET, BLIND
Supersedes: 90267-48141-00
$8.92
You save $1.57

72
Yamaha Motors
SHROUD LINING8CR-77261-00-00
Required: 1
LINING, SHROUD 1
$105.39
You save $18.60

73
Yamaha Motors
SHROUD LINING 28CR-77262-00-00
Required: 1
LINING, SHROUD 2
$28.89
You save $5.10

74
Yamaha Motors
Shroud Lining8CR-77263-00-00
Required: 1
LINING, SHROUD 3
$16.99
You save $3.00

75
Yamaha Motors
SHROUND LINING8CR-77264-00-00
Required: 1
LINING, SHROUD 4
$28.04
You save $4.95

76
Yamaha Motors
Shroud Lining8CR-77265-00-00
Required: 1
LINING, SHROUD 5
$14.87
You save $2.62

77
Yamaha Motors
Shroud Lining8CR-77266-00-00
Required: 1
LINING, SHROUD 6
$11.04
You save $1.95

78
Yamaha Motors
SHROUD LINING8CR-77267-01-00
Required: 1
LINING, SHROUD 7
$28.04
You save $4.95

79
Yamaha Motors
Shroud Lining8CR-77268-00-00
Required: 1
LINING, SHROUD 8
$21.24
You save $3.75

80
Yamaha Motors
Shroud Lining8CR-77269-00-00
Required: 1
LINING, SHROUD 9
$79.04
You save $13.95

81
Yamaha Motors
Damper Noise8CR-77271-00-00
Required: 1
DAMPER, NOISE 11
$27.19
You save $4.80
$7.64
You save $1.35
$2.42
You save $0.43
$56.94
You save $10.05
$52.69
You save $9.30
$22.09
You save $3.90

87
Yamaha Motors
WARNING LABEL 28CY-77762-00-00
Required: 1
LABEL, WARNING 2
$20.39
You save $3.60

88
Yamaha Motors
SUB FRAME PANEL KIT8CW-W2196-02-00
Required: 1
PANEL, SUB-FRAME KIT
$384.19
You save $67.80

89
Yamaha Motors
SUB FRAME PANEL8CW-21916-02-00
Required: 1
.PANEL, SUB FRAME 5
$244.79
You save $43.20

90
Yamaha Motors
MAIN TRACK SUSPENSIN BRACKET8CW-21943-00-00
Required: 2
.BRACKET, MAIN TRACK 1
$4.12
You save $0.73
$37.39
You save $6.60
$37.39
You save $6.60

93
Yamaha Motors
Blind Rivet90267-47186-00
Required: 70
.RIVET, BLIND
$2.72
You save $0.48
$2.21
You save $0.39
$2.72
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
