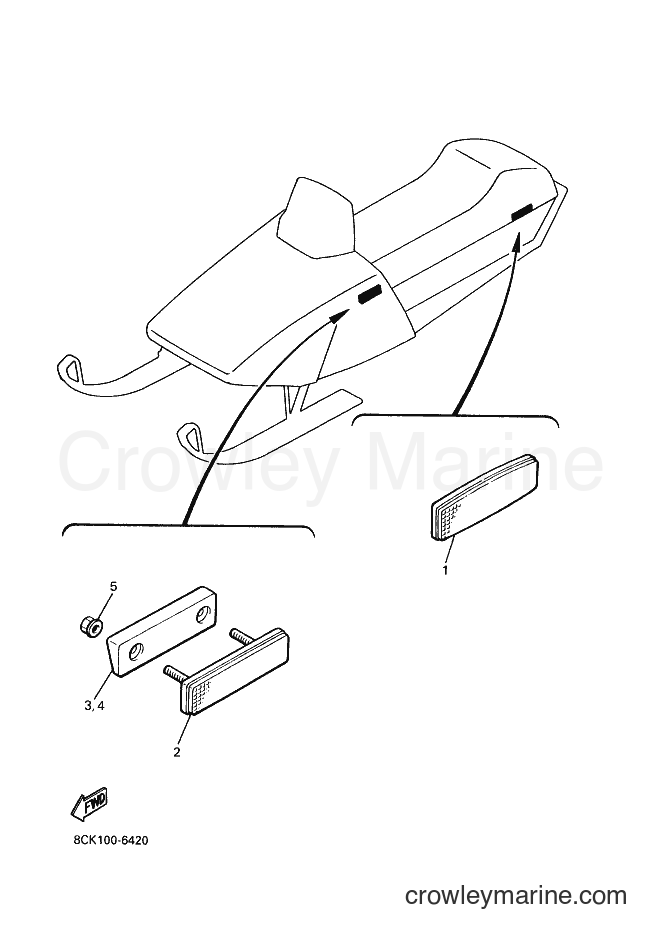

Yamaha Motors VT480TR (8CK3) [030] - ELECTRICAL 3
Change View:
REAR REFLECTOR ASSEMBLY
1
Yamaha Motors
REAR REFLECTOR ASSEMBLY81G-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
FRONT REFLECTOR
2
Yamaha Motors
FRONT REFLECTOR81E-85110-00-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Reflector Base
3
Yamaha Motors
Reflector Base87K-8511E-00-00
Required: 1
BASE,REFLECTOR 2
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
Reflector Base
4
Yamaha Motors
Reflector Base87K-8511F-00-00
Required: 1
BASE, REFLECTOR 3
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
Flange Nut
5
Yamaha Motors
Flange Nut95707-05500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
