1997 Snowmobile CS340E - CS340E (8BE4) [020] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

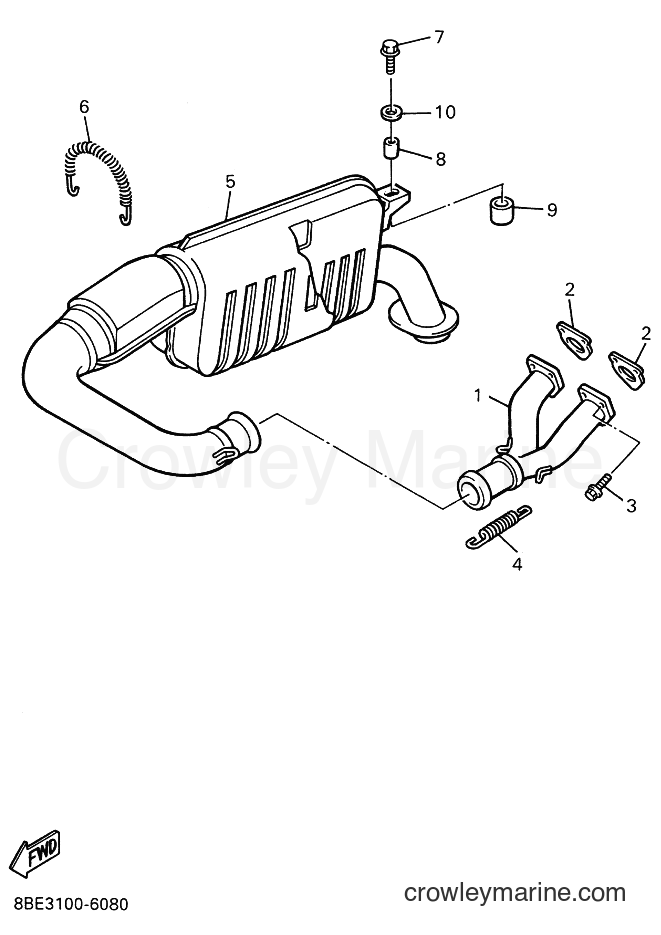

Yamaha Motors CS340E (8BE4) [020] - EXHAUST
Change View:
Exhaust Pipe Assembly
1
Yamaha Motors
Exhaust Pipe Assembly8G8-14610-00-00
Required: 1
EXHAUST PIPE ASSY 1
Cross Ship
Leaves in 2-5 days
$130.99
$111.34
You save $19.65
More details
EXHAUST PIPE GASKET
2
Yamaha Motors
EXHAUST PIPE GASKET8G8-14613-01-00
Required: 2
GASKET, EXHAUST PIPE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
MUFFLER ASSEMBLY
5
Yamaha Motors
MUFFLER ASSEMBLY87D-14710-00-00
Required: 1
MUFFLER ASSY 1
Cross Ship
Leaves in 2-5 days
$521.99
$443.69
You save $78.30
More details
TENSION SPRING
6
Yamaha Motors
TENSION SPRING90506-16436-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$3.39
$2.88
You save $0.51
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-08030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
DOWEL PIN (J38)
8
Yamaha Motors
DOWEL PIN (J38)91812-16001-00
Required: 1
COLLAR
Supersedes: 90387-08778-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Muffler Damper
9
Yamaha Motors
Muffler Damper8G8-14747-00-00
Required: 1
DAMPER, MUFFLER
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Washer Plate 8AT
10
Yamaha Motors
Washer Plate 8AT90201-081R9-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
