1997 Snowmobile BR250L - BR250L (8BC4) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

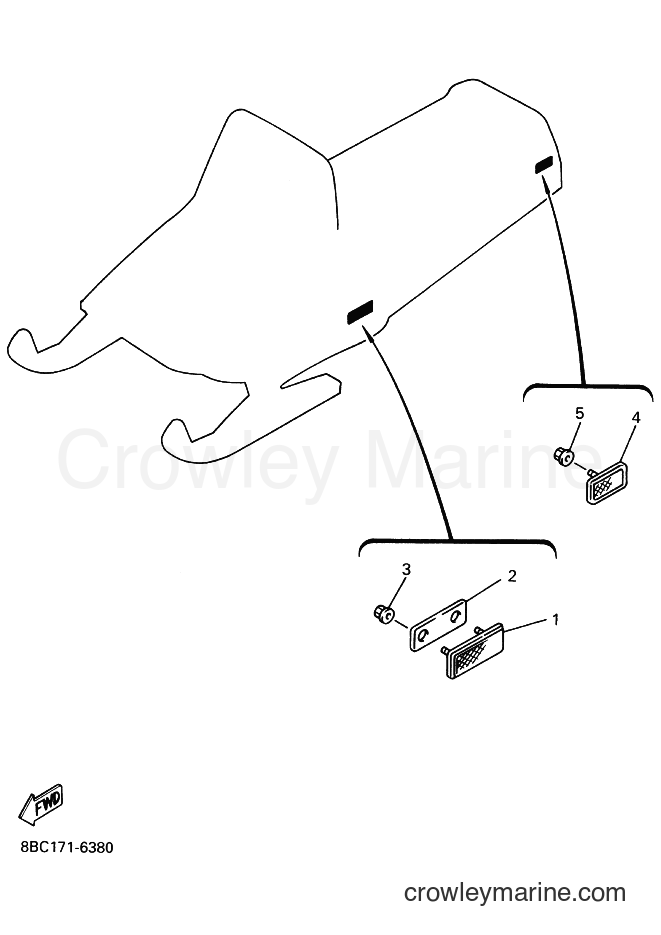

Yamaha Motors BR250L (8BC4) [010] - ELECTRICAL 2
Change View:
FRONT,REFLECT. ASY
1
Yamaha Motors
FRONT,REFLECT. ASY86R-85110-00-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
Reflector Base
2
Yamaha Motors
Reflector Base80F-85115-00-00
Required: 2
BASE, REFLECTOR
Cross Ship
Leaves in 2-5 days
$13.99
$11.89
You save $2.10
More details
Flange Nut
3
Yamaha Motors
Flange Nut95707-05500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3Y6-85130-01-00
4
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
Flange Nut
5
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
