1996 Snowmobile VT480 - VT480 (8BK3) [020] STEERING GATE diagram

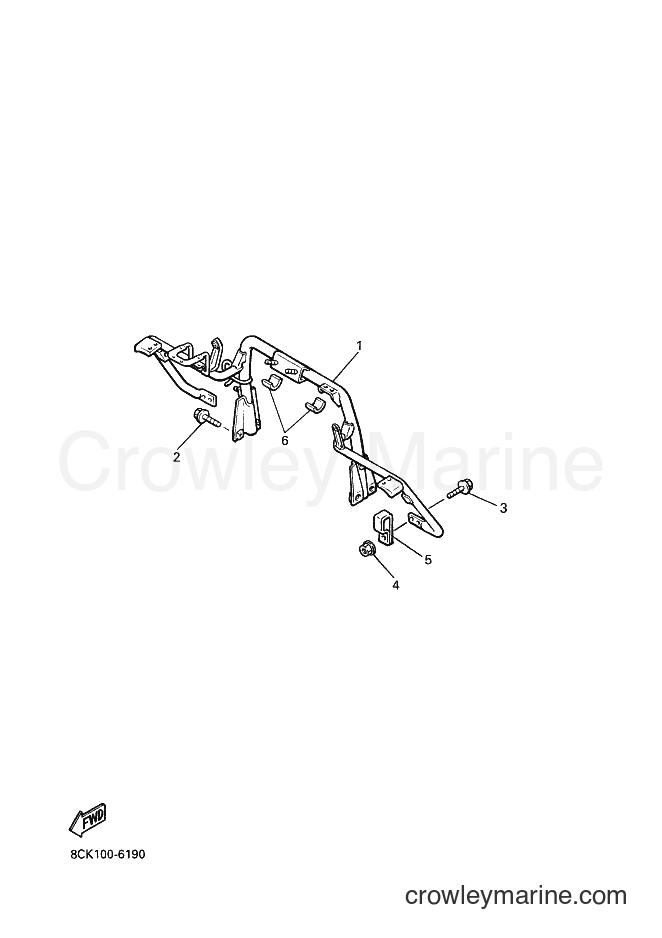

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors VT480 (8BK3) [020] - STEERING GATE

Change View:

Yamaha Motors

Steering Gate8BK-23870-00-00

Required: 1

STEERING GATE COMP.

~~$688.99~~

$585.64

You save $103.35

More details

Yamaha Motors

Flange Bolt95817-08012-00

Required: 4

BOLT, FLANGE

In stock

Only 1 remaining

~~$5.49~~

$4.67

You save $0.82

More details

Yamaha Motors

Flange Bolt95817-06030-00

Required: 4

BOLT, FLANGE

~~$4.65~~

$3.95

You save $0.70

More details

Yamaha Motors

Flange Nut95707-06300-00

Required: 4

NUT, FLANGE

~~$3.75~~

$3.19

You save $0.56

CLAMP

~~$1.65~~

$1.40

You save $0.25

More details

Yamaha Motors

Spacer8V0-23858-00-00

Required: 2

SPACER

~~$2.80~~

$2.38

You save $0.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
