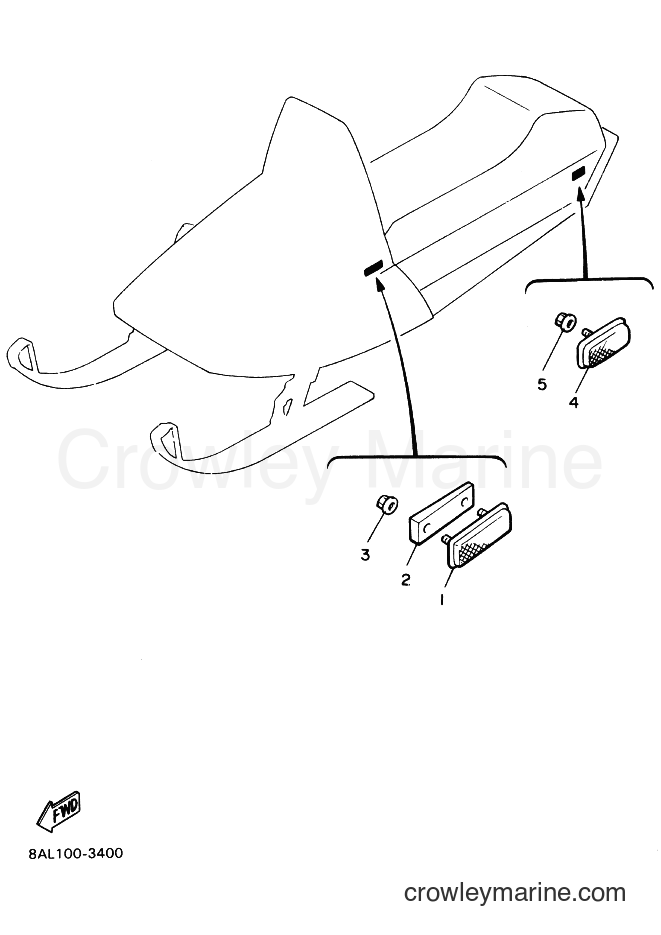

Yamaha Motors PZ480 (8BF3) [020] - ELECTRICAL 2
Change View:
FRONT REFLECTOR
1
Yamaha Motors
FRONT REFLECTOR81E-85110-00-00
Required: 2
REFLECTOR ASSY
Supersedes: 80E-85110-00-00
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Reflector Base
2
Yamaha Motors
Reflector Base80E-85115-00-00
Required: 2
BASE, REFLECTOR
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
Flange Nut
3
Yamaha Motors
Flange Nut95707-05500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3Y6-85130-01-00
4
Yamaha Motors
3Y6-85130-01-003Y6-85130-00-00
Required: 2
REAR REFLECTOR ASSY
Supersedes: 3Y6-85130-02-00
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
Flange Nut
5
Yamaha Motors
Flange Nut95707-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
