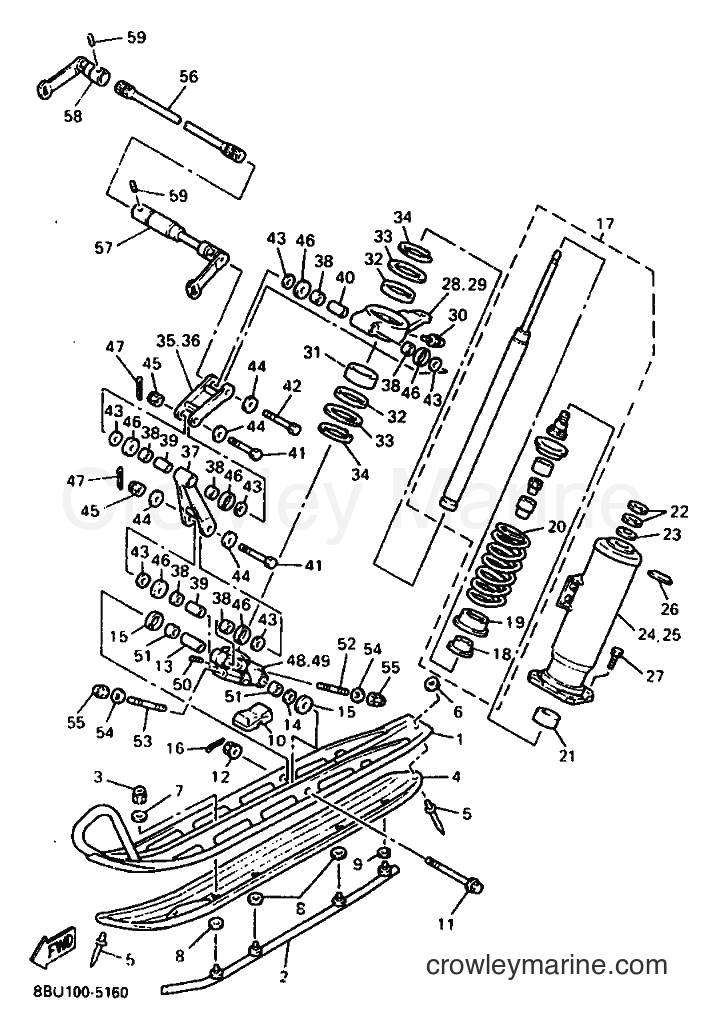

1995 Snowmobile VX800 - VX800 (8BU1) [999] SKI diagram

1
Yamaha Motors
Ski8AX-23710-00-00
Required: 2
SKI COMP. 1
$524.44
You save $92.55
$189.54
You save $33.45

3
Yamaha Motors
LOCK NUT95717-08300-00
Required: 8
NUT, FLANGE
Supersedes: 95707-08300-00
$2.59
You save $0.46
$109.64
You save $19.35
$7.22
You save $1.27

6
Yamaha Motors
Plain Washer 90201-04325-00
Required: 2
WASHER, PLATE
$1.02
You save $0.18

7
Yamaha Motors
Plate Washer90201-08326-00
Required: 8
WASHER, PLATE
$8.07
You save $1.42

8
Yamaha Motors
Plate Washer90201-08455-00
Required: 6
WASHER, PLATE
Supersedes: 90201-08451-00
$4.67
You save $0.82

9
Yamaha Motors
Plate Washer90201-08085-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57
$13.17
You save $2.32
11
Yamaha Motors
Washer Based Bolt90105-10712-00
Required: 2
BOLT, WASHER BASED
$11.04
You save $1.95
12
Yamaha Motors
Self-Locking Nut95607-10200-00
Required: 2
NUT, SELF-LOCKING
In stock
5+ in stock
$3.53
You save $0.62
$9.34
You save $1.65

14
Yamaha Motors
Plate Washer90201-146R1-00
Required: 2
WASHER, PLATE
$2.29
You save $0.41
$14.44
You save $2.55

16
Yamaha Motors
Cotter Pin91490-20025-00
Required: 2
PIN, COTTER
Supersedes: 91490-20020-00
$1.69
You save $0.30

17
Yamaha Motors
DAMPER SUB-ASSEMBLY8BU-22401-00-00
Required: 2
DAMPER SUB ASSY
$599.24
You save $105.75

18
Yamaha Motors
UPPER SPRING SEAT87F-22213-00-00
Required: 1
. SEAT, SPRING UPPER
$9.34
You save $1.65

19
Yamaha Motors
Spring Seat8AX-23777-00-00
Required: 1
. SEAT, SPRING 2
$16.14
You save $2.85

20
Yamaha Motors
Compression Spring90501-825J0-00
Required: 1
. SPRING, COMPRESSION
$55.24
You save $9.75
$8.49
You save $1.50
$8.92
You save $1.57
$1.78
You save $0.32

24
Yamaha Motors
ABSORBER HOLDER8BU-2376J-00-00
Required: 1
HOLDER, ABSORBER
$192.94
You save $34.05

25
Yamaha Motors
Absorber Holder8BU-2377J-00-00
Required: 1
HOLDER, ABSORBER 2
$212.41
You save $37.48
$7.64
You save $1.35
$3.45
You save $0.61

28
Yamaha Motors
OUTSIDE ARM 189A-23851-00-00
Required: 1
ARM, OUTSIDE 1
$207.39
You save $36.60

29
Yamaha Motors
OUTSIDE ARM89A-23852-00-00
Required: 1
ARM, OUTSIDE 2
$207.39
You save $36.60

30
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 2
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24

31
Yamaha Motors
BIMETAL FROM BUSH90384-55227-00
Required: 2
BUSH, BIMETAL FORMED
$24.64
You save $4.35
$6.37
You save $1.12

33
Yamaha Motors
Plate Washer90201-555P9-00
Required: 4
WASHER, PLATE
$5.09
You save $0.90

33
Yamaha Motors
Plate Washer90201-555P8-00
Required: 4
WASHER, PLATE
$3.74
You save $0.66

34
Yamaha Motors
S -type Circlip99009-55400-00
Required: 4
CIRCLIP
Supersedes: 93410-55074-00
$5.52
You save $0.97
$126.64
You save $22.35
$122.39
You save $21.60
$126.64
You save $22.35

38
Yamaha Motors
UPPER STERING BEARING89A-23873-00-00
Required: 12
BEARING, STEERING UPPER
$39.09
You save $6.90
$27.19
You save $4.80
$10.19
You save $1.80

41
Yamaha Motors
BOLT,WITH HOLE90102-10077-00
Required: 4
BOLT, WITH HOLE
$11.04
You save $1.95
$5.52
You save $0.97
$5.52
You save $0.97

44
Yamaha Motors
Plate Washer90201-115A7-00
Required: 8
WASHER, PLATE
$2.51
You save $0.44

45
Yamaha Motors
Self-Locking Nut90185-10091-00
Required: 4
NUT, SELF-LOCKING
$8.92
You save $1.57
$9.77
You save $1.72

47
Yamaha Motors
Cotter Pin91490-20025-00
Required: 4
PIN, COTTER
Supersedes: 91490-20020-00
$1.69
You save $0.30
$285.59
You save $50.40
$269.44
You save $47.55

50
Yamaha Motors
Set Bolt90113-06039-00
Required: 2
BOLT, SET
Supersedes: 90113-06055-00
$8.92
You save $1.57

51
Yamaha Motors
BIMETAL FROM BUSH90384-14091-00
Required: 4
BUSH, BIMETAL FORMED
$10.62
You save $1.87
$5.52
You save $0.97
$5.52
You save $0.97

54
Yamaha Motors
WASHER92907-08600-00
Required: 4
WASHER, PLATE
$2.76
You save $0.49

55
Yamaha Motors
LOCK NUT95717-08300-00
Required: 4
NUT, FLANGE
Supersedes: 95707-08300-00
$2.59
You save $0.46

56
Yamaha Motors
Stabilizer Bar - Front8BU-2386E-00-00
Required: 1
BAR, STABILIZER FRONT
$185.29
You save $32.70

57
Yamaha Motors
STABILZER JOINT8BU-2385L-00-00
Required: 1
JOINT, STABILIZER 1
$273.69
You save $48.30

58
Yamaha Motors
STABILIZER JOINT8BU-2385M-00-00
Required: 1
JOINT, STABILIZER 2
Supersedes: 89A-2385M-00-00
$226.94
You save $40.05

59
Yamaha Motors
Set Bolt90113-06039-00
Required: 2
BOLT, SET
Supersedes: 90113-06055-00
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
