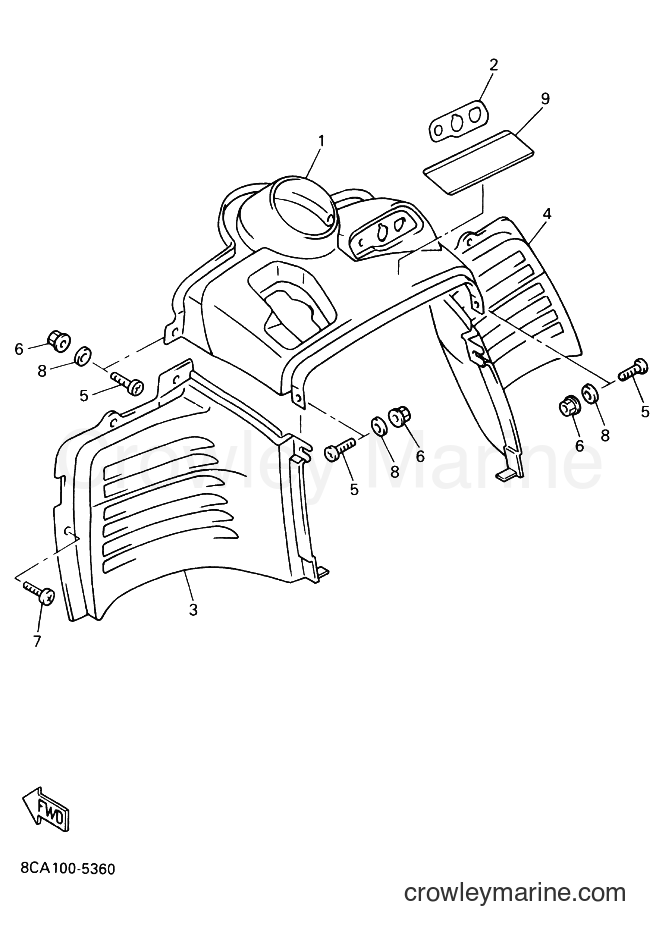

1995 Snowmobile VX500ST - VX500ST (8BR2) [010] INSTRUMENT PANEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX500ST (8BR2) [010] - INSTRUMENT PANEL
Change View:
1
Required: 1
PANEL, INSTRUMENT
Price unavailable
2
Required: 1
INDICATOR 1
Price unavailable
Louver
3
Yamaha Motors
Louver89A-77131-01-00
Required: 1
LOUVER 1
Cross Ship
Leaves in 2-5 days
$112.99
$96.04
You save $16.95
More details
Louver 2
4
Yamaha Motors
Louver 289A-77132-01-00
Required: 1
LOUVER 2
Cross Ship
Leaves in 2-5 days
$112.99
$96.04
You save $16.95
More details
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-06060-00
Required: 4
SCREW, WITH WASHER
Supersedes: 90159-06071-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Nut
6
Yamaha Motors
Flange Nut95707-06300-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Bind Screw
7
Yamaha Motors
Bind Screw98907-06012-00
Required: 4
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plate Washer
8
Yamaha Motors
Plate Washer90201-06057-00
Required: 4
WASHER, PLATE
Supersedes: 90201-06059-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 1
LABEL, WARNING 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
