1994 Snowmobile VX600 - VX600 (8CD1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

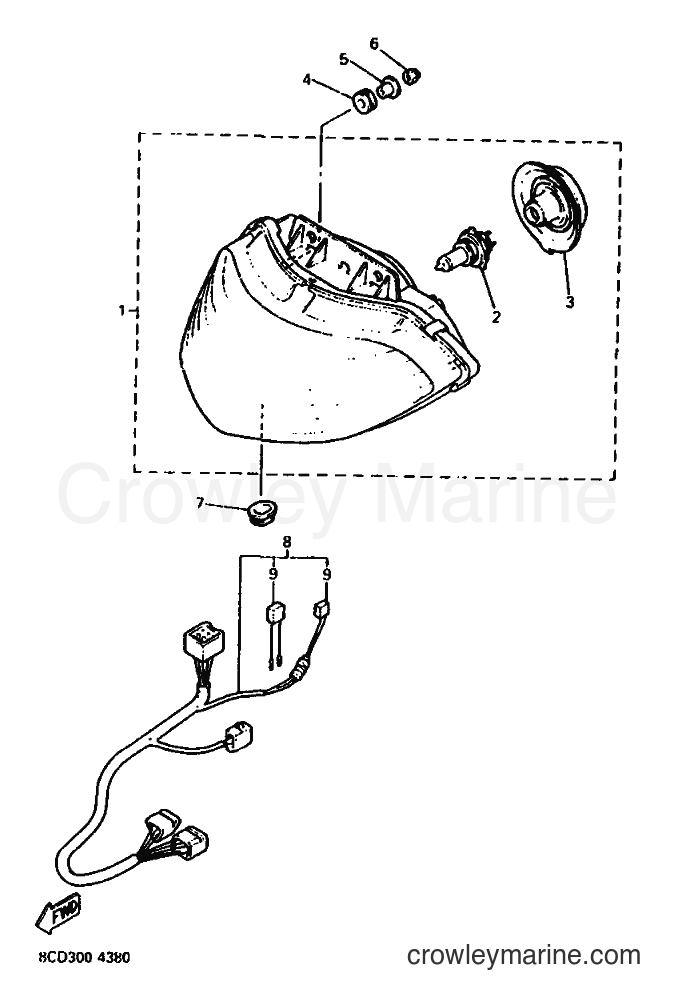

Yamaha Motors VX600 (8CD1) [010] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSEMBLY
1
Yamaha Motors
HEADLIGHT UNIT ASSEMBLY8AB-84310-01-00
Required: 1
HEADLIGHT UNIT ASSY
Supersedes: 8AB-84310-00-00
Cross Ship
Leaves in 2-5 days
$719.99
$611.99
You save $108.00
More details
Socket Cover
3
Yamaha Motors
Socket Cover89A-84397-00-00
Required: 1
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
Grommet
4
Yamaha Motors
Grommet90480-13163-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
COLLAR
5
Yamaha Motors
COLLAR90387-062L2-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GROMMET, WATER TUBE (UPPER)
7
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-01580-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
HEADLIGHT CORD
8
Yamaha Motors
HEADLIGHT CORD8AB-84359-10-00
Required: 1
CORD, HEADLIGHT
Supersedes: 8AB-84359-00-00
Cross Ship
Leaves in 2-5 days
$88.99
$75.64
You save $13.35
More details
CHECKER,PILOT LAMP
9
Yamaha Motors
CHECKER,PILOT LAMP38W-85774-00-00
Required: 2
. CHECKER, PILOT LAMP
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
