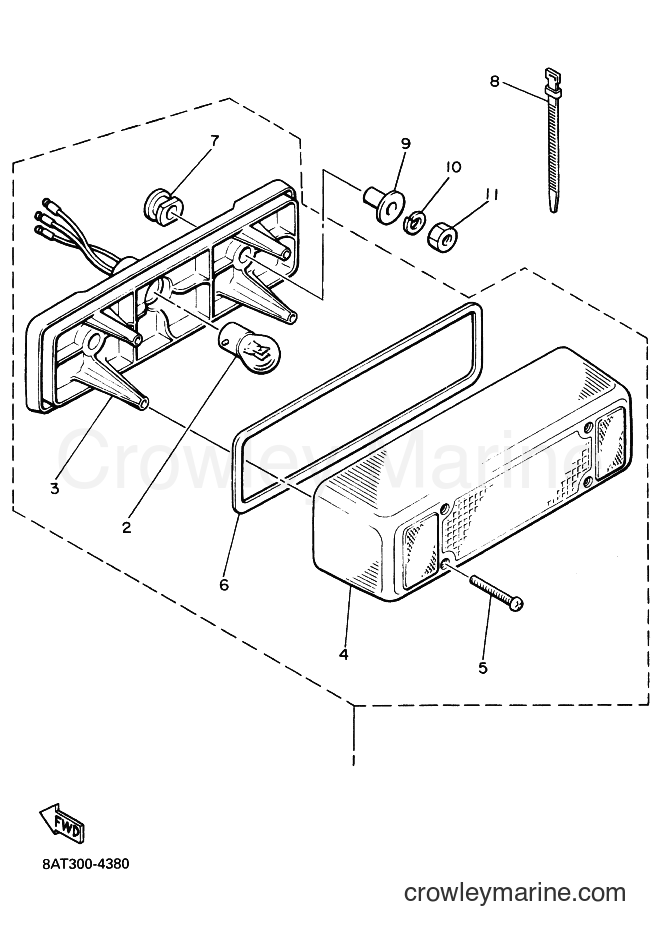

Yamaha Motors VK540E (8AT2) [010] - TAILLIGHT
Change View:
TAIL LIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY8K4-84710-01-00
Required: 1
TAILLIGHT UNIT ASSY
Supersedes: 8K4-84710-00-00
Cross Ship
Leaves in 2-5 days
$77.99
$66.29
You save $11.70
More details
BULB(12V32/3CP)1157
2
Yamaha Motors
BULB(12V32/3CP)1157137-84714-61-XX
Required: 1
. BULB
Supersedes: 137-84714-61-00
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
Taillight Base
3
Yamaha Motors
Taillight Base8K4-84711-01-00
Required: 1
. BASE, TAILLIGHT
Supersedes: 8K4-84711-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
Taillight Lens
4
Yamaha Motors
Taillight Lens8K4-84721-01-00
Required: 1
. LENS, TAILLIGHT
Supersedes: 8K4-84721-00-00
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
PAN HEAD SCREW
5
Yamaha Motors
PAN HEAD SCREW97780-40130-00
Required: 4
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Lens Gasket
6
Yamaha Motors
Lens Gasket3TJ-14457-00-00
Required: 1
. GASKET, TAIL LENS
Supersedes: 87M-84723-00-00
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
GROMMET, WATER TUBE (UPPER)
7
Yamaha Motors
GROMMET, WATER TUBE (UPPER)8K4-84718-00-00
Required: 2
. GROMMET
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
COLLAR
9
Yamaha Motors
COLLAR90387-060G8-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
