1994 Snowmobile PZ480 - PZ480 (8BF1) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

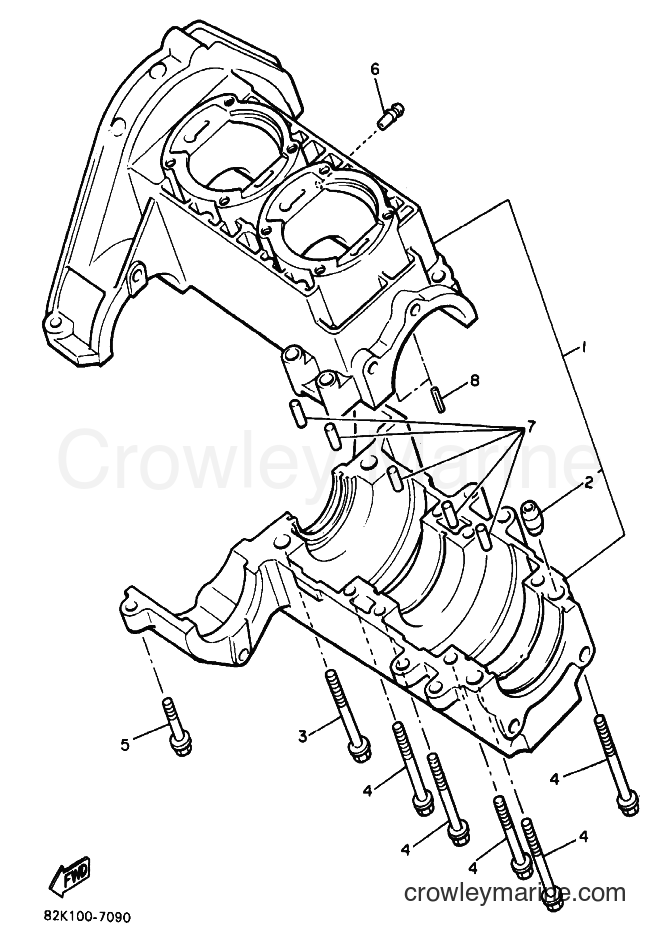

Yamaha Motors PZ480 (8BF1) [010] - CRANKCASE
Change View:
Crankcase Assembly
1
Yamaha Motors
Crankcase Assembly88T-15100-01-00
Required: 1
CRANKCASE ASSY
Supersedes: 8V0-15100-01-00
Cross Ship
Leaves in 2-5 days
$844.99
$718.24
You save $126.75
More details
Flange Bolt
3
Yamaha Motors
Flange Bolt95817-08070-00
Required: 1
BOLT, flange
Supersedes: 95811-08070-00
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95814-08065-00
Required: 9
BOLT, flange
Supersedes: 95811-08065-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
5
Yamaha Motors
Flange Bolt95812-06025-00
Required: 1
BOLT, flange
Supersedes: 95811-06025-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
Dowel Pin
7
Yamaha Motors
Dowel Pin93604-07141-00
Required: 5
PIN, dowel
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Spring Pin (80K)
8
Yamaha Motors
Spring Pin (80K)91609-30006-00
Required: 2
PIN, spring
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
