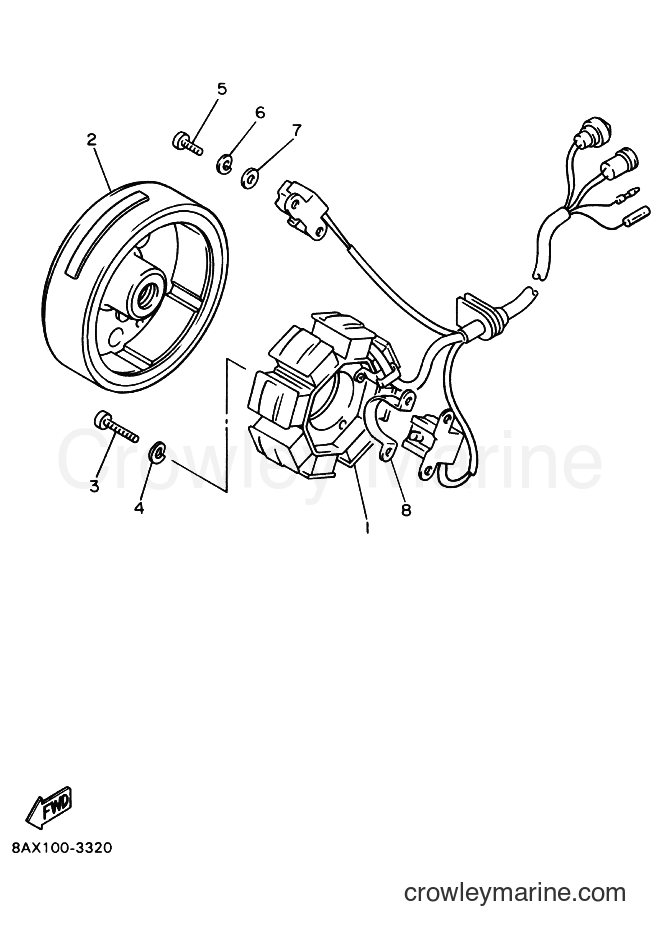

1993 Snowmobile VX750 - VX750 (8AX1) [040] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX750 (8AX1) [040] - GENERATOR
Change View:
Alternator Stator Assembly
1
Yamaha Motors
Alternator Stator Assembly89A-85510-01-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$685.99
$583.09
You save $102.90
More details
ROTOR ASSEMBLY
2
Yamaha Motors
ROTOR ASSEMBLY89A-85550-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$580.99
$493.84
You save $87.15
More details
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98501-06025-00
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
Spring Washer
6
Yamaha Motors
Spring Washer92907-05100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-05100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
7
Yamaha Motors
Plate Washer92907-05600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-05600-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Clamp
8
Yamaha Motors
Clamp90465-10360-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$30.48
$25.91
You save $4.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
